7.5 Dimensions, weights
Housing height 36.8mm
Nominal length 50…7620mm
Weight (depends on length) Approx.1.4kg/m
Housing material Aluminum
BTL7-…-KA__
Cable material PUR
cULus20549
80°C, 300V,
internal wiring
Cable temperature –40°C…+90°C
Cable diameter Max. 7mm
Permissible bending radius
Fixed routing ≥35mm
Movable ≥105mm
7.6 Connection to the evaluation unit
The maximum sampling frequency f
A,max
, at which a new
current value is available with each sampling, can be found
in the following graphic:

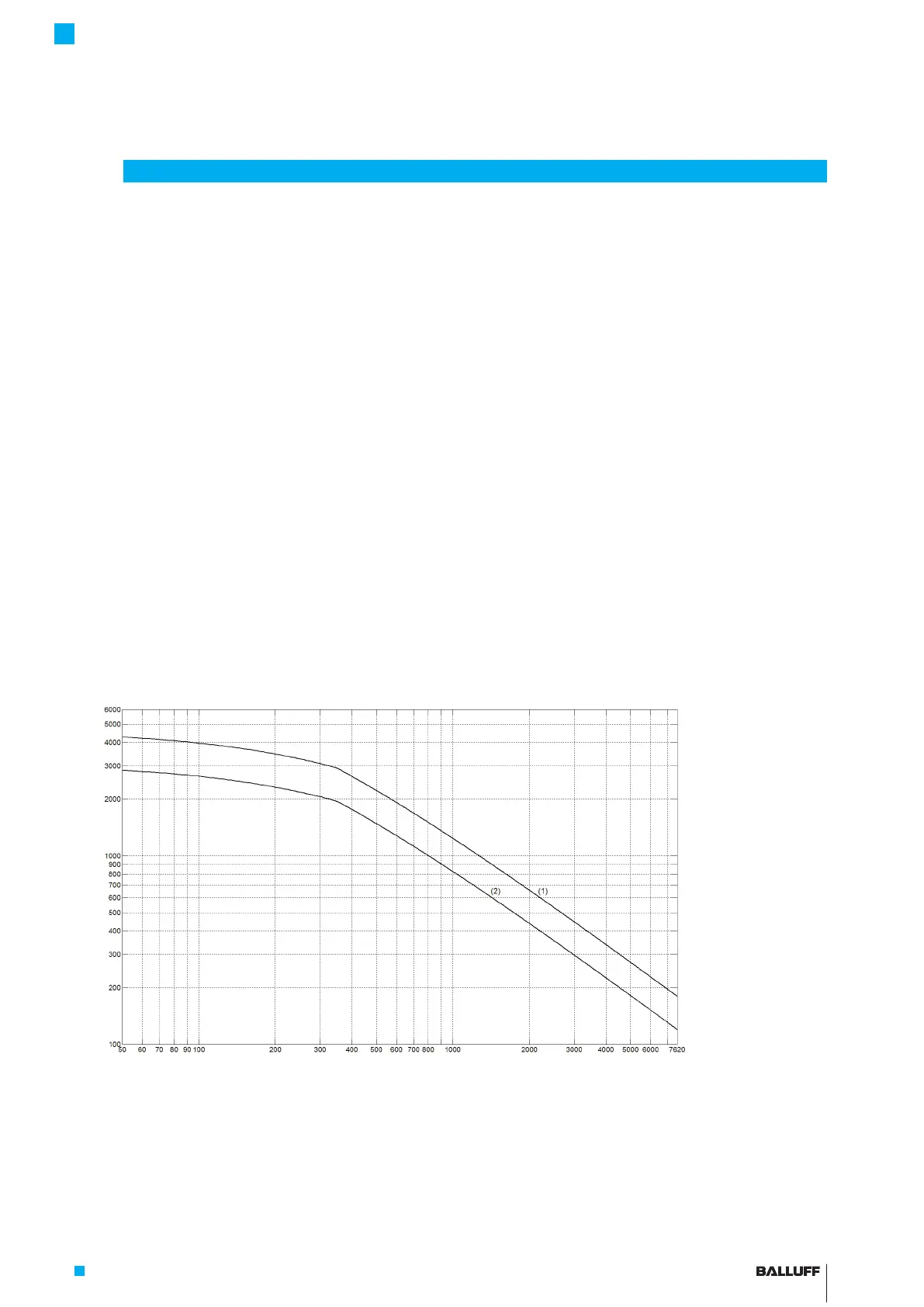

Fig. 7-1: Maximum sampling rate depending on the nominal length
f
A,max
in Hz
Nominal length in mm
(1) 1 magnet
(2) 2 to 16 magnets
7
Technical data (continued)
The minimum sampling frequency f
A,min
is 62,5 Hz.
BTL7-P511 -M ____ -P-S32/S115/KA_ _
Micropulse Transducer in a Profile Housing
