SC22-3 Safety Controller
Instruction Manual
Components and Specifications
Product Performance
Standards
• SIL 3 per IEC 62061 Safety of Machinery – Functional Safety of Safety-Related Electrical, Electronic and
Programmable Electronic Control Systems.
• SIL 3 per IEC 61508 Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related
Systems
• Category 4 per ISO 13849-1 (EN954-1) Safety of Machinery. Safety Related Parts of Control Systems
• Performance Level (PL) e per ISO 13849-1
• IEC 61131-2 Programmable Controllers, Part 2: Equipment Requirements and Tests
• UL 508 Industrial Control Equipment
• UL 1998 Software in Programmable Components
• ANSI NFPA 79 Electrical Standards for Industrial Machinery
• IEC 60204-1 Electrical Equipment of Machines: General Requirements
• EN 954-1 Safety of Machinery. Safety Related Parts of Control Systems. General Principles.
• ISO 13851 (EN574) Safety of Machinery – Two-Hand Control Devices – Functional Aspects and Design
Principles
• ISO 13850 (EN418) Emergency Stop Devices
Also see inside back cover for a list of other applicable U.S. and International Standards.
2.2 Specifications, continued

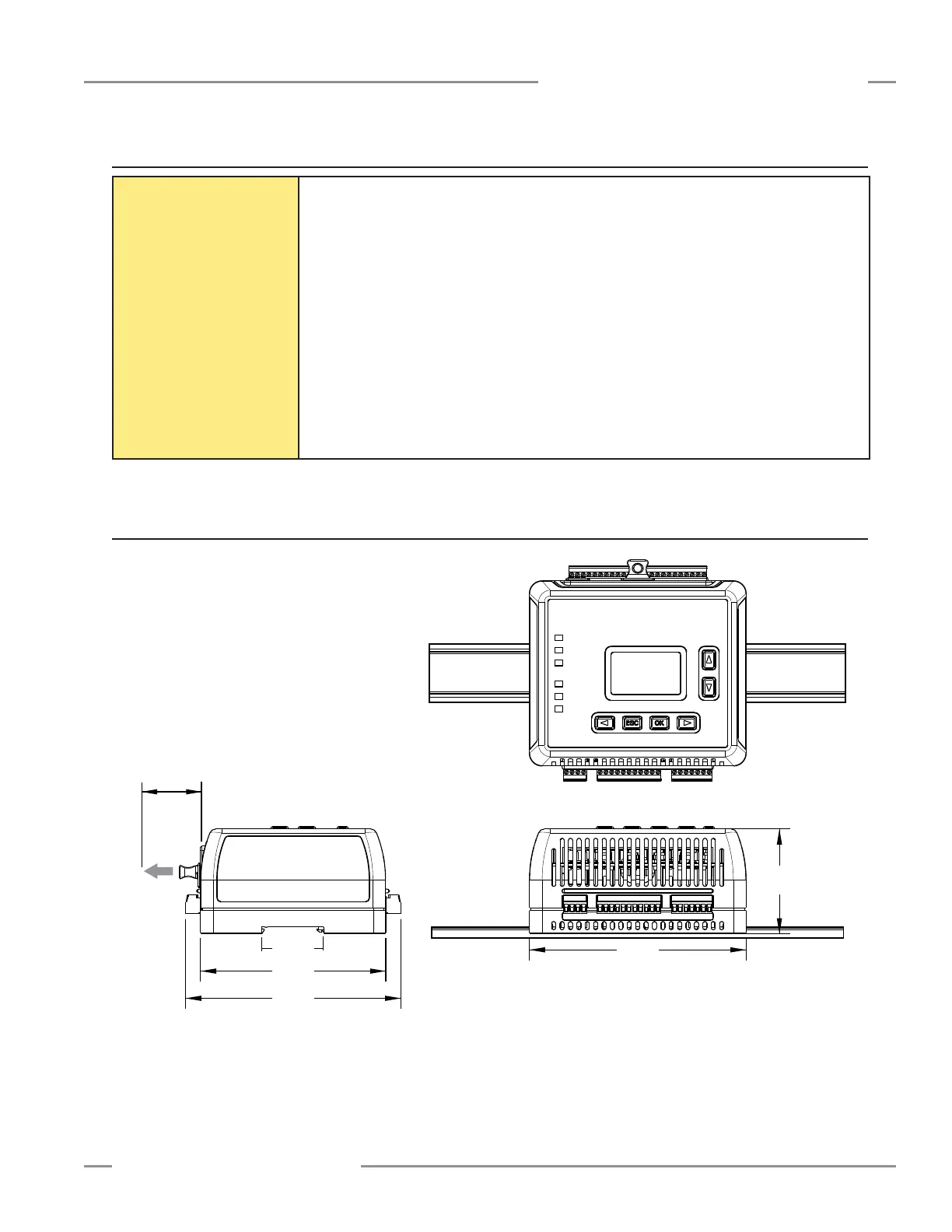

2.3 Dimensions
64 mm
(2.5")
131 mm
(5.2")
112 mm
(4.4")
130 mm
(5.1")
35 mm
(1.4")
Allow minimum 65 mm (2.6")
clearance for USB cable and
43 mm (1.7") for XM Card insertion
