Configuration — Onboard Interface
5.4.1 Name Configuration
The first property of the configuration that can be changed is the
name.
• Use the left/right arrows to select the character position. Up
to 16 characters are possible.
• Use the up/down arrows to select the character for each
position (choices A-Z, 0-9, -, +, or space).
• When the configuration name is entered, press OK.

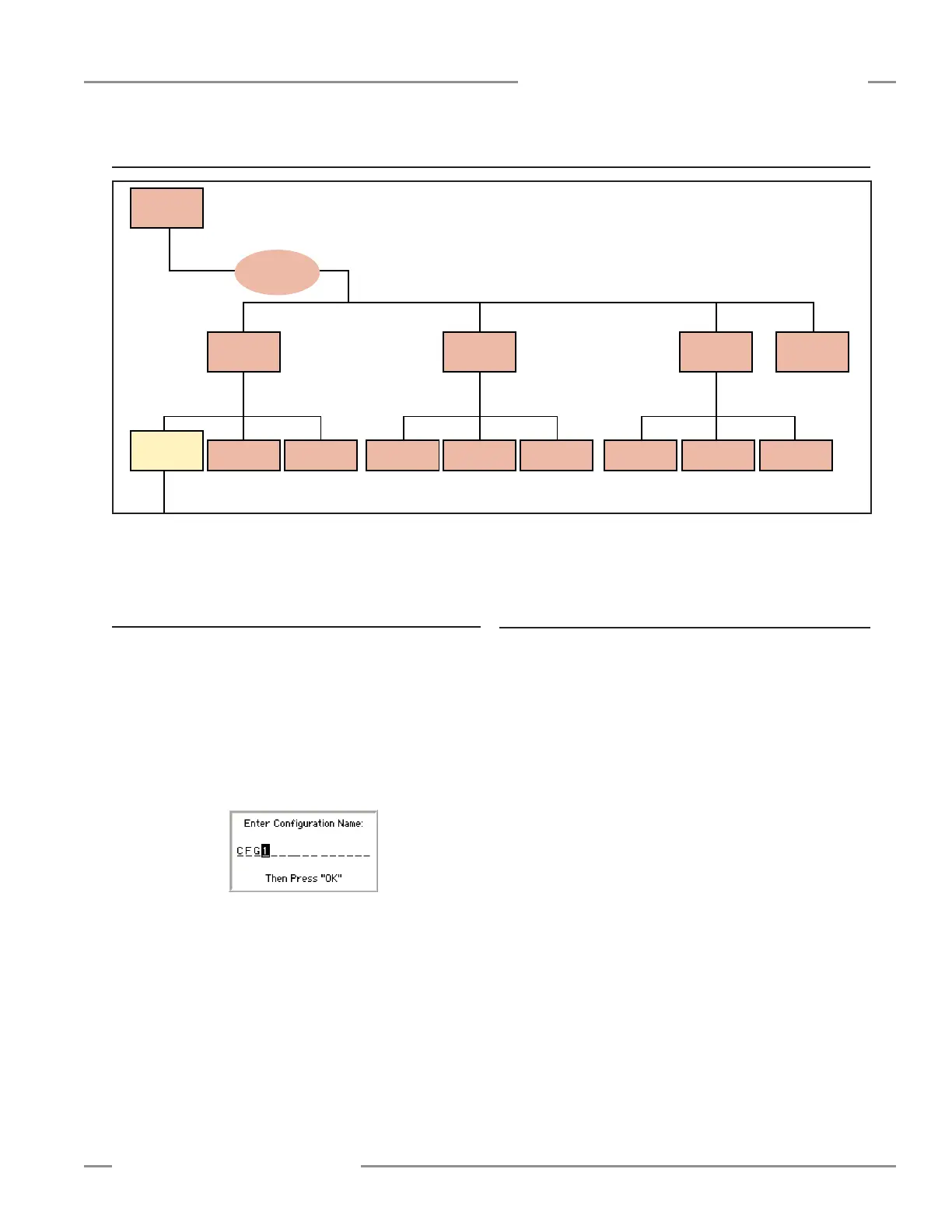

Figure 5-4. OBI Configuration mode options
System
Settings
Terminal
Assignments
Input/Output
Mapping
Status Output
Settings
Status
Outputs
Safety
Outputs
Edit
Configuration
(Section 5.4)
Edit
Input
Delete
Input
Inputs
(Section 5.4.2)
Outputs/System
Settings
(Section 5.4.3)
Configuration
Summary
(Section 5.4.4)
← OK ESC →
← OK ESC → ← OK ESC → ← OK ESC →
← OK ESC →
Add Input
(Section 5.5)
Save
Configuration
(Section 5.4.5)
Name
Configuration
(Section 5.4.1)
5.4 Edit Configuration
5.4.2 Inputs
Add Input — Select this option to add either a safety or non-
safety input device. See Section 5.5 for the procedure.
Delete Input — This option is used to remove a previously
added input device from the configuration. A screen will appear
with all of the previously configured inputs; use the left/right
arrows to select a device and press OK. A screen will ask
whether you really intend to delete this input; select Yes and
press OK. If you select No, the screen will return to select a
different input to delete. To return to the Inputs menu, press
ESC. If you select Yes, you are asked whether you want to
delete another input.
Edit Input — This option is used to edit a previously configured
input device in the configuration. A screen will appear with all
of the previously configured inputs; use the left/right arrows to
select a device and press OK. A series of screens will appear,
with the device’s properties; select each property (in the same
way used to define the input initially; see Section 5.5), and press
OK.
The Inputs screen also reappears when ESC is pressed after
all of the required inputs have been added. Press ESC when the
Inputs menu reappears, to return to the Edit Configuration menu.
