SC22-3 Safety Controller
Instruction Manual
Appendix A

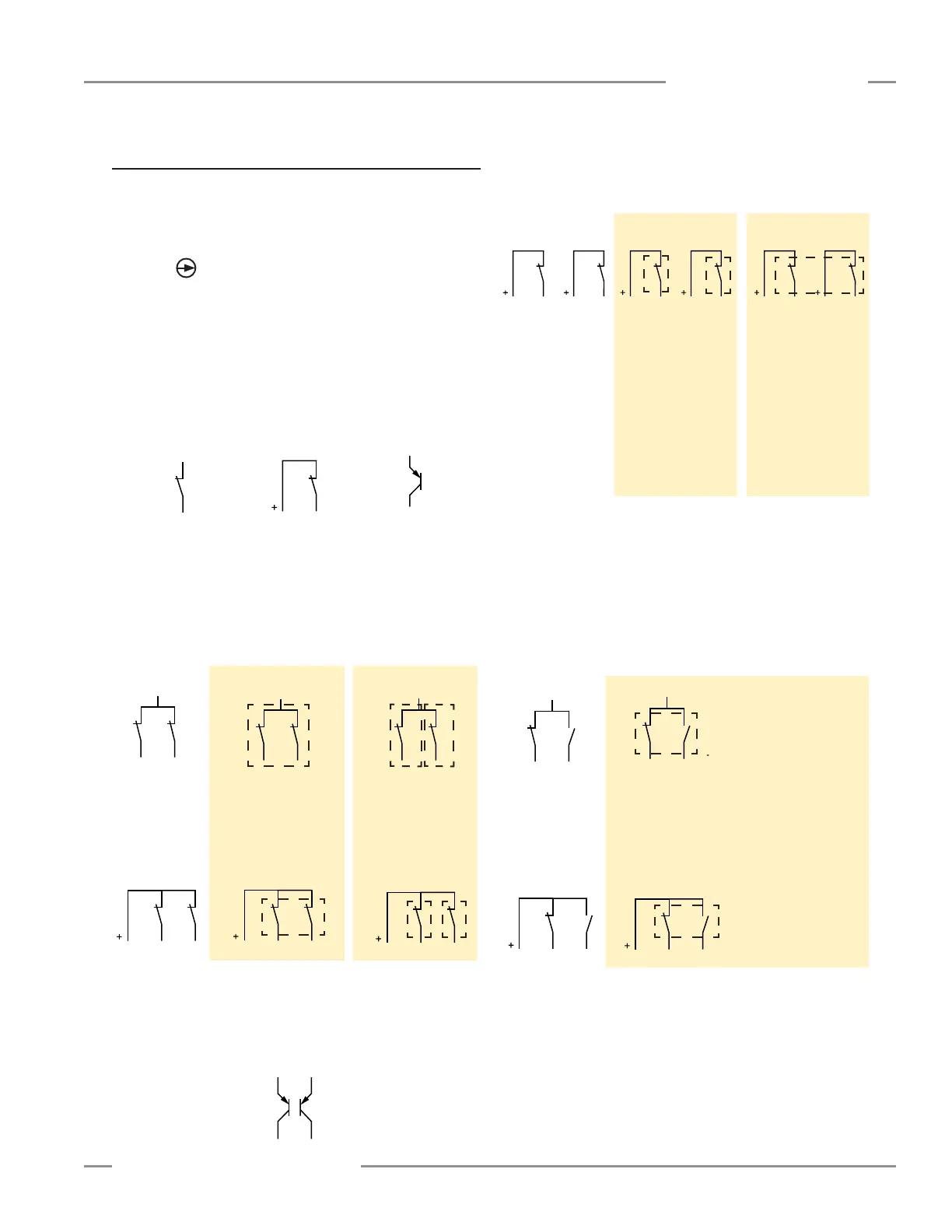

A.3.2 SC22-3 Interlock Switch Hookup Options
NOTE: All figures are shown with the gate (guard) in the closed,
or Run, state. The safety contact is considered to be
the normally closed contact that is of a positive-opening
design (unless otherwise noted), normally marked with
the symbol.
Single-Channel (1 terminal, 2 terminals, or PNP device):
These circuits can typically meet ISO 13849-1 Category 2
requirements, depending on the design and installation of the
switch. At a minimum, the switch must be a safety-rated device
to achieve a Category 2 level. The 1-terminal and the PNP
device can not detect a short circuit to another source of power.
2-terminal hookup uses pulse monitoring and can detect a short
circuit to another source of power. Fault Exclusion must be used
to achieve a higher level of safety circuit integrity.
2-Ch, 2 Terminal
PNP
24V
Rope Pull - Single Channel
1-Ch.
1 Terminal
1-Ch.
2 Terminals
1-Ch.
1 Term, PNP
Rope Pull - Dual Channel
2-Ch, 2 Terminals 2-Ch, 3 Terminals 2-Ch, 4 Terminals
24V
Rope Pull - Dual Channel Complementary
Complementary,
2 Terminals
Complementary,
3 Terminals
Complementary,
2 Terminals, PNP
24V
Revision History
1-Aug-2007 Protective Stop was removed from this document and is with the Optical Sensor document
ONON
OFFON
2-Ch, 2 Terminal
PNP
24V
Rope Pull - Single Channel
1-Ch.
1 Terminal
1-Ch.
2 Terminals
1-Ch.
1 Term, PNP
Rope Pull - Dual Channel
2-Ch, 2 Terminals 2-Ch, 3 Terminals 2-Ch, 4 Terminals
24V
Rope Pull - Dual Channel Complementary
Complementary,
2 Terminals
Complementary,
3 Terminals
Complementary,
2 Terminals, PNP
24V
Revision History
1-Aug-2007 Protective Stop was removed from this document and is with the Optical Sensor document
ONON
OFFON
2-Ch, 2 Terminal
PNP
24V
Rope Pull - Single Channel
1-Ch.
1 Terminal
1-Ch.
2 Terminals
1-Ch.
1 Term, PNP
Rope Pull - Dual Channel
2-Ch, 2 Terminals 2-Ch, 3 Terminals 2-Ch, 4 Terminals
24V
Rope Pull - Dual Channel Complementary
Complementary,
2 Terminals
Complementary,
3 Terminals
Complementary,
2 Terminals, PNP
24V
Revision History
1-Aug-2007 Protective Stop was removed from this document and is with the Optical Sensor document
ONON
OFFON
Dual-Channel (2 terminals or 3 terminals): This circuit typically
can meet ISO 13849-1 category 2 or category 3 requirements,
depending on the design and installation of the switch(es). Dual-
channel 3-terminal hookup uses pulse monitoring and can detect
a short circuit to another source of power. Both 2- and 3-terminal
hookups can detect a short between channels if the contacts are
open longer than 2 seconds.
2-Ch, 2 Terminal
PNP
24V
Gate Switches - Single Channel
1-Ch.
1 Terminal
1-Ch.
2 Terminals
1-Ch.
1 Term, PNP
Gate Switches - Dual Channel
2-Ch, 2 Terminals 2-Ch, 3 Terminals 2-Ch, 4 Terminals
24V
Gate Switches - Dual Channel Complementary
Complementary,
2 Terminals
Complementary,
3 Terminals
Complementary,
2 Terminals, PNP
24V
Gate Switches - 2x Dual Channel Complementary
2x Complementary,
4 Terminals
2x Complementary,
5 Terminals
2x Complementary,
4 Terminals, PNP
24V
Rev C - Corrected “OFF” and “ON” on Two-hand Operation - 2x Dual Channel Complementary, 2x Complementary, 4 Terminals, 4 PNP
