R5900022-09 ClickShare CS-100 29
When plugging in the Button into the Base Unit, the Button is paired to the Base Unit. The Base Unit checks
whether the Button's software and firmware are up to date. If not, the Base Unit updates the software and/or
firmware.
To update the Base Unit software, download the latest version of the software from the Barco website. Copy
the file on a USB stick and plug it into the USB port of the Base Unit. Follow the progress and instructions on
the display.
Status LED ring
The color of the LED at the front of the Base Unit give information on the status of the system.
LEDs behavior Explanation
static red • receiving content from the Buttons and streaming towards the
display.
• pairing and software update of the Button is done. You can now
unplug the Button from the Base Unit.
• during the first phase of the Base Unit boot process.
blinking white • system is starting up (during the second phase)
• Button pairing is in progress
• software update of the Base Unit
breathing white • ECO standby mode
static white • awake and ready (i.e. showing the welcome message on the
display)
• pairing is done
red blinking • an error occurred
dark • deep standby/off
Power button
The button at the front of the Base Unit has a standby function once the Base unit is powered
• When the system is in normal operational mode, a push makes the system goes to the predefined standby
mode.
• When the system is in standby mode, a push triggers the system to start up and it goes to the normal
operational mode.
Back layout of the Base Unit
The connection panel is situated at the back of the Base unit.

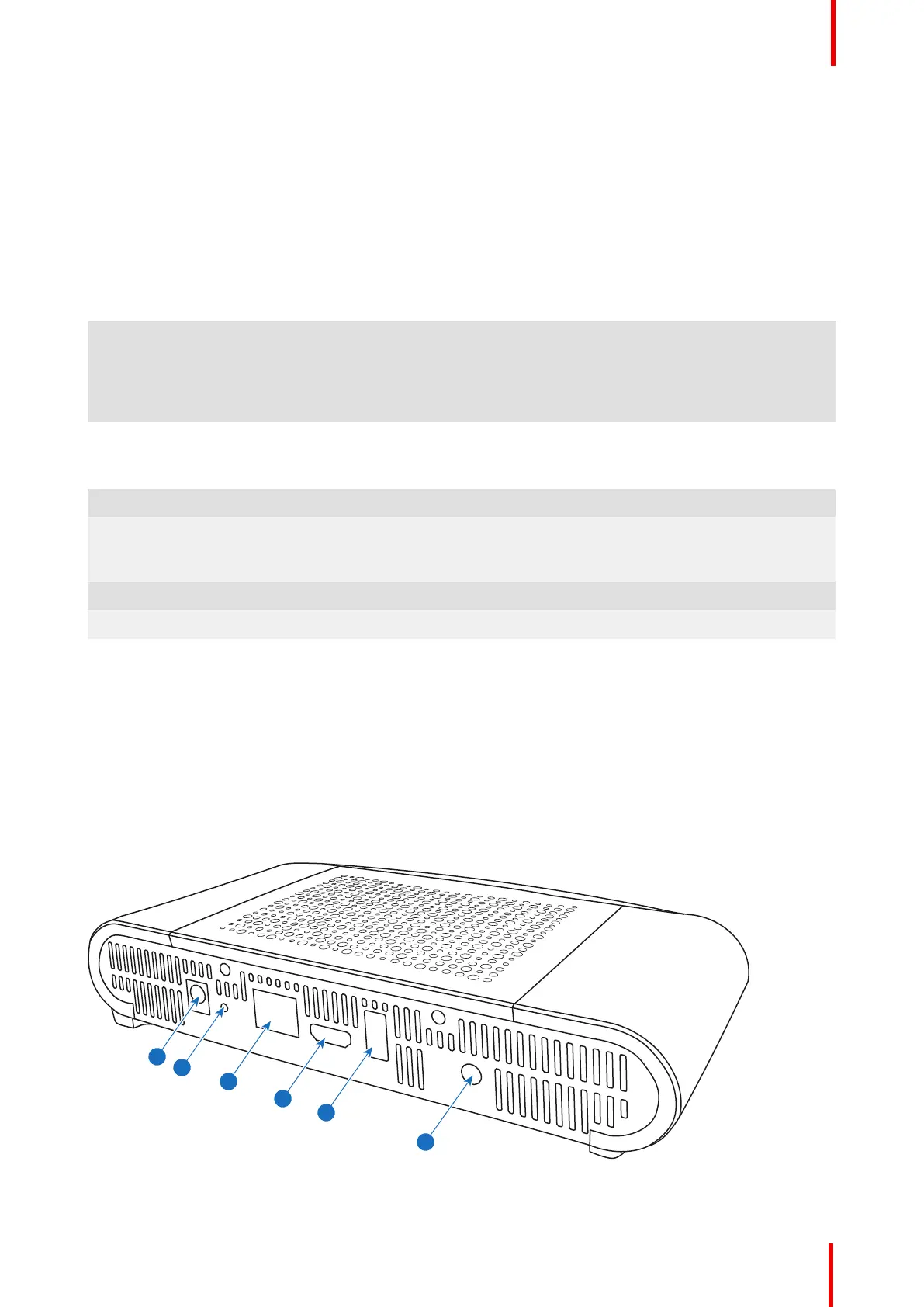

Image 2-3: Backside Base unit
