R5900022-09 ClickShare CS-100 65
How to change
1. Log in to the Configurator.
2. Click Display & Audio Display & Audio.
3. Check or uncheck the check box next to Enable Audio.
Checked: audio is enabled.
Unchecked: audio is disabled.
4. To select the audio output, click on the drop down box and select the desired audio output.
Jack: audio output via jack.
HDMI: audio output via HDMI.
5. Click on Save changes to apply the new settings.
6.10 WiFi settings
WARNING: It is not allowed to operate the Base Unit outside its intended geographical region.
About WiFi
A connection with the Base Unit can be made via a wireless connection. A fixed wireless IP address is used to
establish the connection.
The transmission power of the wireless signal can be reduced.

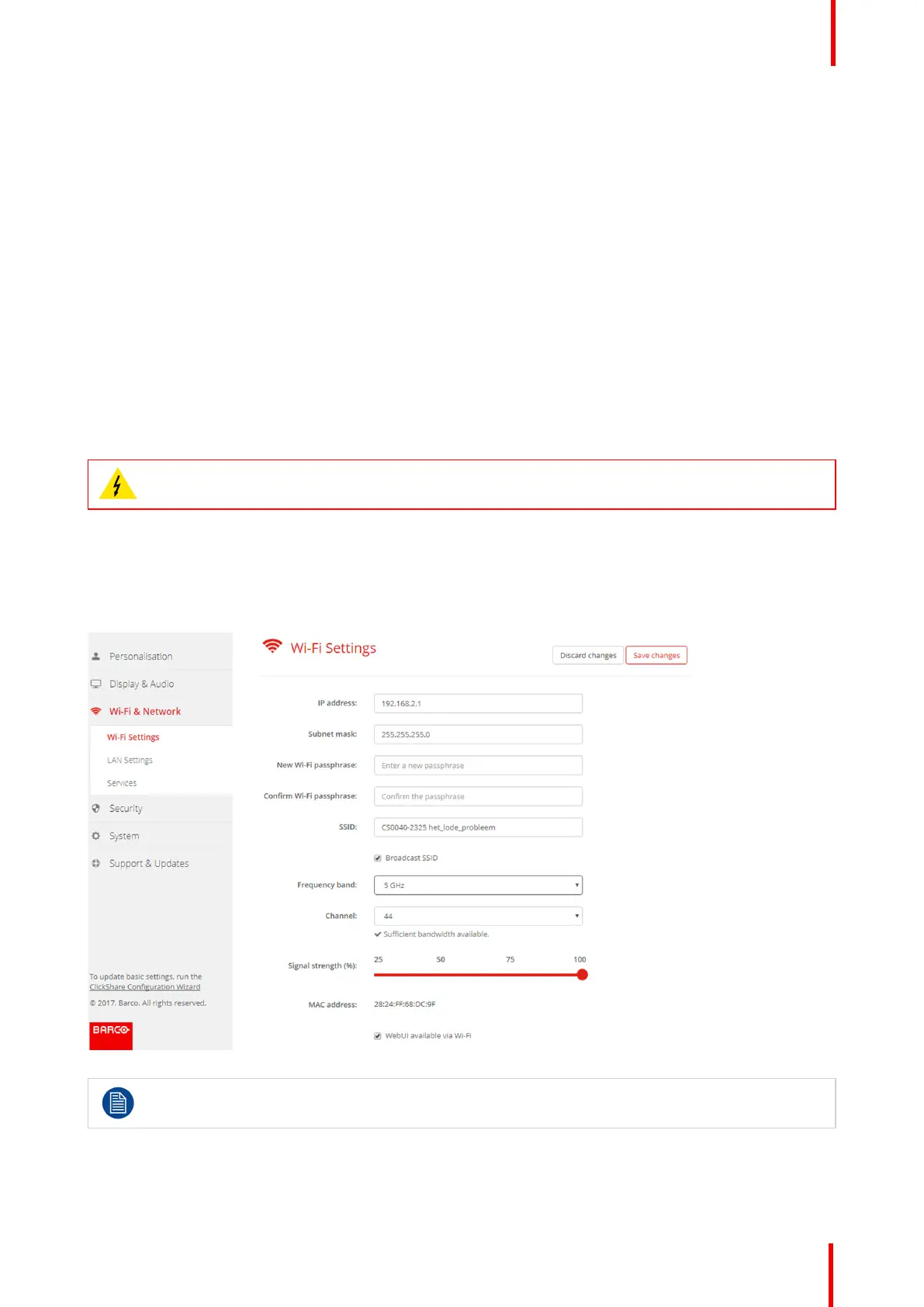

Image 6-17: WiFi settings
Changing the IP address will require a repairing of the Buttons used with this Base Unit.
IP address & subnet mask
1. Log in to the Configurator.
CS-100 Configurator
