Barco ClickShare CS-100 Installation Manual

R5900022-09 ClickShare CS-10038
HDMI

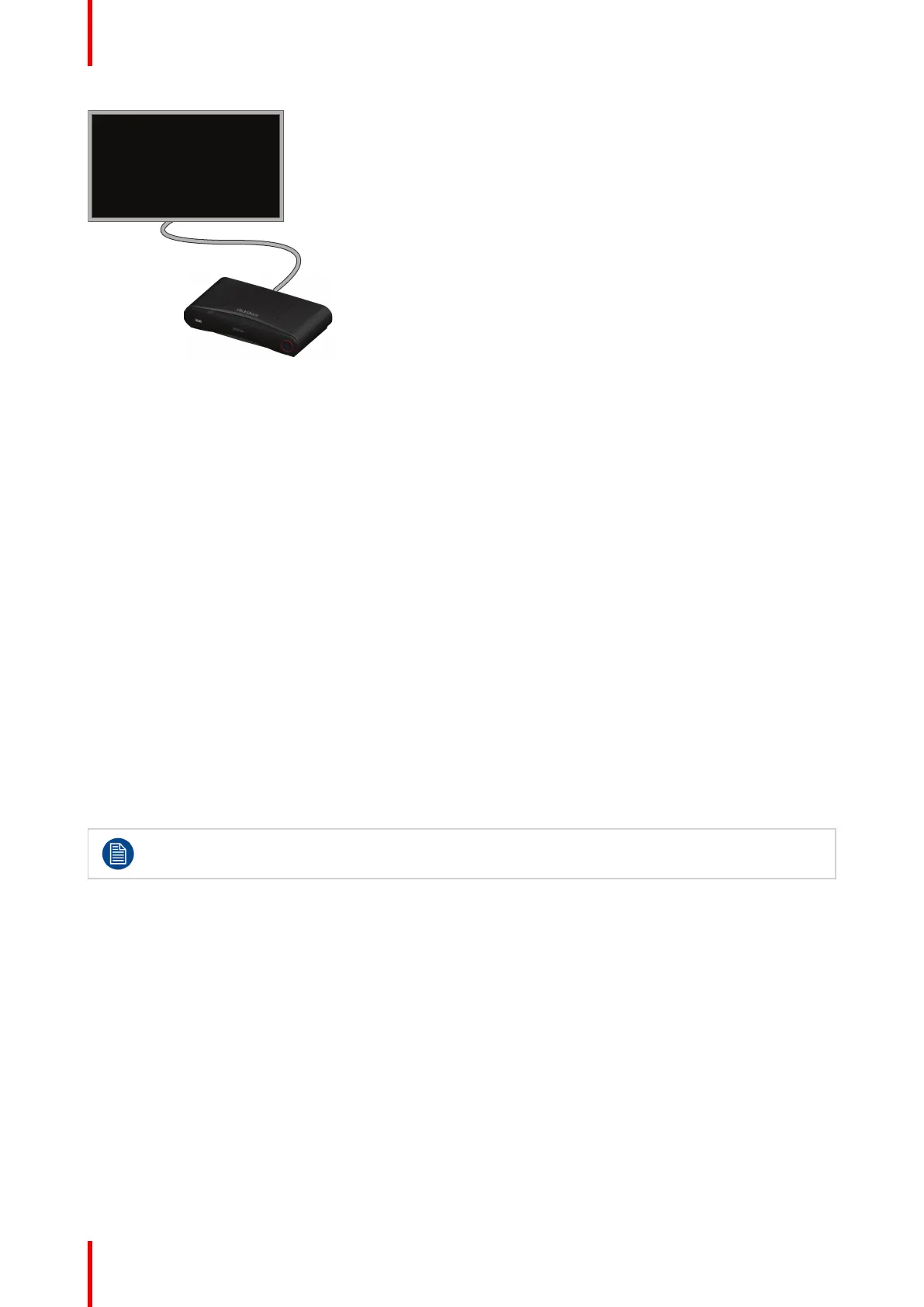

Image 4-2: Display connection
4.5 Audio connection
About audio
The ClickShare Button captures the audio output of the user’s laptop and sends it to the Base Unit together
with the video signal. The audio will be output at line levels from the mini jack socket (3.5mm) and via the
HDMI connector.
It is up to the user to decide whether or not to send the audio signal together with the video signal. The user
can decide this by using the same tools as he would to control the laptop’s speakers or a headphone: the
audio controls of the operating system (eg for Windows: Control Panel > Sounds and audio devices) or the
physical buttons on the keyboard of their laptop (mute/unmute, lower volume, higher volume).
There will be synchronization between the audio and video signal.
Audio via HDMI
When your display is connected via HDMI and it supports audio, a separate audio connection is not
necessary. The audio signal is sent together with the video signal to the display.
How to connect separate audio
1. Connect an audio cable with mini jack socket (3.5mm) into the audio out of the Base unit.
2. Connect the other side to the meeting room's sound system.
Audio output needs to be selected in the Configurator, for more info, see “Audio settings”, page 64
Sound is not sent out
In some Windows environments sound is not sent out. This can be solved as follow:
1. Right click on the sound icon in the system tray and select Playback devices. The Sound window opens.
2. Select Speakers ClickShare, select Set default and click Apply.
4.6 LAN connection
About LAN connection
The Base Unit can be connected to a local network or directly to a laptop. For normal operation, a LAN
connection is not necessary.
The LAN connection can be used:
• to configure your CS-100 Base unit
• to update the software
CS-100 Installation

Barco ClickShare CS-100 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Number of users	1 user(s)
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum resolution (HDMI)	1920 x 1200 pixels
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	2
Input voltage	5 V
Output current	0.5 A
Power source type	DC
Power consumption (max)	18 W
Power consumption (standby)	0.4 W
Power consumption (typical)	6 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 90 %
Antenna type	Internal
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Maximum operating distance	30 m
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 8.0, iOS 9.0
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	115 mm
Height	205 mm
Weight	600 g
