Barco ClickShare CS-100 Installation Manual

R5900022-09 ClickShare CS-100 45

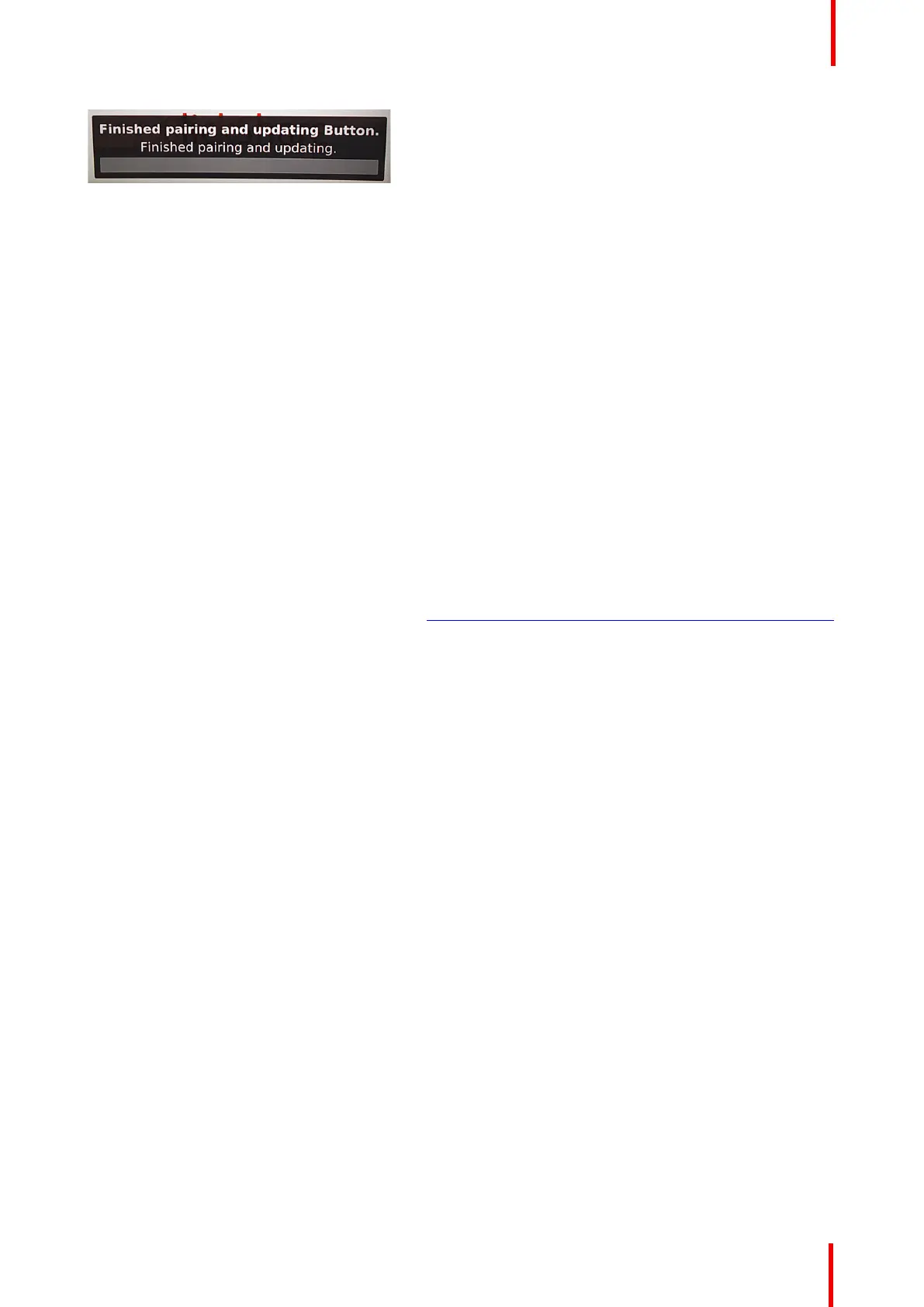

Image 5-3: Pairing finished
2. Unplug the Button from the Base Unit.
The Button is now ready for use.
To pair a Button to the Base Unit using the Button Manager
Via the Button Manager client application running on your laptop, up to 4 Buttons can be paired
simultaneously to a Base Unit without plugging the Buttons to the Base Unit. The Buttons are plugged in to
your laptop. For more information about the Button Manager, consult the Button Manager’s user guide which
can be downloaded from Barco’s website.
5.2 ClickShare Extension Pack
About
The ClickShare Extension Pack is a collection of tools to upgrade your ClickShare user experience. This
Extension Pack contains the ClickShare Launcher service and a driver to enable the Extended Desktop
functionality. Both tools will be installed by default. To change the default behavior of the installer, the installer
will need to be executed with command line parameters.
The ClickShare Extension Pack can be installed by the end user manually, pre-installed on your company’s
laptop image or deployed company-wide with SCCM or other tools.
The latest extension pack can be downloaded via http://www.barco.com/en/product/clickshare-extension-pack
5.3 ClickShare Extension Pack installer
Interactive setup
In this setup, the user runs the installer which will install the ClickShare Extension Pack on his computer after
the user accepts the EULA.
After the setup finished, the ClickShare launcher will be started automatically. The Extended desktop driver
can only be used after the user reboots his computer.
Starting the setup
1. Download the ClickShare Extension Pack using the link indicated in “ClickShare Extension Pack”, page 45.
2. Unzip the downloaded file.
3. Click ClickShare-Extension-Pack-01.00.01.0003.msi to start the installation.
Preparing the buttons

Barco ClickShare CS-100 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Number of users	1 user(s)
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum resolution (HDMI)	1920 x 1200 pixels
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	2
Input voltage	5 V
Output current	0.5 A
Power source type	DC
Power consumption (max)	18 W
Power consumption (standby)	0.4 W
Power consumption (typical)	6 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 90 %
Antenna type	Internal
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Maximum operating distance	30 m
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 8.0, iOS 9.0
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	115 mm
Height	205 mm
Weight	600 g
