Barco ClickShare CS-100 Installation Manual

R5900022-09 ClickShare CS-100 75
How to change the display timeout and standby mode
1. Log in to the Configurator.
2. Click System → Energy Savers.
3. To set a display time out, move the slider to the left or to the right until the desired standby timeout is reached.
4. To select a standby mode, select the radio button before Eco standby or Deep standby.
6.19 Buttons
About Buttons
It is possible to update the software of the Buttons over Wi-Fi. All Buttons used with the Base Unit are
indicated in the Buttons List. The list contains the state, the signal strength, the serial number, the firmware
version, the number of connections and last connection.

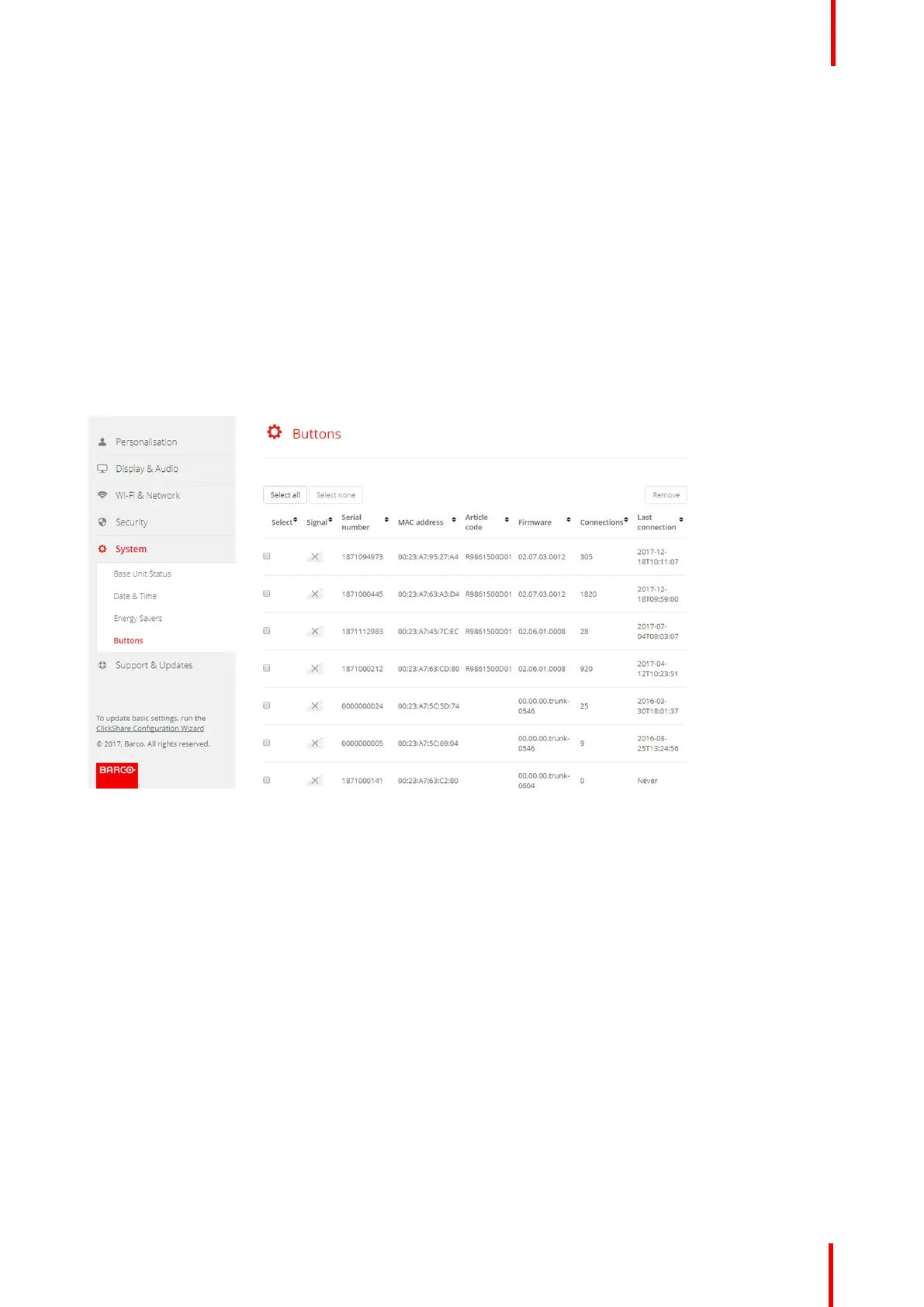

Image 6-29: Buttons
6.20 Firmware Update
About Firmware update
The firmware of the Base Unit can be updated via the web interface. The latest version of the firmware is
available on Barco's website.
CS-100 Configurator

Barco ClickShare CS-100 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Number of users	1 user(s)
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum resolution (HDMI)	1920 x 1200 pixels
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	2
Input voltage	5 V
Output current	0.5 A
Power source type	DC
Power consumption (max)	18 W
Power consumption (standby)	0.4 W
Power consumption (typical)	6 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 90 %
Antenna type	Internal
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Maximum operating distance	30 m
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 8.0, iOS 9.0
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	115 mm
Height	205 mm
Weight	600 g
