R5900022-09 ClickShare CS-10030
1 Power connection
2 Reset button
3 LAN Ethernet connection
4 HDMI connector
5 USB Type-A port
6 Audio out port
Mechanical fixture points
The mechanical fixture points are located at the bottom of the Base Unit
Antenna
The antenna is built-in in the CS-100.
Bottom layout of the Base Unit
The serial number label containing the Barco part number, the revision number, production date (week-year)
and the serial number.
The product label with the applicable certification logos.
The product label contains:
• the Barco logo
• the product name
• the Barco part number
• the power rating
• markings for applicable standards (CE, CCC, UL, ...)
• markings for waste regulation
• “Made in ...”
Bluetooth
Bluetooth functionality is currently not available and Bluetooth signal is disabled.
2.4 About the Button
Button
A Button toggles the sharing of the individual PC or MAC screen on the meeting screen.

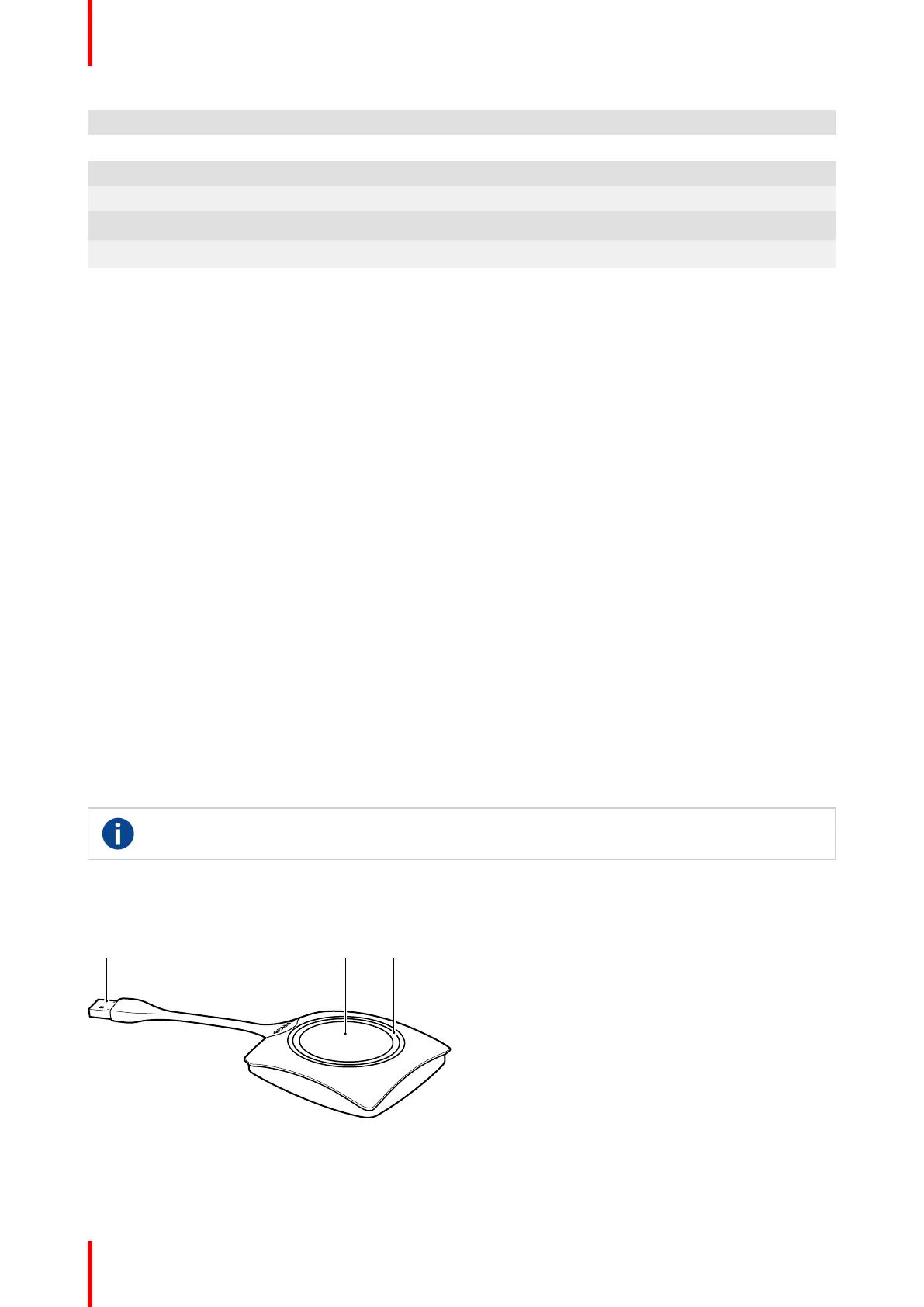

Button layout
A Button consists of three main components.
Image 2-4: Button layout
