Barco ClickShare CS-100 Installation Manual

R5900022-09 ClickShare CS-10050
6.1 Accessing the Configurator
Getting access to the Configurator
There are three ways to access the Configurator:
• Via the LAN
• Direct Ethernet connection between PC and Base Unit.
• Via the Base Unit's wireless network
When accessing the configurator for the first time, the ClickShare Configuration Wizard starts automatically.
This configuration wizard can be started at any moment to change your configuration instead of using the
menus.
To access the Configurator via the LAN
1. Open a browser.
Note: Supported browsers are Internet Explorer 10 or higher, Firefox, Google Chrome and Safari.
2. Browse to the IP address you can find in the bottom left corner of the startup screen.
Note: The Wired IP address is only visible when the Base Unit is connected to the LAN.
A login screen appears.

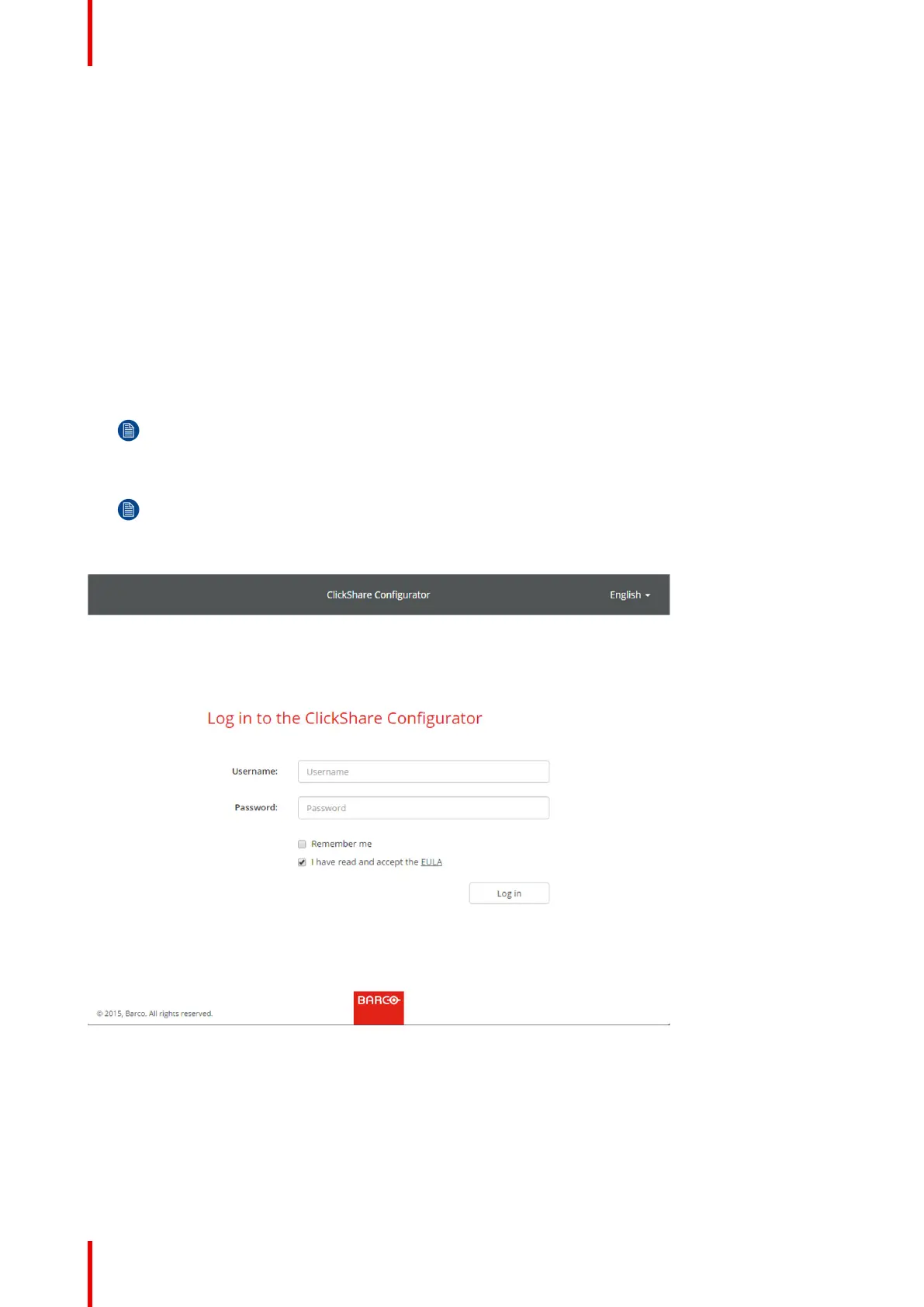

Image 6-1: Login screen
3. To change the language of the Configurator, click on the drop down next to the current selected language and
select the desired language.
CS-100 Configurator

Barco ClickShare CS-100 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Number of users	1 user(s)
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum resolution (HDMI)	1920 x 1200 pixels
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	2
Input voltage	5 V
Output current	0.5 A
Power source type	DC
Power consumption (max)	18 W
Power consumption (standby)	0.4 W
Power consumption (typical)	6 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 90 %
Antenna type	Internal
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Maximum operating distance	30 m
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 8.0, iOS 9.0
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	115 mm
Height	205 mm
Weight	600 g
