6.18 Energy savers
About standby
Standby after (minutes): If there is no client connection detected during the standby timeout period, the Base
Unit will enter the selected standby mode.
Default setting: Time to standby: 10 min, the Base Unit will enter the Eco standby mode.
Eco standby
When the Base Unit enters ECO standby mode, it will disable the HDMI output signal and go in low power
mode. The Base Unit's LEDs will be breathing white to indicate the ECO standby mode.
Power consumption in Eco standby: 2.6W
The Base Unit will wake up with one of the following actions:
• Button or app connecting with the Base Unit
• Press the standby button on the Base Unit
• "Wake up" signal over the network
• Pairing a Button on the Base Unit's USB port
• Detection of display hot plug
Deep standby
When the Base Unit goes in Deep standby mode, it will shut down all processes, including the Wi-Fi access
point and the (secondary) LAN connection.
For devices with two LAN interfaces (e.g. CSE-800), when there is an active network connected to the primary
LAN connection and Corporate network is enabled, the primary LAN interface will remain active and the Base
Unit's LEDs will be breathing white to indicate this standby mode. Otherwise, The Base Unit's LEDs will be
dark.
Power consumption in Deep standby: 0.4W
The Base Unit will wake up when the standby button on the Base Unit is pressed, or
when the primary LAN interface remains active, a detection of HDMI input hot plug or button or app connecting
with the Base Unit's primary LAN interface.

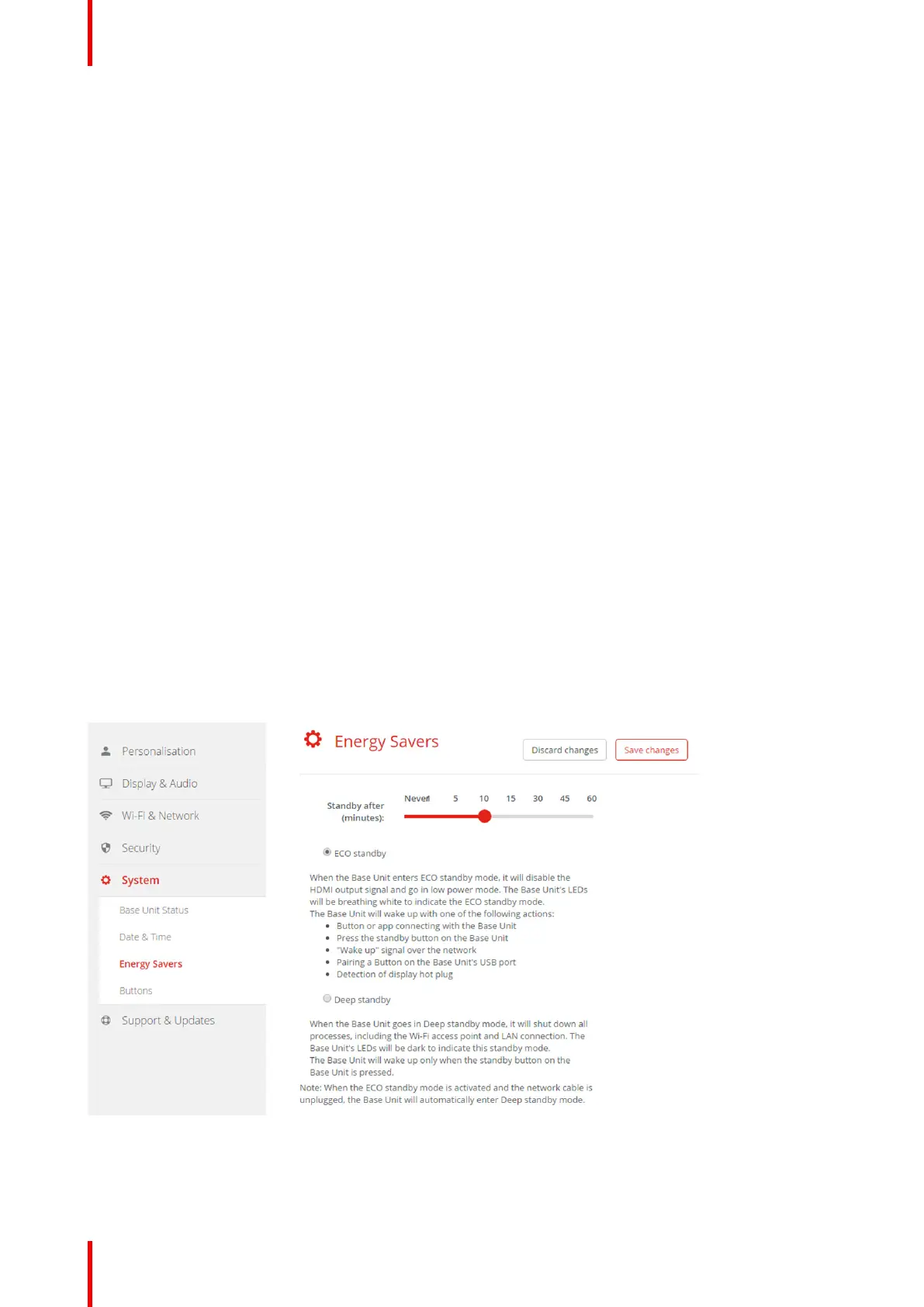

Image 6-28: Energy savers
CS-100 Configurator

Barco ClickShare CS-100 Specifications

General

Form factor	Desktop
Certification	FCC/CE
Product color	Black, Silver
LED indicators	Yes
Number of users	1 user(s)
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum resolution (HDMI)	1920 x 1200 pixels
Interface	HDMI
Number of HDMI outputs	1
USB 2.0 ports quantity	2
Input voltage	5 V
Output current	0.5 A
Power source type	DC
Power consumption (max)	18 W
Power consumption (standby)	0.4 W
Power consumption (typical)	6 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 90 %
Antenna type	Internal
Frequency band	2.4 & 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA2-PSK
Maximum operating distance	30 m
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Mobile operating systems supported	iOS 8.0, iOS 9.0
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	115 mm
Height	205 mm
Weight	600 g
