2. Parts, controls and connectors

15. GND (cable sense)

16. Hot plug detect (*)

17. D0_Rx- (T.M.D.S.)

18. D0_Rx+ (T.M.D.S.)

19. GND (data 0 shield)

20. Not connected

21. Not connected

22. GND (clock shield)

23. CK_Rx+ (T.M.D.S.)

24. CK_Rx- (T.M.D.S.)

(*) +5 VDC output selectable on either pin 14 or 16 via the OSD menu. (+5V ± 10% @ 500mA (max))

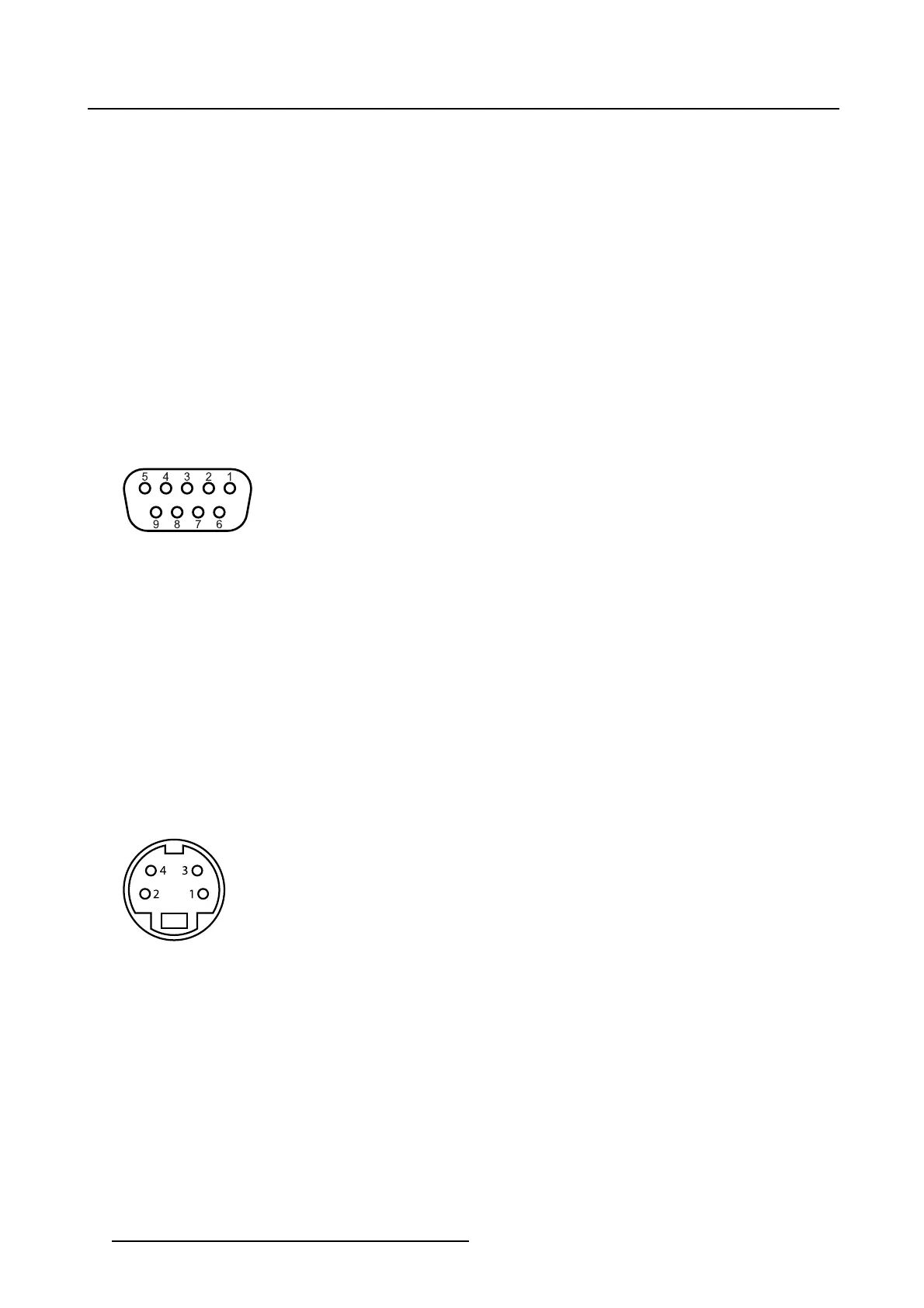

2.4.3 RS232 connector

Overview

Image 2-6

1. Not connected

2. Rx (driven by host)

3. Tx (driven by display)

4. Not connected

5. Ground

6. Not connected

7. Not connected

8. Not connected

9. Not connected

2.4.4 S-Video and S-Video-out connector

Overview

Image 2-7

1. Ground (Y)

2. Ground (C)

3. Luminance (Y)

4. Chroma (C)

5. SG: Shielded Ground

K5902113 (451920611383) E192HSA 27/11/2017

Barco E192HSA User Manual
