2. Parts, controls and connectors
14. G/Y/SOG
15. B/Pb
16. S-Video in
17. Service

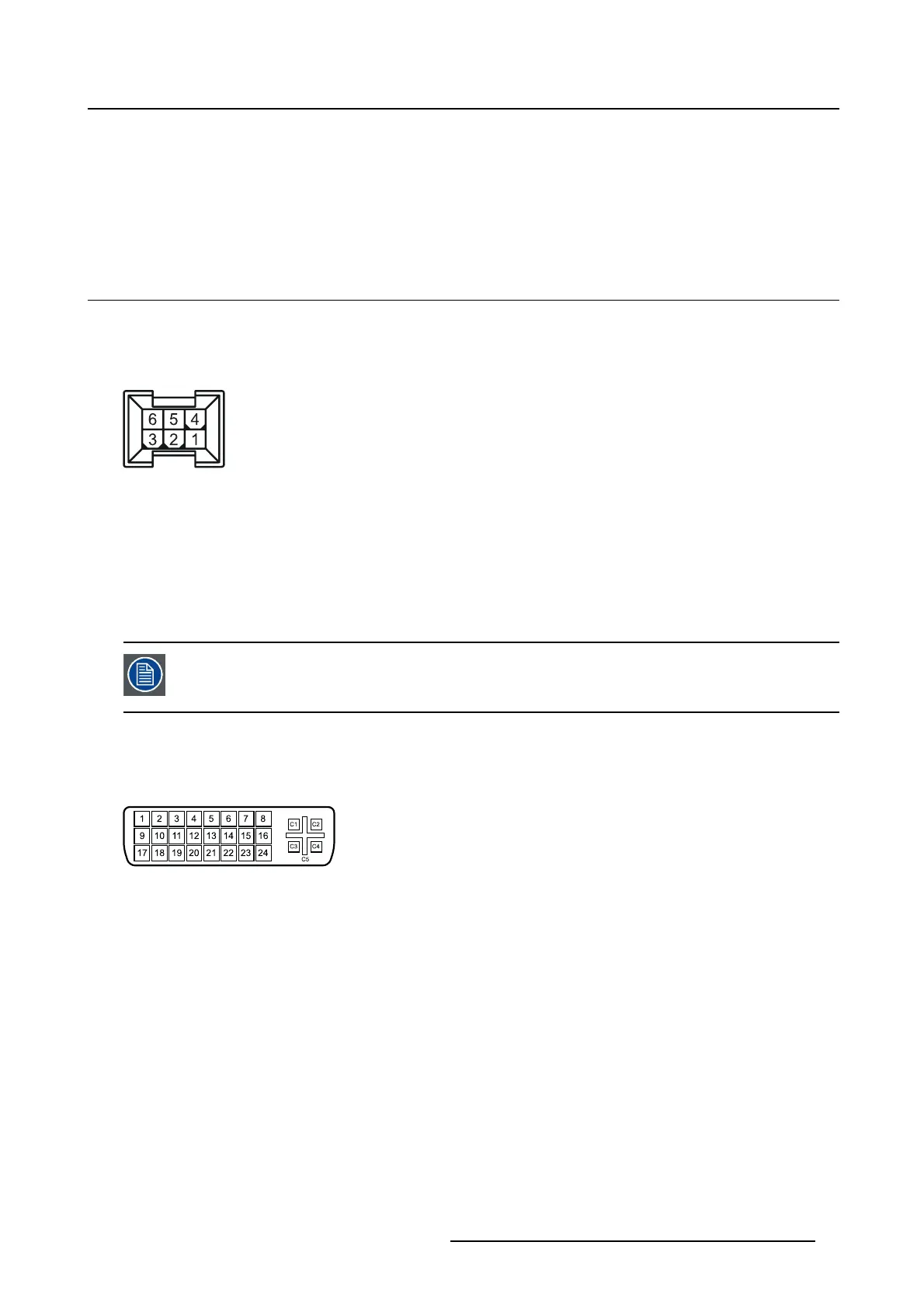

2.4 Con nect or p in assignments
2.4.1 Input power connector
Overview
Image 2-4
1. GND
2. Not connected
3. +24 VDC
4. GND
5. Shield
6. +24 VDC
The ground and the shield connections on the power input connector have no Protective
Earth function. A Protective Earth co nnection is provided via a dedicated pin (see "Rea
r
view", page 6 ).
2.4.2 DVI connector (DVI-D)
Overview
Image 2-5
1. D2_Rx- (T.M.D.S.)
2. D2_Rx+ (T.M.D.S.)
3. GND (data 2 shield)
4. Not connected
5. Not connected
6. SCL (for DDC)
7. SDA (for DDC)
8. Not connected
9. D1_Rx- (T.M.D.S.)
10. D1_Rx+ (T.M.D.S.)
11. GND (data 1 shield)
12. Not connected
13. Not connected
14. +5V output (*)
K5902113 (451920611383) E192HSA 27/11/2017
