3. DISPLAY INSTALLATION
3.1 Interface co nn ection
About t he interfaces
The E192HSA can have multiple video inputs connected. Switching between the different inputs can be
done easily with the Source shortkey (
).
The Picture in Picture (PiP) and Side-by-Side (SbS) functionality becomes available if more than one
video source is connected. This allows you to view two different video inputs at once. Please refer to the
dedicated chapter for more info.
Beside video inputs, the E192HSA also has video output capabilities allowing you to loop-through certain
video inputs to another display, projector, video recorder, ...
This chapter describes how to connect the different video interface types to the E192HSA.
WARNING: To maintain compliance with EMC regulation, use only shielded interface
cables for the connection to peripheral devices.
To connect the interfaces
1. Connect one or more video source(s) to the corresponding video inputs:
-
1
:SDI
-
2
:VGA
-
3
:CVBS
-
4
/
5
/
6
: R/G/B (SOG)
-
4
/
5
/
6
/
7
: R/G/B/S
-
5
/
6
/
4
:Y/Pb/Pr
-
8
: S-Video
-
9
:DVI
1
49 5 6 8
2 7
3

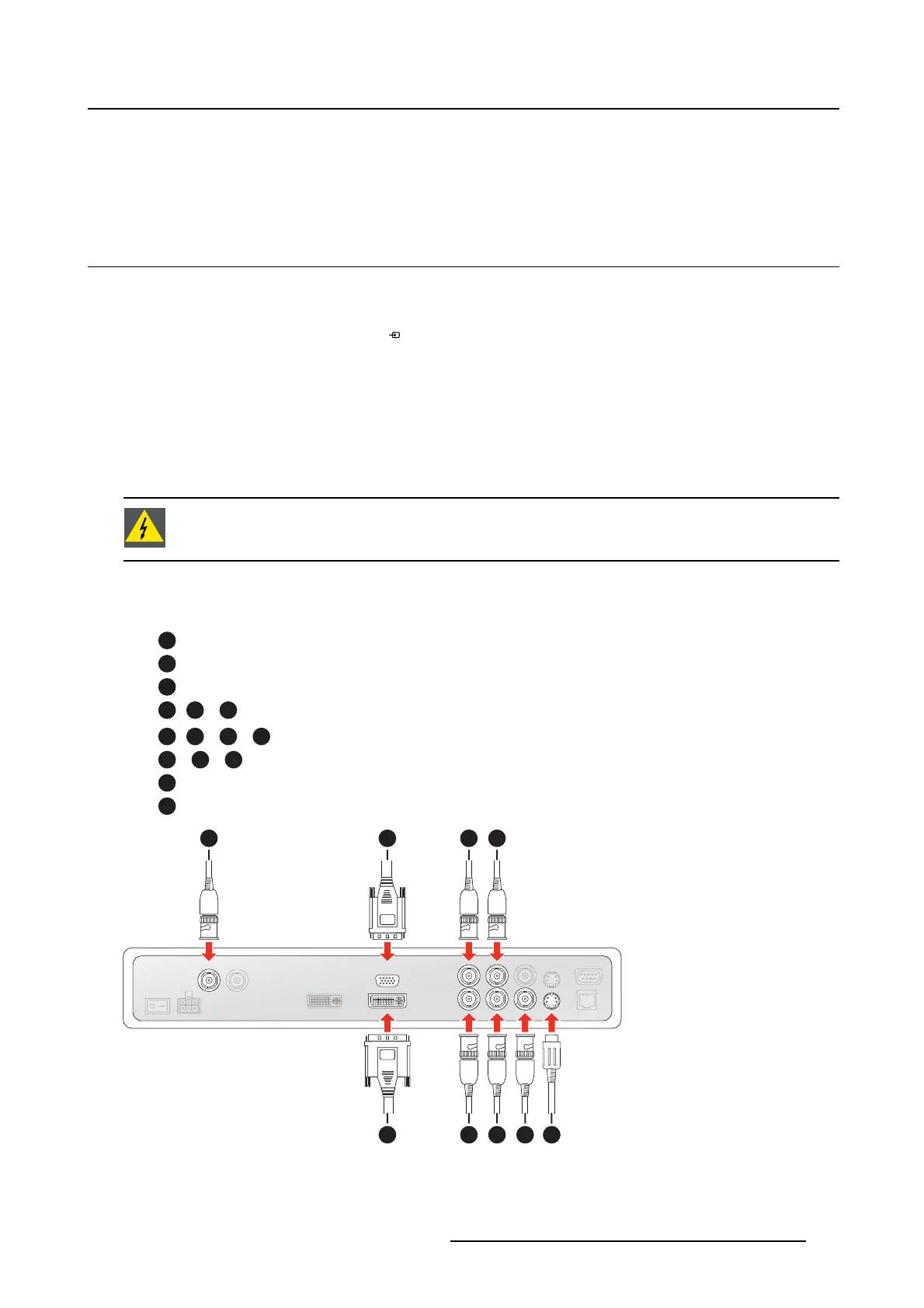

Image 3-1
2. Connect one or more of the available video sink(s) to the corresponding video outputs:
