3. Display installation
-
1
:SDI
-
2
:DVI
-
3
:CVBS
-
4
: S-Video
1 2
3 4

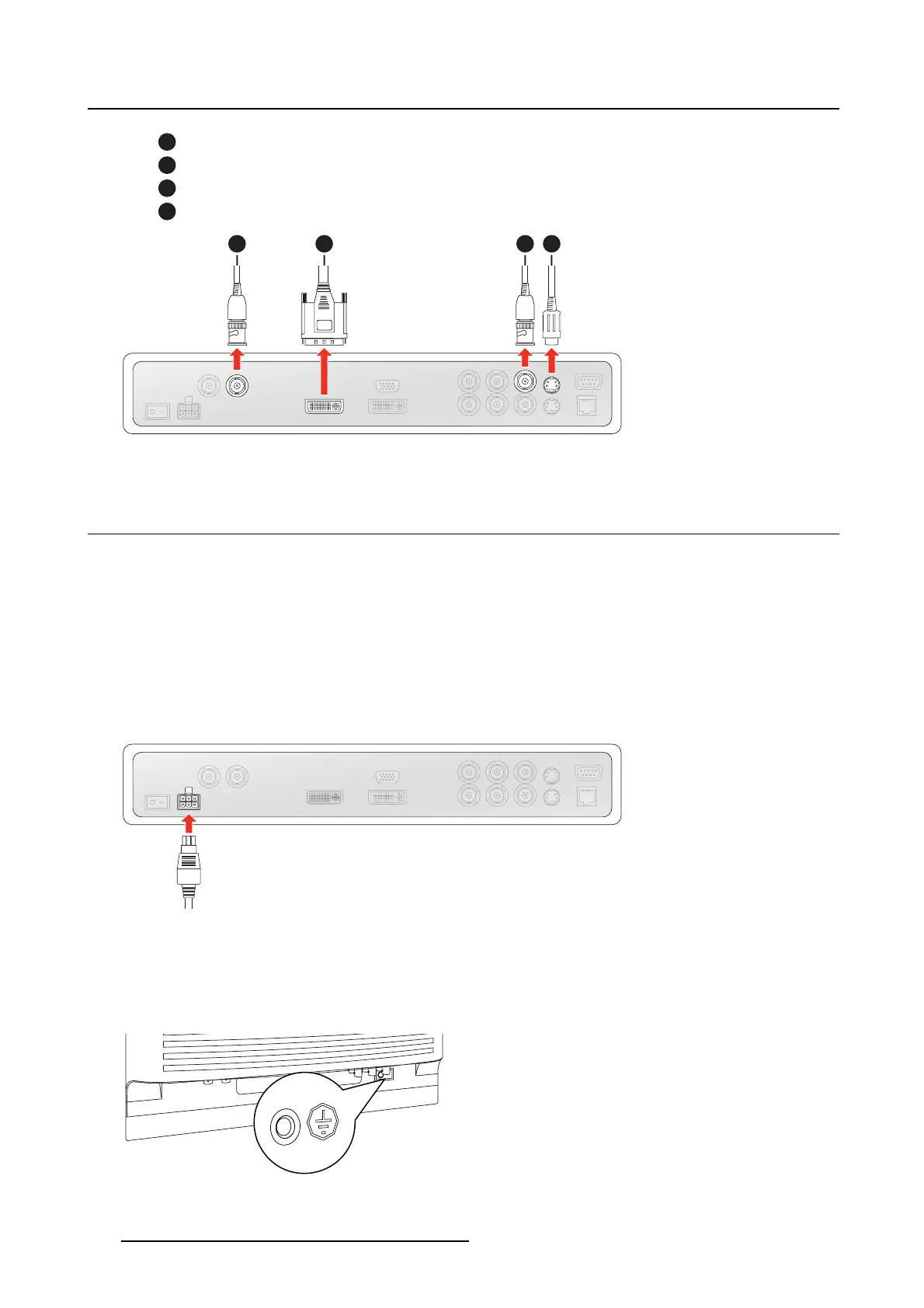

Image 3-2
3.2 Pow er su pp ly connection
To connect the power supply
1. Connect the supplied external DC power supply unit to the +24 VDC power input of your E192HSA
display.
2. Plug the other end of the power supply into a grounded power outlet by means of the proper power
cord delivered in the packaging.
Warning:To avoid risk of electric shock, the external DC power supply must be connected to a mains
with protective earth. The ground connection on the display’s DC power input connector has
no protective earth function. The E192HSA display protective earth connection is provided
viaadedicatepin(seenextsteps).
Image 3-3
Prot ective earth
Earth the E192HSA by connecting the protective earth pin to a grounded outlet by means of an AWG18
wire (maximum admitted cable length according to national regulation requirements) and screw with lock
washer M4x12 max.
Image 3-4
12
K5902113 (451920611383) E192HSA 27/11/2017
