3. Display installation
3.3 VESA mount installation
To install the display on a VESA mounting solution
Attach the display to a VESA arm or stand (VESA 100 mm is supported) by making use of the included 4
screws (M4 x 25mm) and the dented washers.

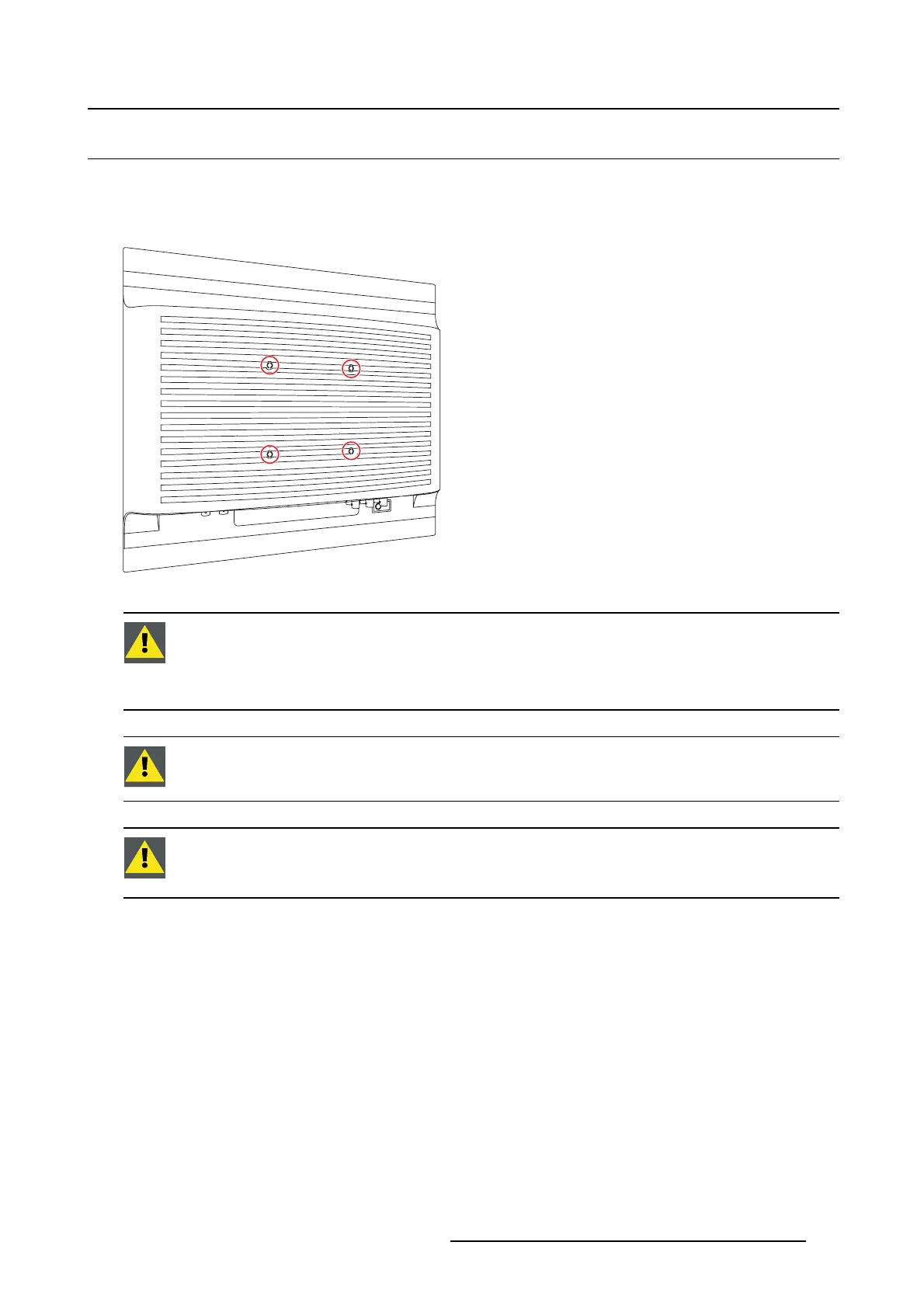

Image 3-5
CAUTION: The 4 screws included (M4 x 25 mm) can be used for a VESA arm interface
with a thickness of up to 10 mm.
If, due to the thickness of the VESA arm interface (=V), the length of the provided s crews
(=L) is not suitable, consider the following rule: L = V +
15 mm
CAUTION: Use an arm that is in compliance with VESA requirements.
CAUTION: The monitor VESA interface has been designed for a safety factor 6 (to sup-
port 6 times the monitor w eight). In the medic
al system, use an arm with suitable safety
factor (IEC60601–1).
K5902113 (451920611383) E192HSA 27/11/2017
13
