Barco E192HSA User Manual

2. Parts, controls and connectors
2.4.5 VGA connector
Overview

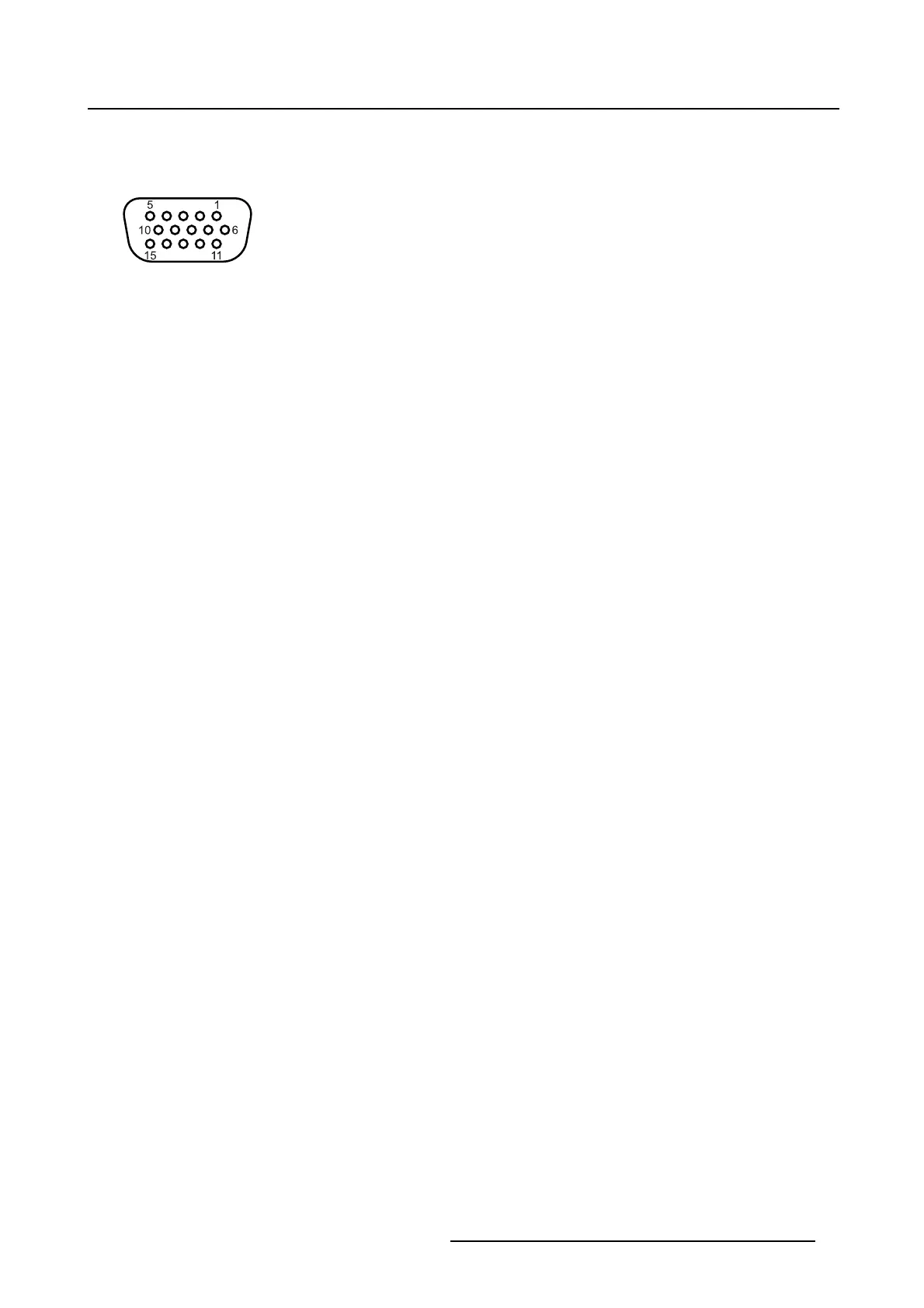

Image 2-8
1. R in
2. G in
3. B in
4. Ground
5. Not connected
6. Ground
7. Ground
8. Ground
9. Input power supply for DDC
10. Ground
11. Ground
12. SDA (for DDC option)
13. Horizontal sync in
14. Vertical sync in
15. SCL (for DDC option)
K5902113 (451920611383) E192HSA 27/11/2017
9
