Barco F80 series User Manual

R5906852-01 F80 series 35

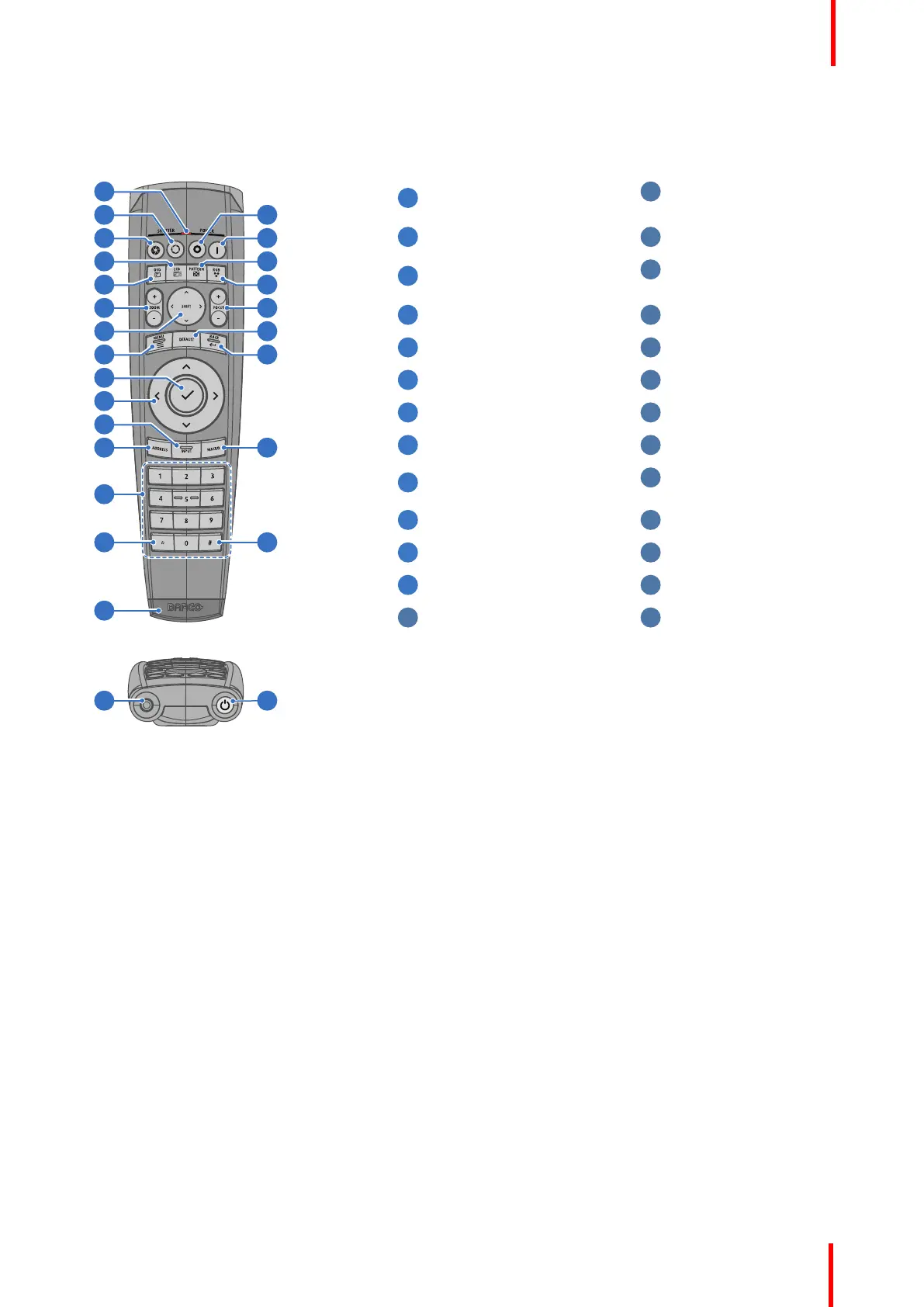

Remote Control Unit buttons
1
2
3
4
5
6
7
8
9
10
11
12
15
24
23
22
21
20
19
18
17
16
13
14
2625
1
Button pressed indicator
14
Backspace (while
entering values)
2
Shutter open
15
XLR connector
3
Shutter close
16
Decimal mark (while
entering values)
4
LCD panel On / Off
17
Macro button
5
Project OSD On/Off
18
Menu back
6
Lens zoom
19
Default value button
7
Lens shift
20
Lens focus
8
Menu Open / Close
21
Color menu
9
Menu selection, OK
button
22
Test patterns
10
Menu navigation
23
Power On
11
Input selection
24
Power Off
12
Address button
25
3.5 mm jack
13
Numeric buttons
26
RCU On / Off
The projector remote control is a full feature wireless remote control, powered by two (2) standard AA
batteries. The battery compartment is on the back of the remote control.
The remote control is backlit for use in dark environments. It also has an XLR connector for wired connection
to the projector. When the wire is connected, the IR beam is switched off.
LCD panel
The LCD panel has two main functions:
1. Showing the menus, the adjustment information and also a mirror of the OSD, (On Screen Display)
described in User Interface when this is enabled.
Information regarding the status of the projector showing this data:
• Projector status
• Network address
• Active source
• Current firmware version
• Operation Data
• Active functions (Enabled Functions).
Toggle between the two indications by using the Menu button on the keypad, or on the remote control.
The LCD Display will fade out 30 seconds after the last key operation.
