R5906852-01 F80 series 77

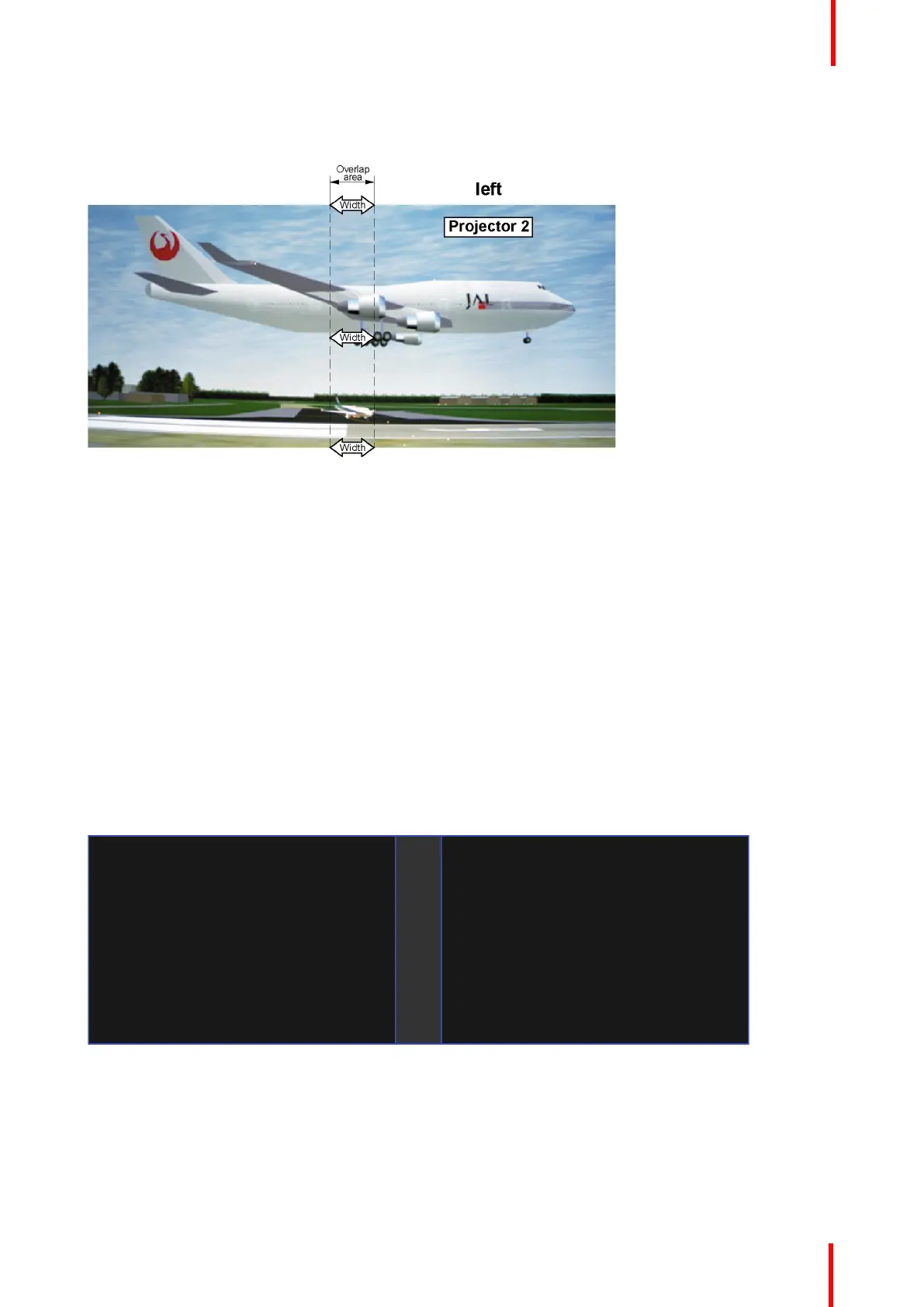

Image 8-37: Set up for projector 2
8.4.2 Black level adjustment
About adjusting the black level
The purpose of the black level adjustment is to align the black levels in the overlapped regions with the black
levels in the other regions.
This is needed because the black levels will be brighter in the blend zones, since multiple projectors will
project on the same screen area.
The size of the black level area is calculated automatically from the blend zones. This is done by using the
start position and size of each edge of the blend and adding an additional size of 8 pixels to reduce the effect
known as "sea of mirrors".
You can also specify the offsets manually by turning off the automatic calculation. The black level value is
adjusted in a 8 bit resolution from 0 to 255.
The following figure shows how this occurs in a side by side configuration without any correction of the black
level.
Picture Left Picture RightBlend Zone
Image 8-38
How to adjust the black level manually
1. In the main menu, select Installation → Blend and Mask → Black Level.
GUI – Installation
