R5906852-01 F80 series62
8.1 Configuring the lens, shift
What can be done?
The image can be shifted by using the vertical and horizontal lens shift.
Lens shift is only possible when lens shift is calibrated. Please refer to the lens calibration section in
System Settings → Lens Calibration menu.
Vertical and Horizontal Shift

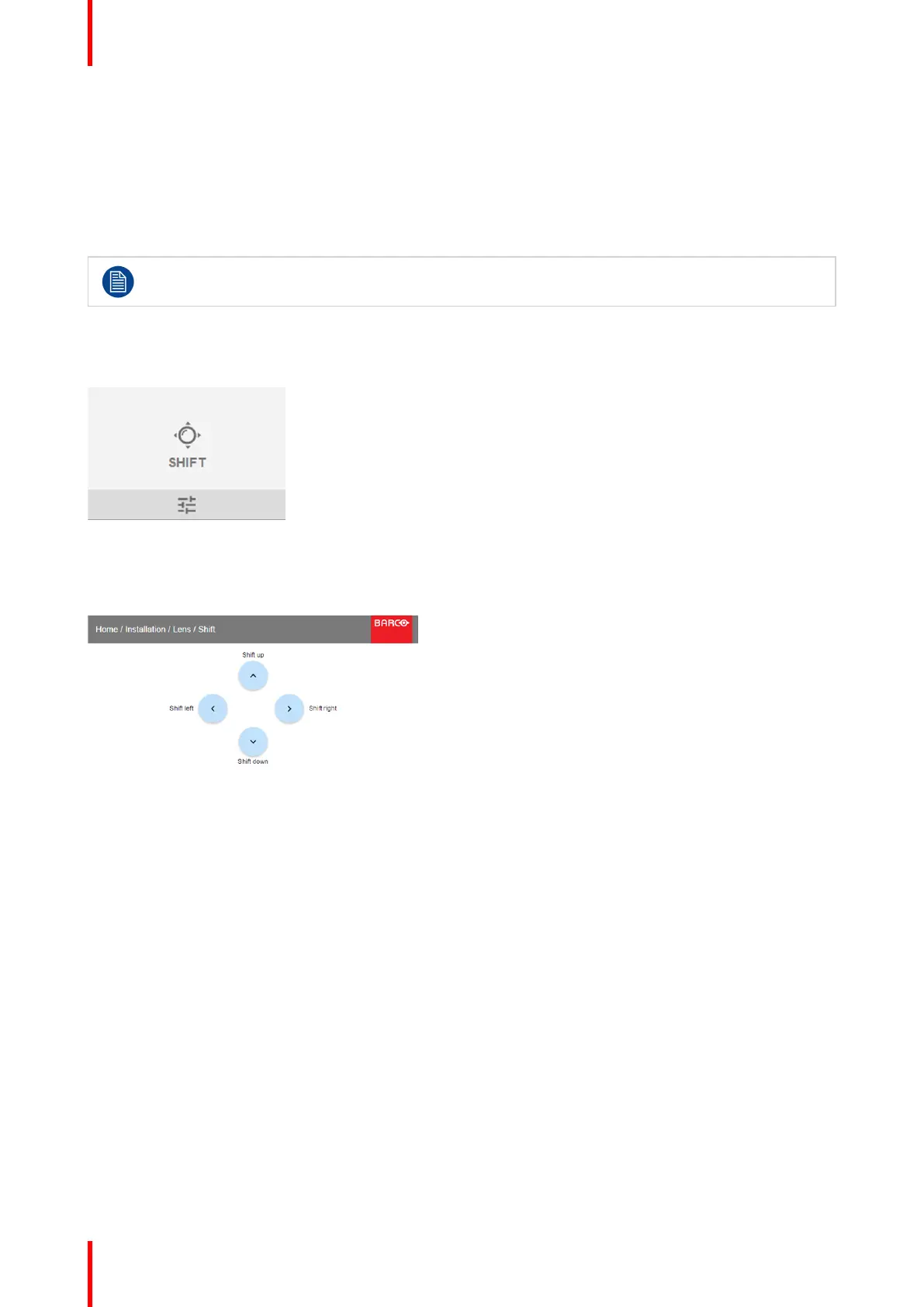

1. To change the position of the projected image, select Installation → Lens → Shift.
Image 8-1: Lens menu, Lens shift
2. Use the ▲ or ▼ key to shift the lens (image) in vertical direction.
Use the ◄ or ► key to shift the lens (image) in horizontal direction.
Image 8-2: Shift adjustment
8.2 Orientation
What can be done?
The way of physical installation of the projector can be defined to the projector.
The following installation are possible:
• front/table
• front/ceiling
• rear/table
• rear/ceiling
How to set the correct orientation
1. In the main menu, select Installation → Orientation.
GUI – Installation
