R5906852-01 F80 series80
For more information on uploading/downloading Blend files using curl or other tools that supports HTTP
upload, refer to the Pulse API Reference Guide.
How to activate an uploaded Blend configuration file?

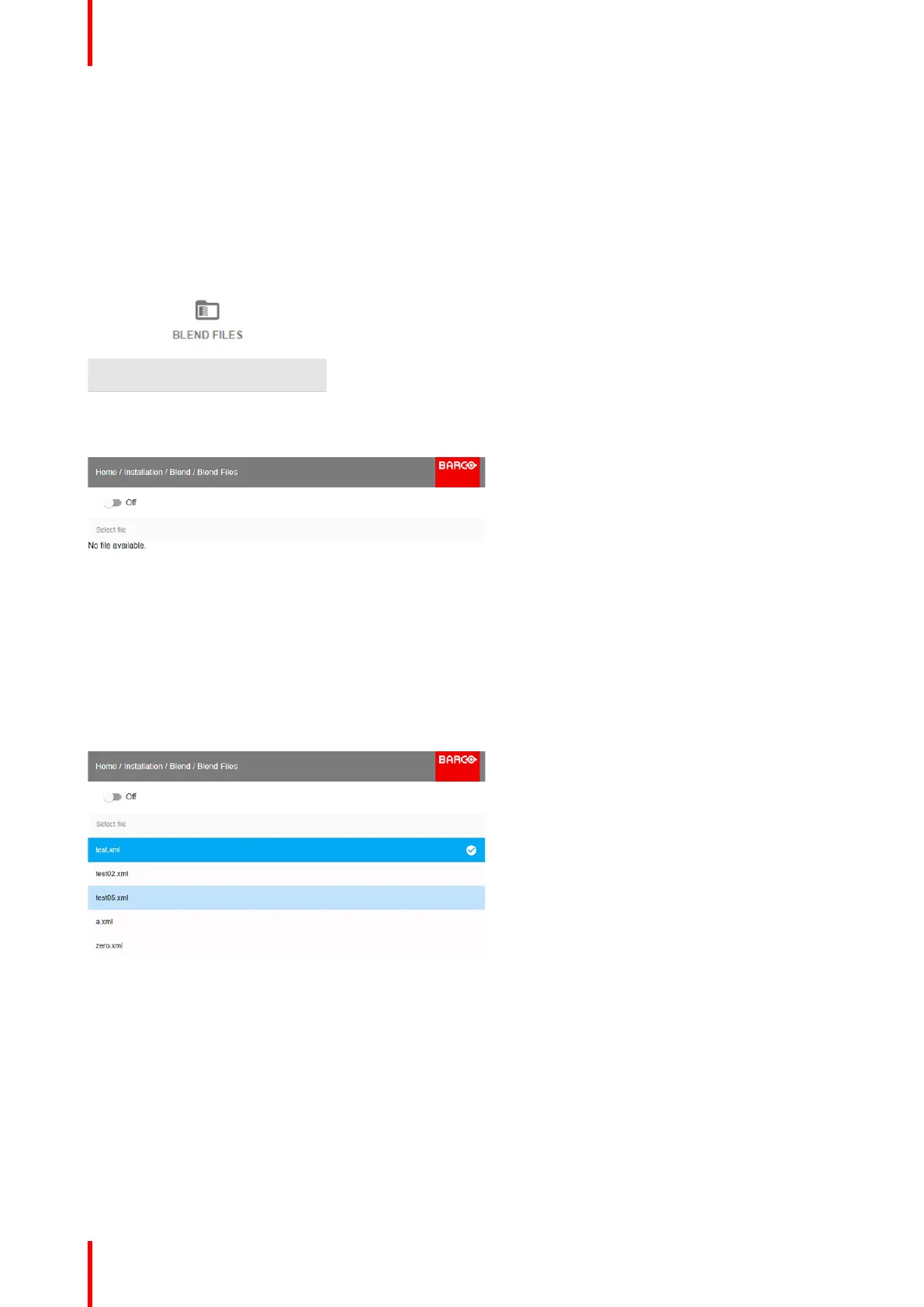

1. In the main menu, select Installation → Blend and Mask → Blend Files.
Image 8-44: Blend menu, Blend Files
The Blend Files menu is displayed.
Image 8-45
2. If any custom Blend files are available, select the desired file.
Image 8-46
3. Click on the on/off button on top to activate the selected Blend file.
8.5 Laser illumination
What can be done?
Within a certain power mode, the light output of the light source can be reduced by reducing the laser power.
Alternatively, you can enable CLO mode (Constant light output) for a constant light output over a longer period
of time.
GUI – Installation
