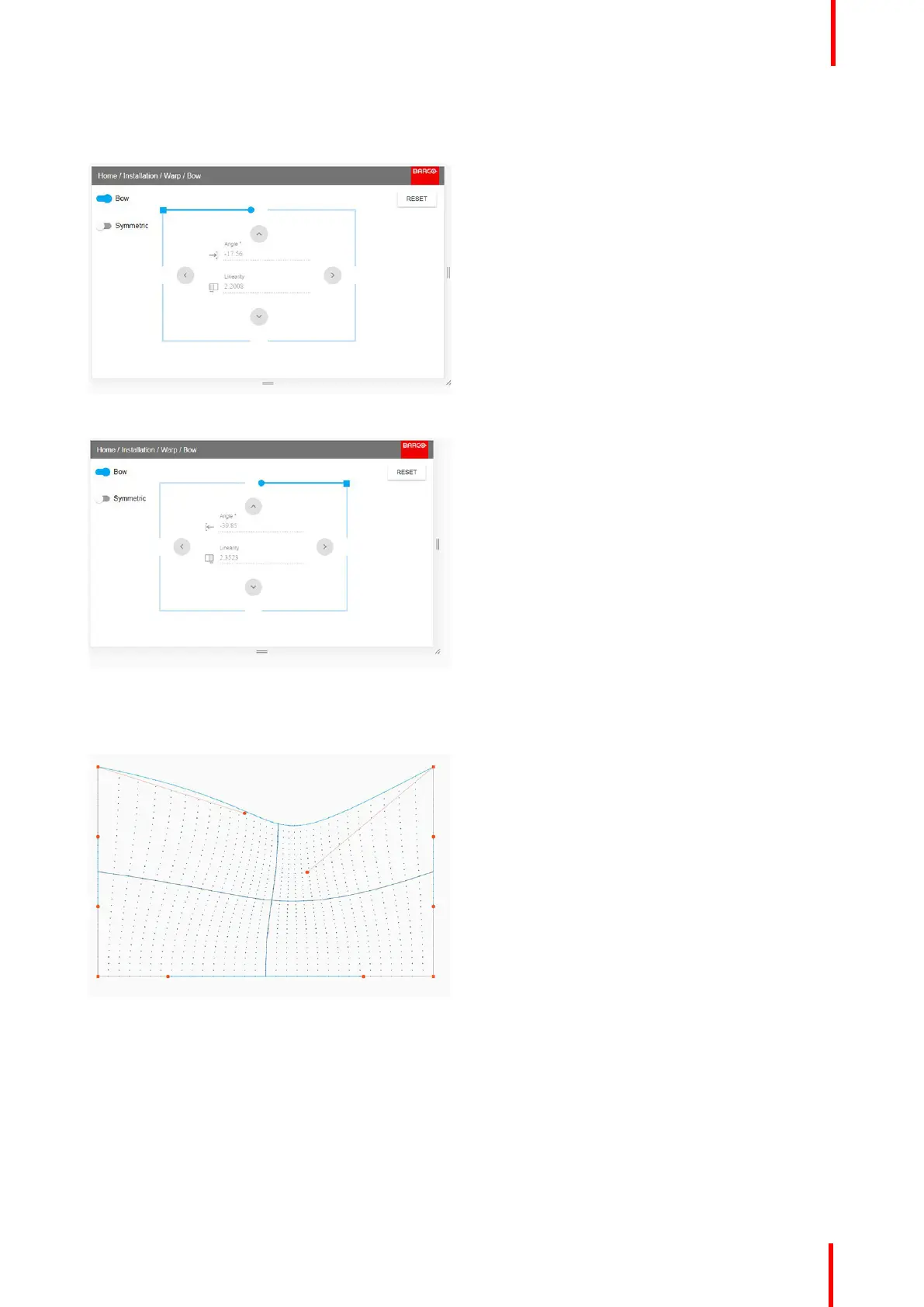

Image 8-20: Left vector of the upper side of the picture.
Image 8-21: Right vector of the upper side of the picture.
3. When corrected with values in the illustrations above, the picture will occur as shown below. Observe that the
upper side of the picture now has an asymmetric correction.
Image 8-22: Asymmetric bow correction
4. Repeat the step for each side of the picture that must be corrected.
