R5906852-01 F80 series 85

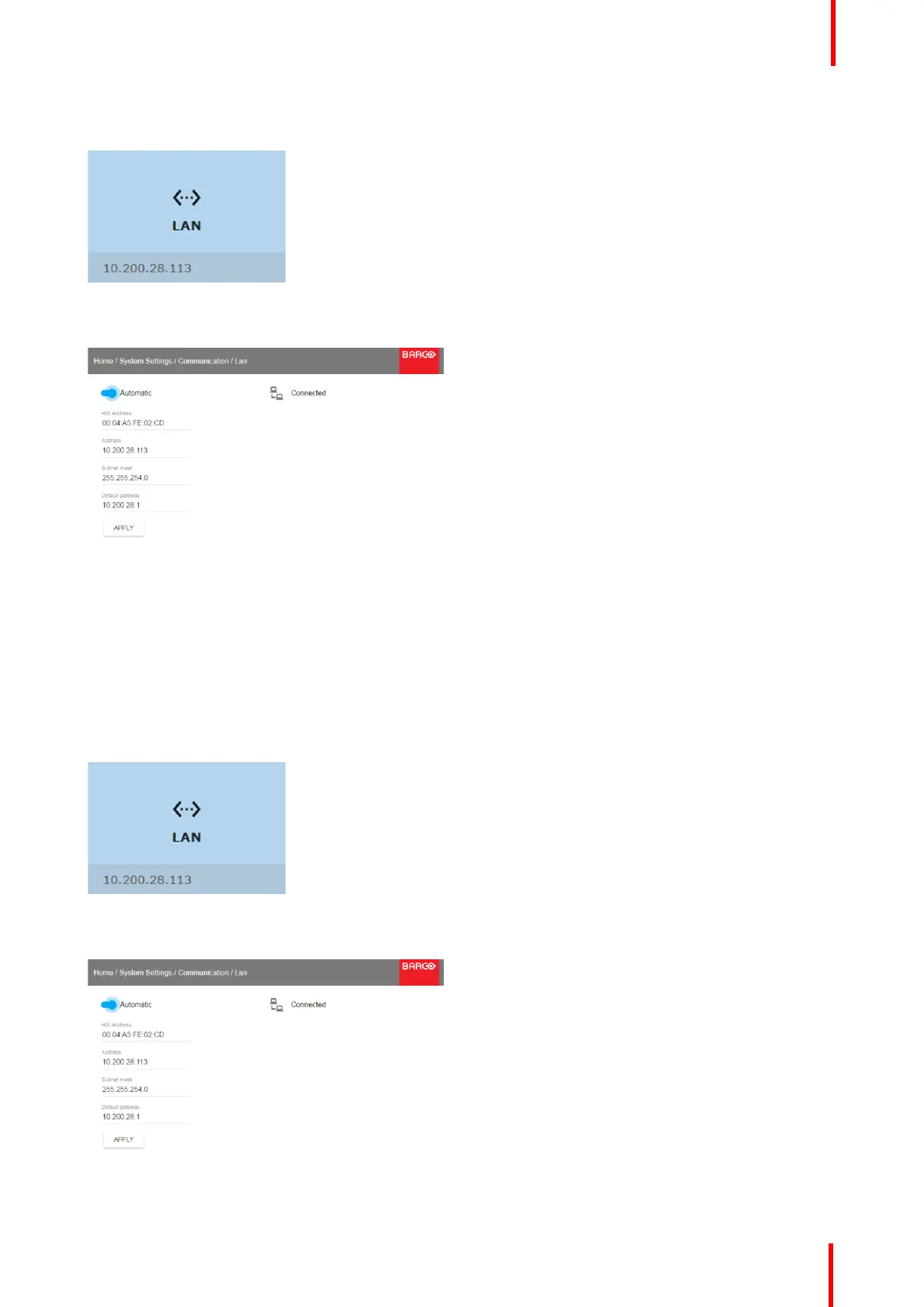

Image 9-1: Communication menu, LAN
The LAN menu is displayed
Image 9-2: LAN menu
2. To enable Automatic, put the switch to the right. The color of the switch becomes blue.
An automatic IP is assigned.
When connected, it is indicated with the connection symbol and the indication Connected.
3. Select APPLY and click OK.
How to manually set up the IP address
1. In the main menu, select System Settings → Communication → LAN.
Image 9-3: Communication menu, LAN
The LAN menu is displayed
Image 9-4: LAN menu
2. Disable Automatic. Put the switch to the left. The switch becomes gray.
GUI – System Settings
