12. Alignment menu
Adjustable overlapping area
50%
100%
50%
100%
image 2image 1
image 2image 1
Light output per image
Total composite light output

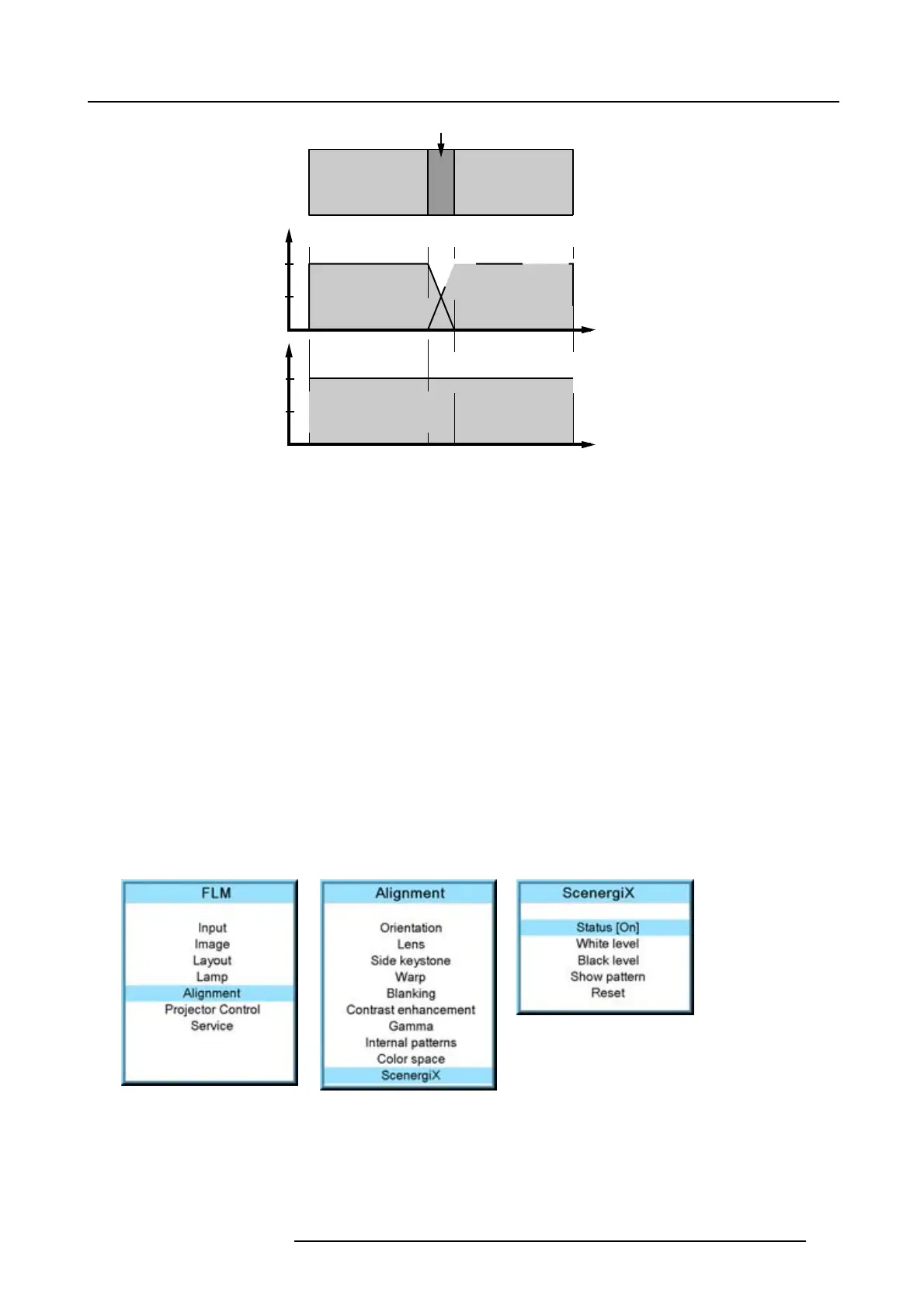

Image 12-74
ScenergiX Basic Principle
12.11.2 Preparations
ScenergiX Preparations
To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors:
• Convergence
• Geometry
• Color Matching (Color Temperature, Color Standard, Input Balance, Gamma)
12.11.3 ScenergiX activation
How to activate?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select ScenergiX and press ENTER.
4. Use the ▲ or ▼ key to select Status and press ENTER to toggle between [On] and [Off].
On ScenergiX is active
Off ScenergiX is not active
Image 12-75
Image 12-76
Image 12-77
R59770179 FLM R22+ 15/03/2010 135
