22. Specifications
Specifi cations
• SD SMPTE 259M-C and HD SMPTE 292M input data
• 2 inputs (BNC), 1 active loop-through output (BNC) of selected input
• Automatic selection of active input with manual override
• 10 bit digital output
• Diagnostic LED’s on front panel:
- Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
• SDI: 270 Mbit/s transmission (SMPTE 259M-C).
• SDI: 525/625 interlaced.
• Coax (75 Ohm).
• Supported HDSDI standards:
- Progressive:
o
1280x720/60/1:1/ (SMPTE 296M)
o
1280x720/59.94/1:1/ (SMPTE 296M)
o
1920x1080/30/1:1/ (SMPTE 274M)
o
1920x1080/29.97/1:1/ (SMPTE 274M)
o
1920x1080/25/1:1/ (SMPTE 274M)
o
1920x1080/24/1:1/ (SMPTE 274M)
o
1920x1080/23.98/1:1/ (SMPTE 274M)
- Interlaced:
o
1920x1035/60/2:1/ (SMPTE 260M)
o
1920x1035/59.94/2:1/ (SMPTE 260M)
o
1920x1080/60/2:1/ (SMPTE 274M)
o
1920x1080/59.94/2:1/ (SMPTE 274M)
o
1920x1080/50/2:1/ (SMPTE 274M)
o
1920/1080/50/2:1 (1250)/ (SMPTE 295M)
o
1920x1080/24/Segmented/ (SMPTE 274M)
o
1920x1080//23.98/Segmented/ (SMPTE 274M)
22.4 Specifications FLM DVI input

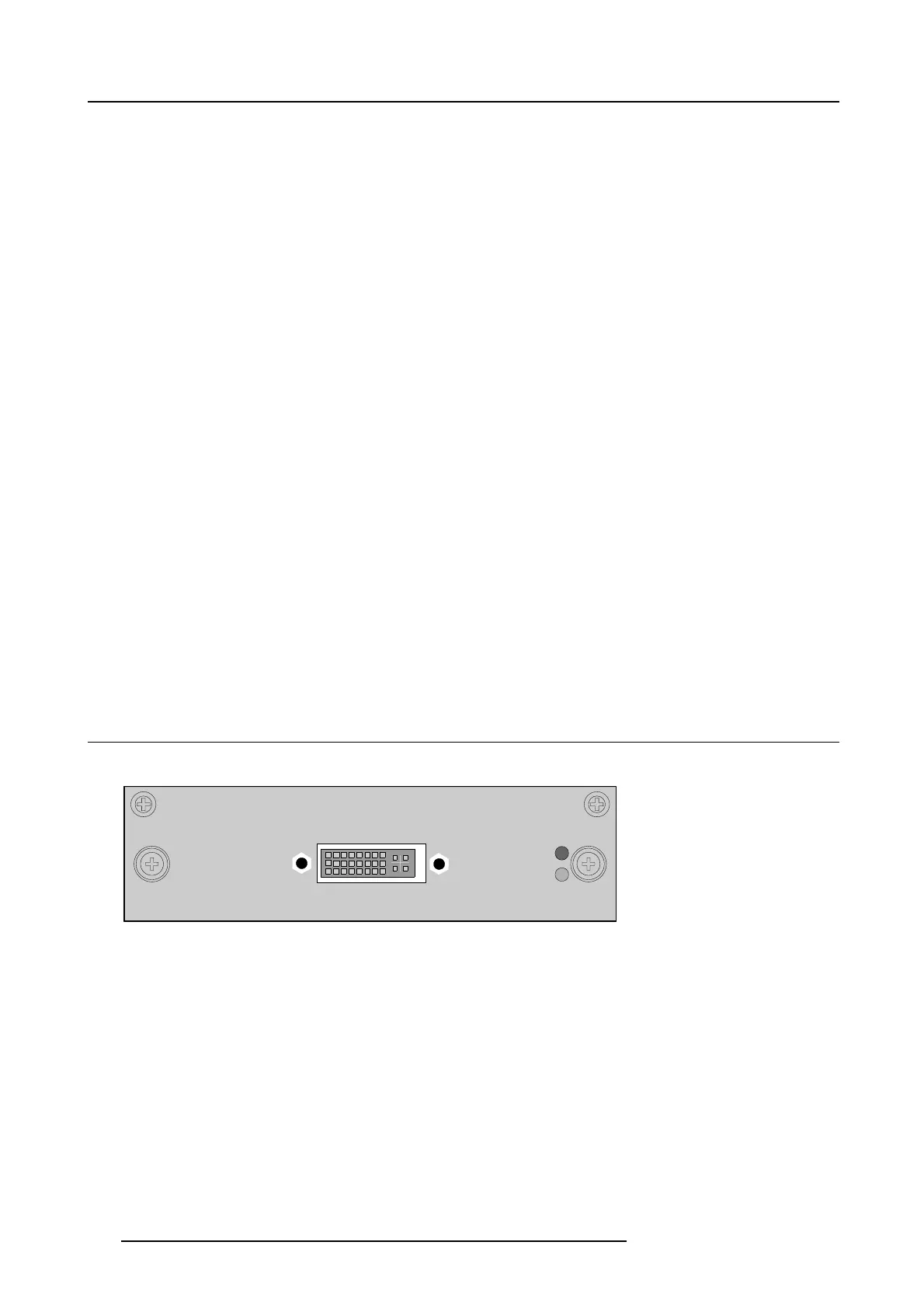

Input front view
Sync OK
Sel
DVI input
Image 22-3
Specifi cations
• DVI type: DVI-I (DVI-Integrated), but the analog signals are not supported. Single-link configuration.
• Single link dvi for pixelclocks up to 165MHz
• Vertical frequencies: 24 - 75 Hz
• Horizontal frequencies: 20 - 90 kHz
• Supported resolutions: up to UXGA (1600 x 1200) at 60 Hz.
• Cable lengths: up to 3 meter at UXGA speed.
• Compliance: DDC2B support according to VESA EDID Version 1.2
• Diagnostic LED’s on front panel:
- Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
