Barco FLM R22+ - Projector address

12. Alignment menu

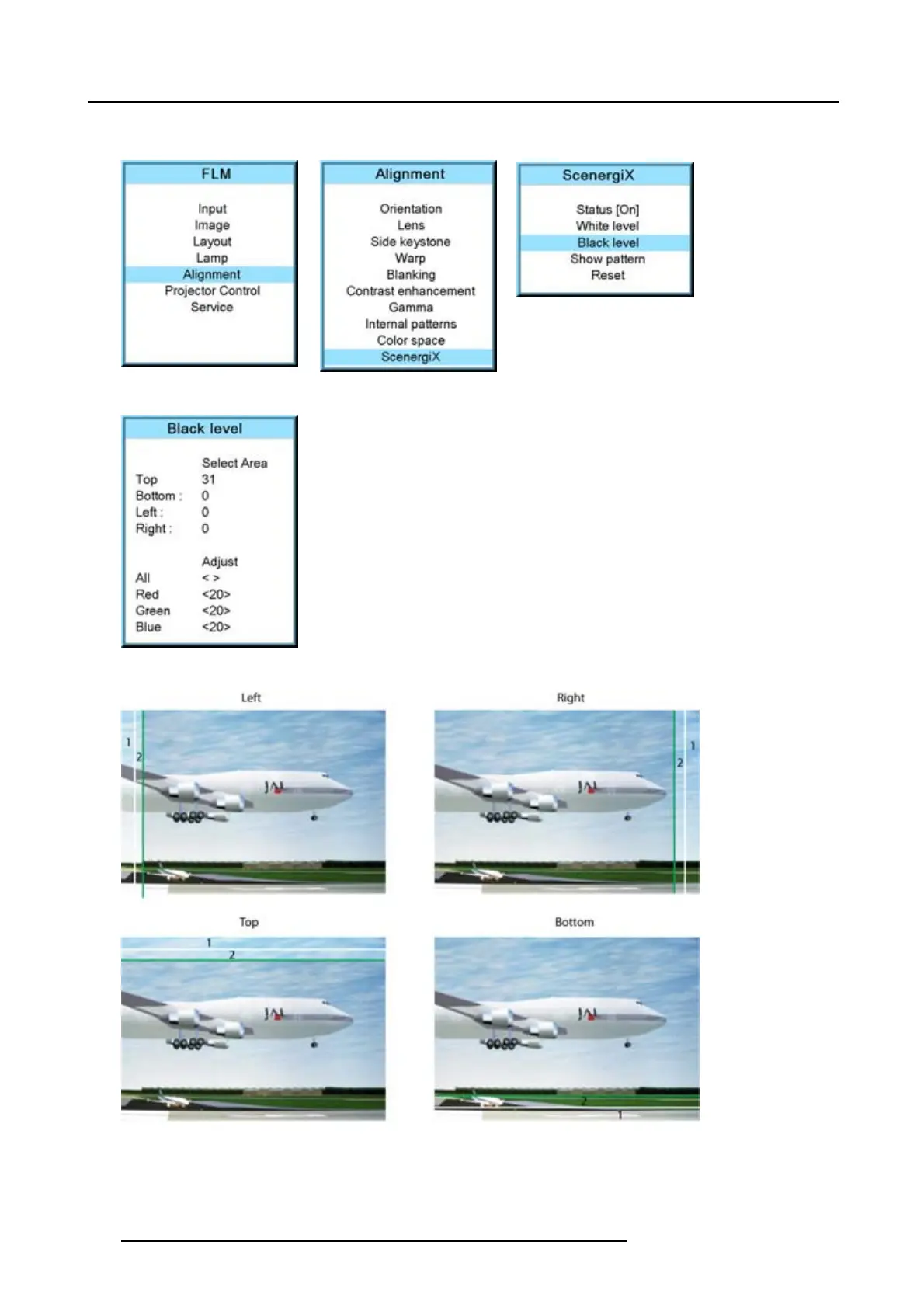

5. Use the ▲ or ▼ key to select one of the four size adjustments and press ENTER.
Image 12-106
Image 12-107
Image 12-108
Image 12-109
Image 12-110
DLP leakage area
1 Overlap area
2 DLP Leakage area
6. Use the cursor keys to move the green border line to the desired position.
142
R59770179 FLM R22+ 15/03/2010
