2.4.3 USB type A connector
Overview

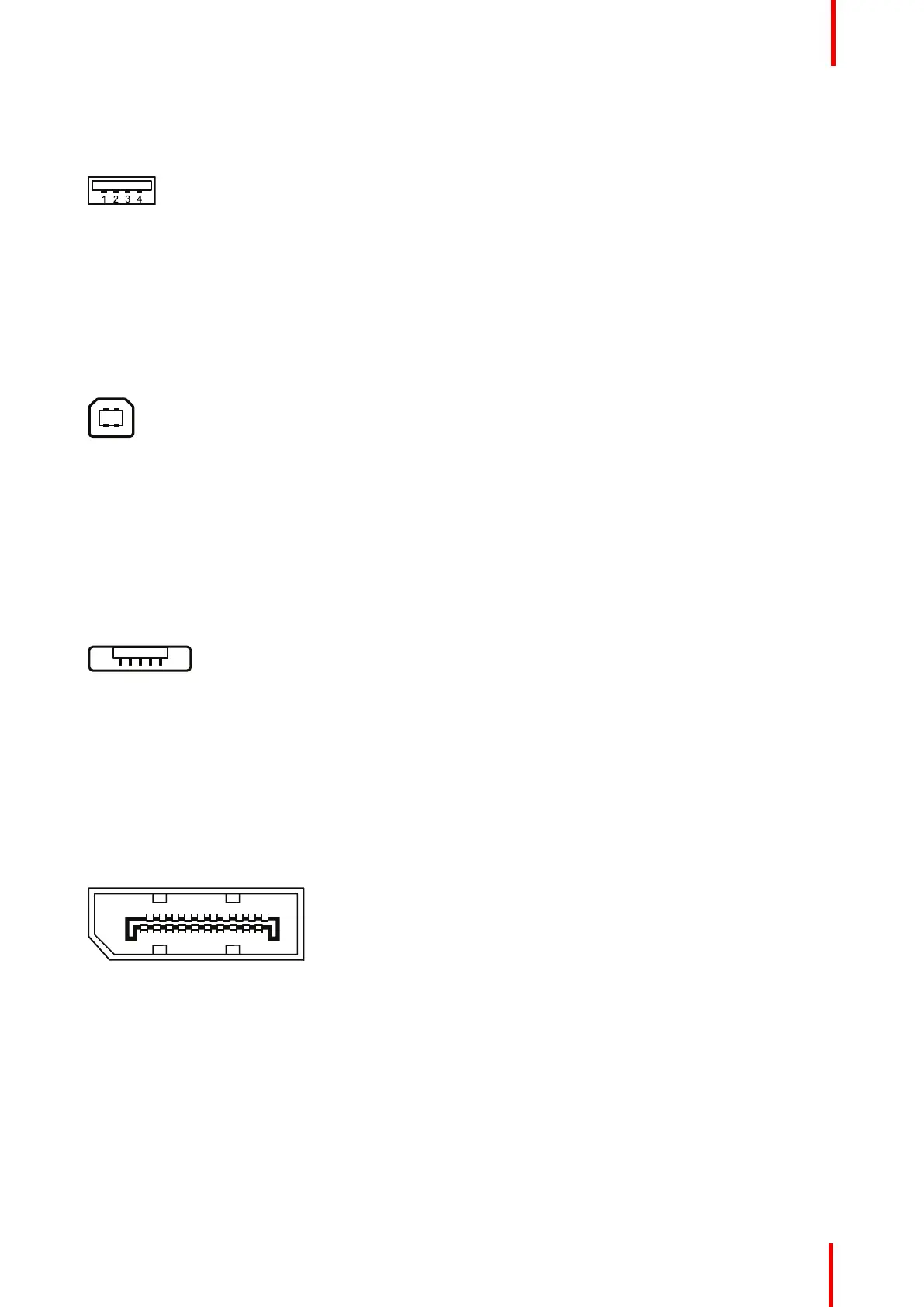

Image 2-6
1. +5 VDC
2. Data -
3. Data +
4. GND
2.4.4 USB type B connector
Overview
1 2
3 4
Image 2-7
1. Data -
2. +5 VDC
3. Data +
4. GND
2.4.5 Micro-USB connector
Overview
12345
Image 2-8
1. +5 VDC
2. Data -
3. Data +
4. GND
5. Not connected
2.4.6 DisplayPort connector
Overview (sink side pin-out)
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Image 2-9
1. ML_Lane 3 (n)
2. GND
3. ML_Lane 3 (p)
4. ML_Lane 2 (n)
5. GND
6. ML_Lane 2 (p)
7. ML_Lane 1 (n)
8. GND
9. ML_Lane 1 (p)
10.ML_Lane 0 (n)
