Barco MDSC-8231 User Manual

R5911692 /01 MDSC-823120

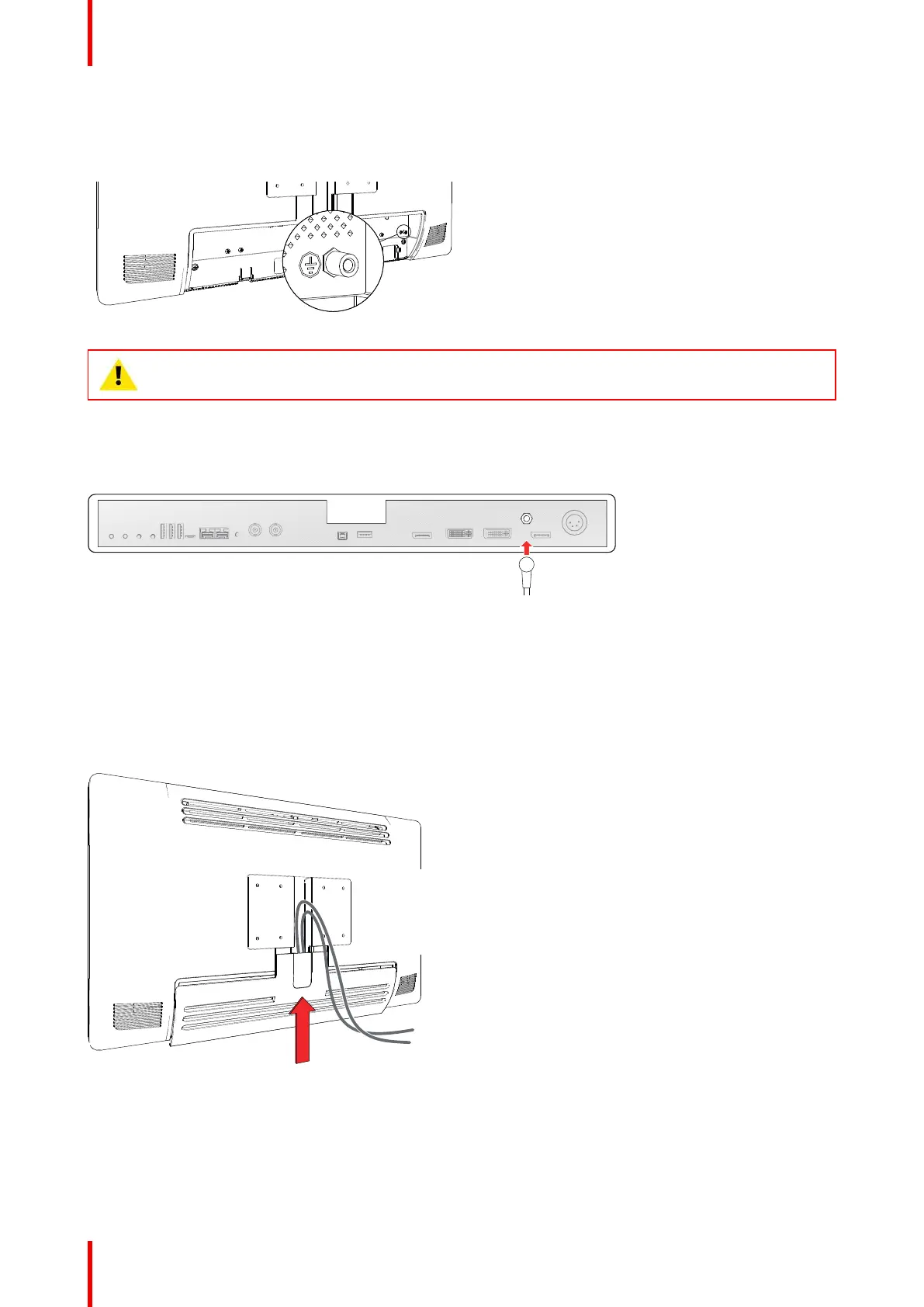

Protective earth
Earth the MDSC-8231 by connecting the protective earth pin to a grounded outlet by means of a yellow/green
AWG18 wire (maximum admitted cable length according to national regulation requirements).
Image 3-4
CAUTION: The display must be earthed.
Potential equalization
When potential equalization between the display and other devices is required then connect the potential
equalization pin (POAG) to the potential equalization terminal of the equipment.
Image 3-5
3.4 Cable routing
To route the cables
For displays to be mounted on a VESA arm with internal cable routing provisions, route all cables through the
cable routing channel, then reinstall the connector compartment without removing the expansion clip.
Image 3-6
For displays to be mounted on a VESA arm or stand without internal cable routing provisions, first remove the
expansion clip from the connector compartment cover, then route all cables through it while reinstalling the
cover.
Installation

Barco MDSC-8231 Specifications

General

Panel type	IPS-Pro
Color gamut	96 %
Pixel pitch	0.1704 x 0.1704 mm
Screen shape	Flat
Response time	20 ms
Display diagonal	31.1 \
Display resolution	4096 x 2160 pixels
Display technology	LED
Native aspect ratio	17:9
Maximum refresh rate	- Hz
Viewable size, vertical	368 mm
Contrast ratio (typical)	1400:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	698 mm
Display brightness (typical)	550 cd/m²
Supported graphics resolutions	4096 x 2160
DVI-D ports quantity	1
USB upstream port type	USB Type-B
Panel mounting interface	100 x 100, 200 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (off)	1 W
Power consumption (standby)	- W
Power consumption (typical)	18 W
Package weight	17000 g
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014 CAN/CSA-C22.2 No. 60601-1 (2014) IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + A1:2012 EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014 EMC: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 15 B (B) GB17625.1-2012; GB4943.1-2011; GB/T9254-2008 CE, c-UL-us, DEMKO, CCC, INMETRO, EAC IP20/IP45 ROHS-3, REACH, WEEE
Product color	White
Market positioning	Medical
Sustainability certificates	RoHS

Weight and Dimensions

Depth (without stand)	93 mm
Width (without stand)	777 mm
Height (without stand)	472 mm
Weight (without stand)	12100 g
