Barco MDSC-8231 - 2.4.7 HDMI connector; 2.4.8 DC out connector

R5911692 /01 MDSC-823116
11. GND
12.ML_Lane 0 (p)
13.CONFIG1
14.CONFIG2
15.AUX CH (p)
16.GND
17.AUX CH (n)
18.Hot Plug
19.Return
20.DP_PWR (+3.3 VDC @ 500 mA max)

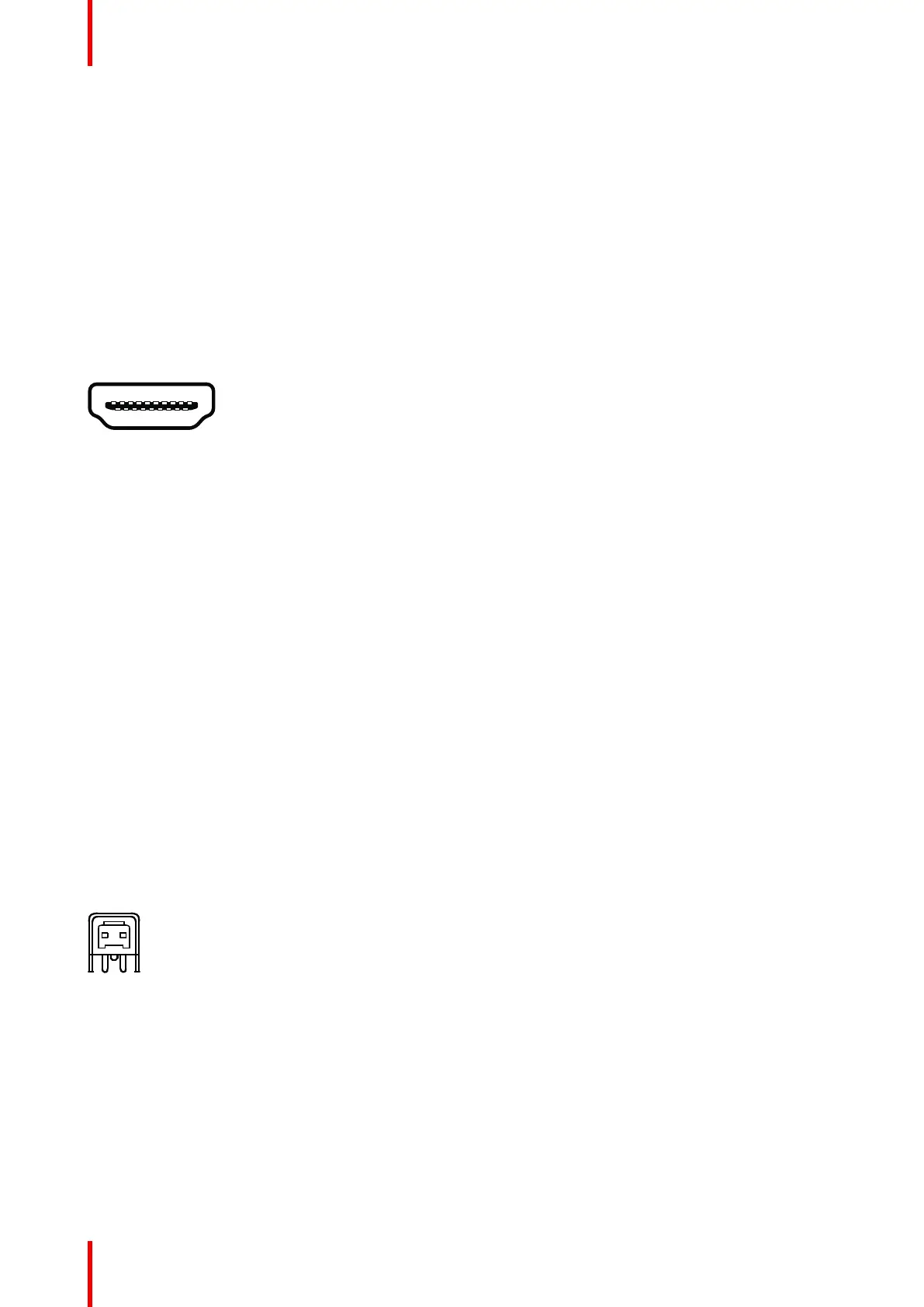

2.4.7 HDMI connector
Overview
1
24681012141618
35791113151719
Image 2-10
1. T.M.D.S. Data2+
2. T.M.D.S. Data2 Shield
3. T.M.D.S. Data2-
4. T.M.D.S. Data1+
5. T.M.D.S. Data1 Shield
6. T.M.D.S. Data1-
7. T.M.D.S. Data0+
8. T.M.D.S. Data0 Shield
9. T.M.D.S. Data0-
10.T.M.D.S. Clock+
11. T.M.D.S. Clock Shield
12.T.M.D.S. Clock-
13.CEC
14.Not connected
15.DDC_SCL
16.DDC_SDA
17.DDC/CEC GND
18.+5VDC POWER
19.HDP
2.4.8 DC out connector
Overview
1 2
Image 2-11
1. +5 VDC
2. GND
Parts, controls and connectors
