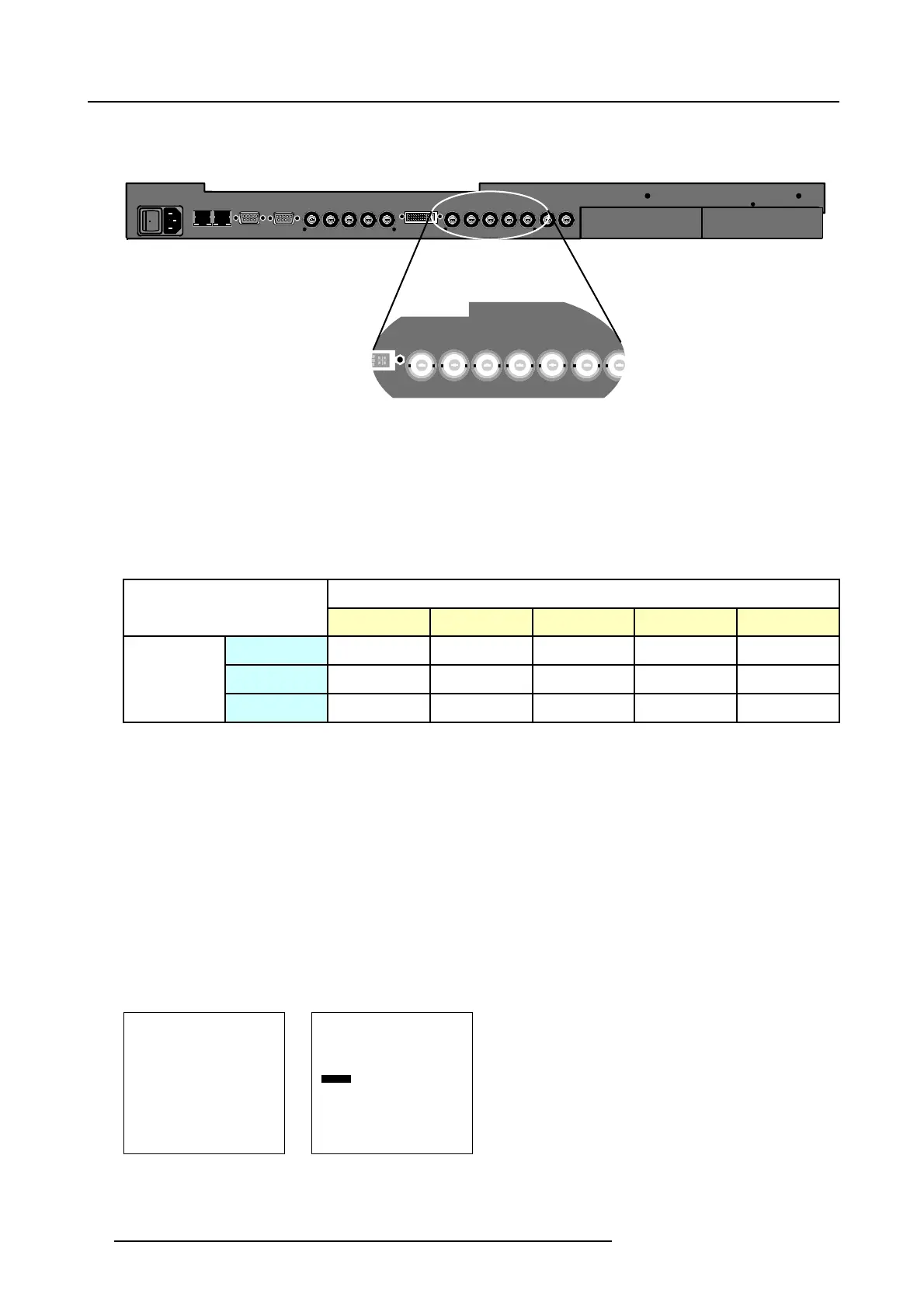

3. Connections
3.2.3 RGB analog input
Input specifications
DVI
RGB out (1280x768)
RGBHV
RS232
OUT IN
LAN
RGB analog
R
GB
HVINOUT
SDI
RGB analog
R
GB
HVINOUT
SDI
Image 3-3
RGB analog input
Pixel clock : 20 .. 165 MHz
Horizontal sync range : 15 .. 110 kHz
Vertical sync range : 23 Hz .. 125 Hz
Max input format : UXGA (1600x1200) @ 60 Hz
RGBHV inputs : 0.7V
pp
±3 dB
Possible input sources
Inputs
R
G
B H V
RGBHV
R
G
B H V
RGBS
R
G
B
S
-
RGB inputs
RG
s
B
R
G
s
B
- -
How to select the RGB
source via the RCU?
1. Press 6 on the RCU.
The system scans the RGB analog input for a RGB input signal and detects automatically the sync.
How to select the RGB source via the menu structure
1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.
The main menu will be displayed on the screen. (menu 3-3)
2. Turn the thumb wheel or use the up or down arrow keys to select Inpu t selection.
The input selection m
enu will be displayed. (menu 3-4)
3. Turn the thumb wheel or use the up or down arrow keys to select 6RGB.
4. Press the thumb wheel or press ENTER on the RCU.
The internal system detects automatically the sync position (separate sync or sync on green).
Main Menu
Input selecti
on
Image settings
Audio settings
Compact PC Contro
l
Advanced settings
Installation
Service
Standby
Back
Menu 3-3
Input Selection
1. Video
2. RGB
3. S-Video
4. HD-SDI/DVI/Au
dio/RGB
5. SDI
6. RGB
7. DVI
8. Compact PC
Configure input 2
Back
Menu 3-4
12 R5976672 SOLARIS LC40 01122003
