3. Connections
DVI
RGB out (1280x768)
RGBHV
RS232
OUT IN
LAN
RGB analog
R
GB
HVINOUT
SDI
RGB out (1280x768)
RGBHV
Image 3-9
RGB out on panel resolution
3.4 Communication Connections
3.4.1 RS232 IN/OUT
What can be connected to the RS232 IN connection ?
The RS232 IN connection allows the Solaris LC40 to communicate with a computer e.g. IBM PC or Apple Macintosh.
RS232IN
Control PC
RS232
RS232IN RS232OUT

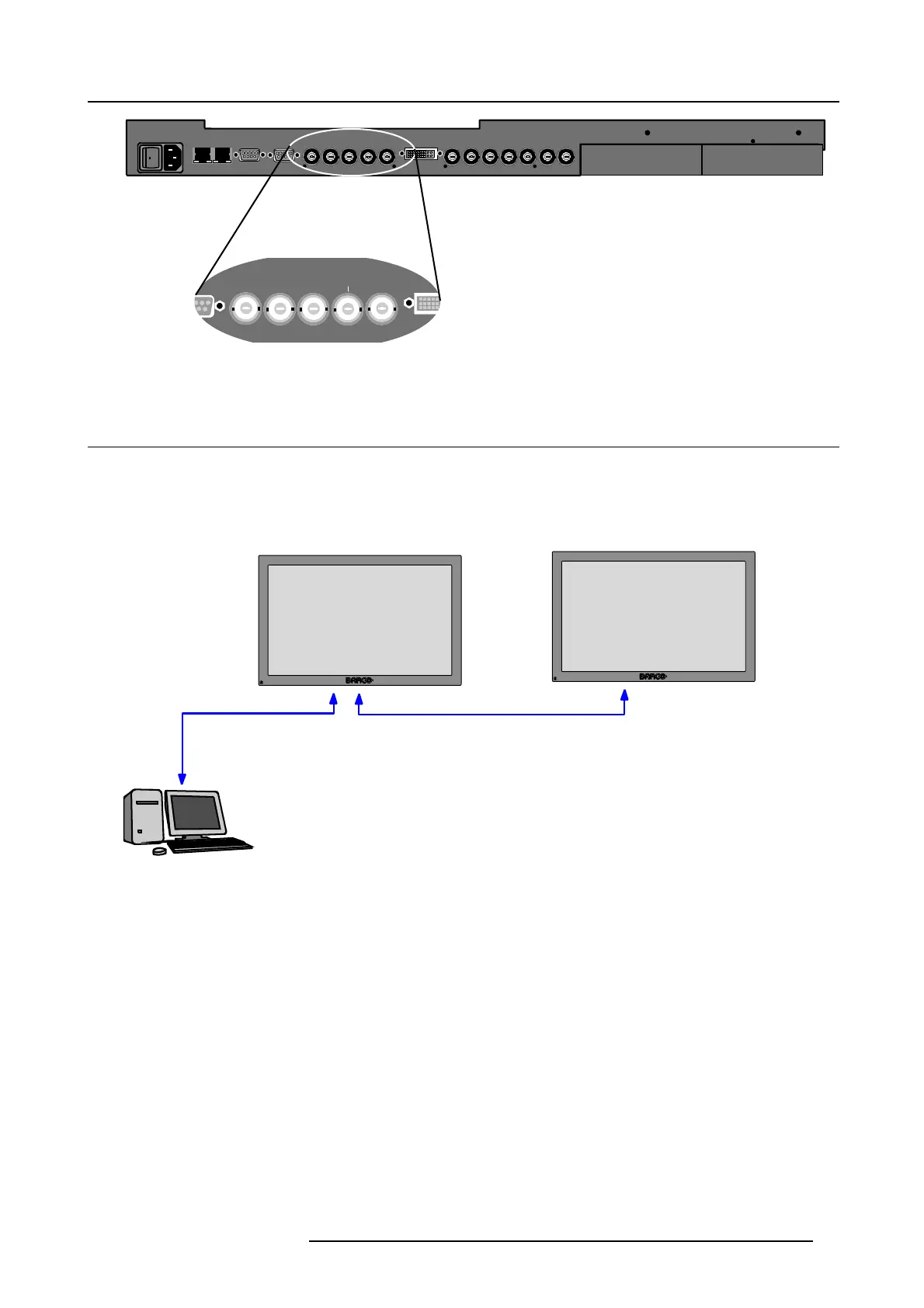

Image 3-10
RS232 connection
Applications of the RS232 connectio
n
Remote control:
• easy adjustment of LCD panel via IBM PC (or compatible) or MAC connection.
• RS232 address range from 0 to 255.
• allow storage of multiple LCD panel configurations and set ups.
• wide range of control possibilities.
RS232 OUT
To make a loop through connection with other Solaris LC40’s.
3.4.2 LAN connection
What can be done?
The Solaris LC40 can be connected to a LAN (local area network) (ethernet). Once connected to the LAN, users are capable of
accessing the LCD panel from any location, inside or outside their company network by using a simple TCP/IP protocol.
The second LAN connector permits
to loop through to the next panel in the chain. Each panel in the chain needs a unique IP address.
