3. Connections
3.2.8 HD-SDI input module (optional)
Specifications
IN
OUT
HD-SDI

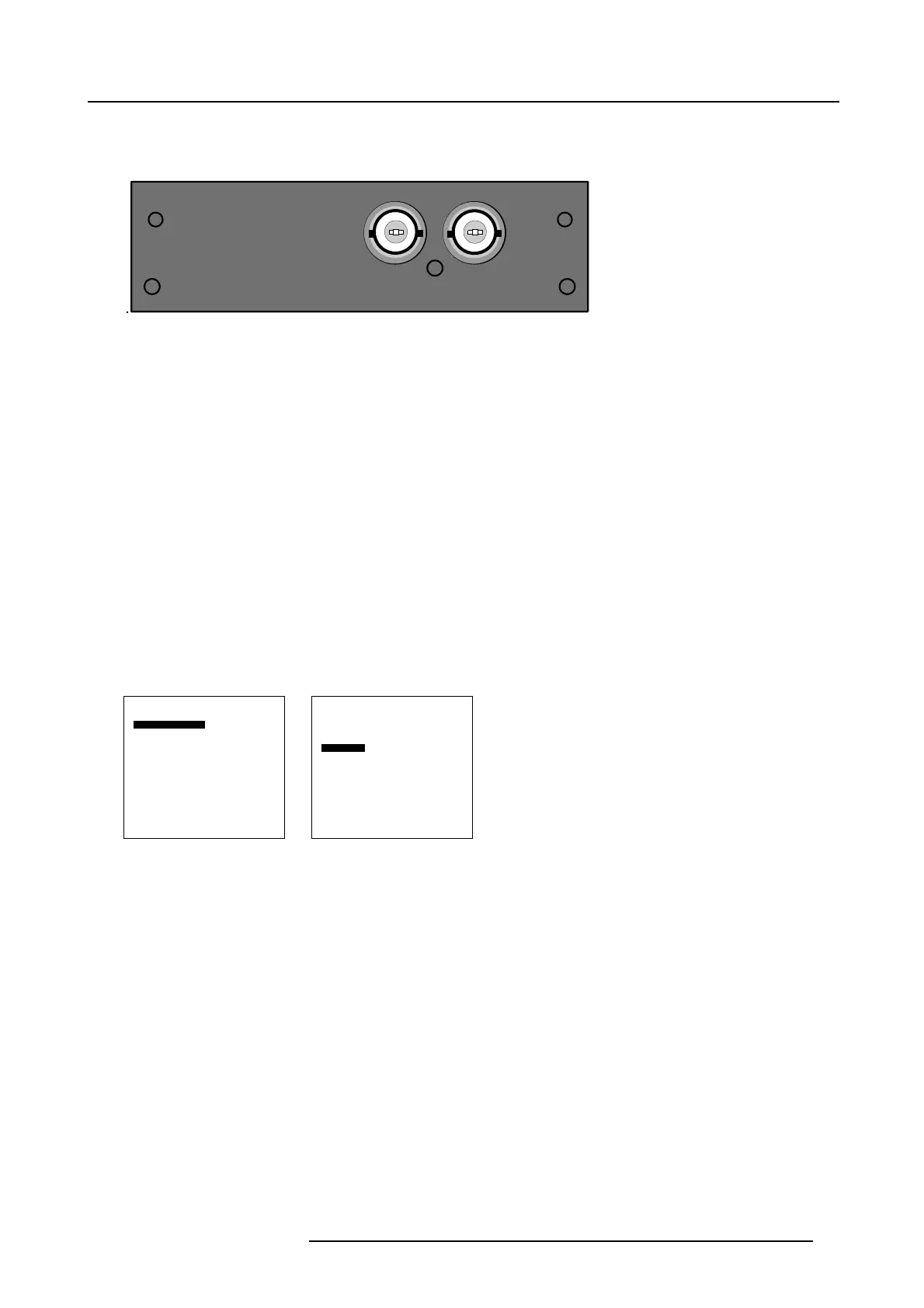

Image 3-7
HD-SDI input module
HD-SDI input : BNC
HD-SDI output : BNC (= loop through)
Typical : 0.8 V
pp
75 Ω terminated
Output impedance : 75 Ω
How to select with the RCU.
1. Press 4 on the RCU
How to select the HD-SDI input via the menu structure?
1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.
The main menu will be displayed on the screen. (menu 3-16)
2. Turn the thumb wheel or use the up or down arrow keys to select Inpu t selection.
The input selection menu will be displayed. The correct input will be filled out immediately in input selection 4. (menu 3-17)
3. Turn the thumb wheel or use the up or down arrow keys to select 4 HD-SDI.
4. Press the thumb wheel or press ENTER on the RCU.
Main Menu
Input selection
Image settings
Audio settings
Compact PC Control
Advanced settings
Installation
Service
Standby
Back
Menu 3-16
Input Selection
1. Video
2. RGB
3. S-Video
4. HD-SDI
5. SDI
6. RGB
7. DVI
8. Compact PC
Configure input 2
Back
Menu 3-17
3.2.9 RGB input module (optional)
Specifications
RGBHV inputs : 0.7V
pp
±3 dB
How to select with the RCU.
1. Press 4 on the RCU
R5976672 SOLARIS LC40 01122003
17
