Barco Solaris LC40 R9004120 - Serial Digital Interface; Compact PC Module

3. Connections
3.2.4 Serial Digital Interface
Specifications
DVI
RGB out (1280x768)
RGB HV
RS232
OUT IN
LAN
RGB analog
R
GB
HVINOUT
SDI
RGB analog
B
HVINOUT
SDI

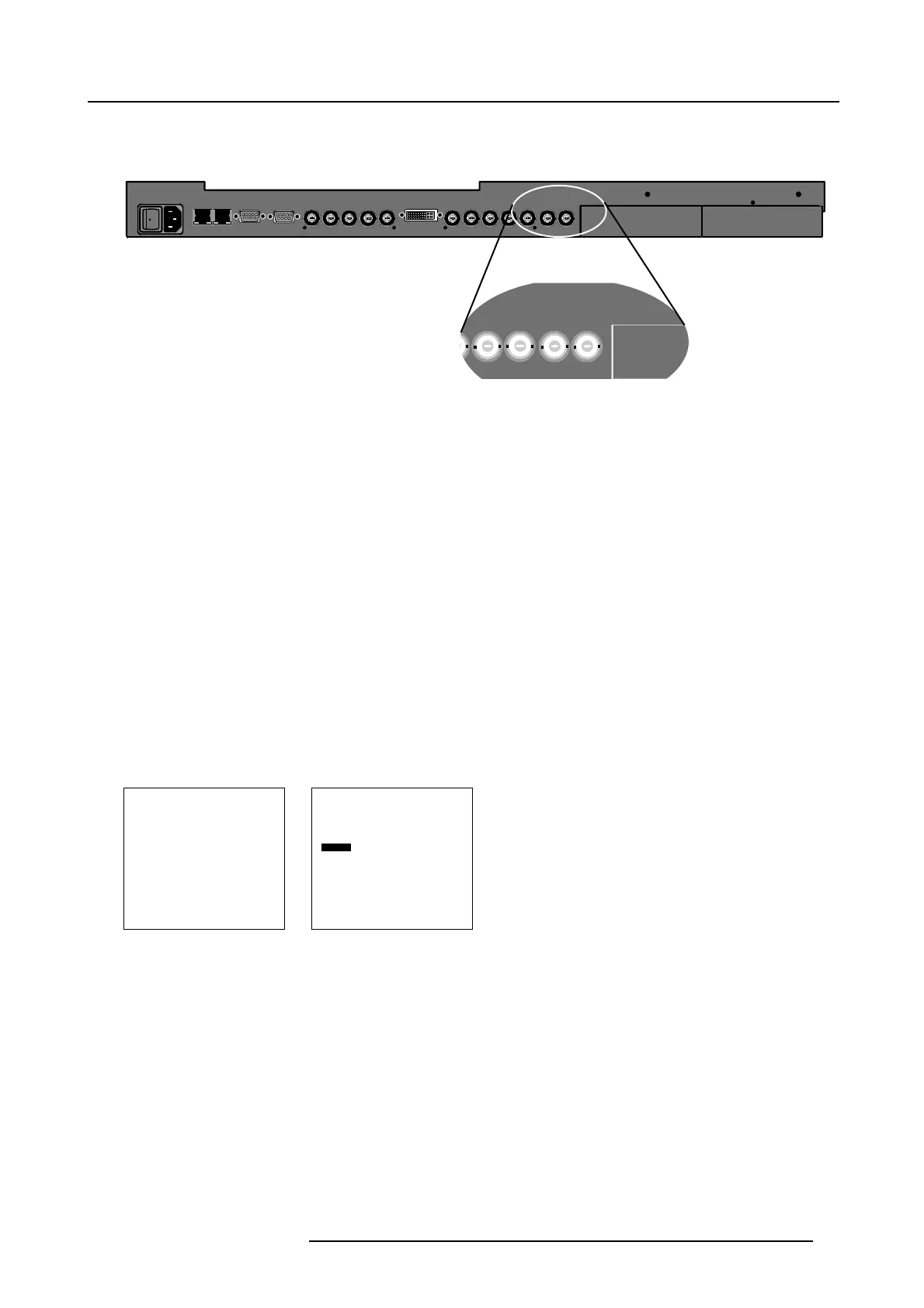

Image 3-4
SDI input
SMPTE259M compatible serial digital signals only.
SDI input : BNC
SDI output : BNC (= loop through)
Typical : 0.8 V
pp
75 Ω terminated
Output impedance : 75 Ω
How to select the SDI input with the RCU?
1. Press 5 on the RCU
How to select the SDI input via the menu structure?
1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.
The main menu will be displayed on the screen. (menu 3-5)
2. Turn the thumb wheel or use the up or down arrow keys to select Inpu t selection.
The input selection menu will be displayed. (menu 3-6)
3. Turn the thumb wheel or use the up or down arrow keys to select 5SDI.
4. Press the thumb wheel or press ENTER on the RCU.
Main Menu
Input selection
Image settings
Audio settings
Compact PC Control
Advanced settings
Installation
Service
Standby
Back
Menu 3-5
Input Selection
1. Video
2. RGB
3. S-Video
4. HD-SDI/DVI/Audio/RGB
5. SDI
6. RGB
7. DVI
8. Compact PC
Configure input 2
Back
Menu 3-6
3.2.5 Compact PC module
Overview
The compact PC module is internally connected display. No external source connections are necessary. When input 8 is selected,
the compact PC image will be displayed on the screen.
How to select with the RCU.
1. Press 8 on the RCU
