5. ICMP
21
Image 5-2
1ICMP

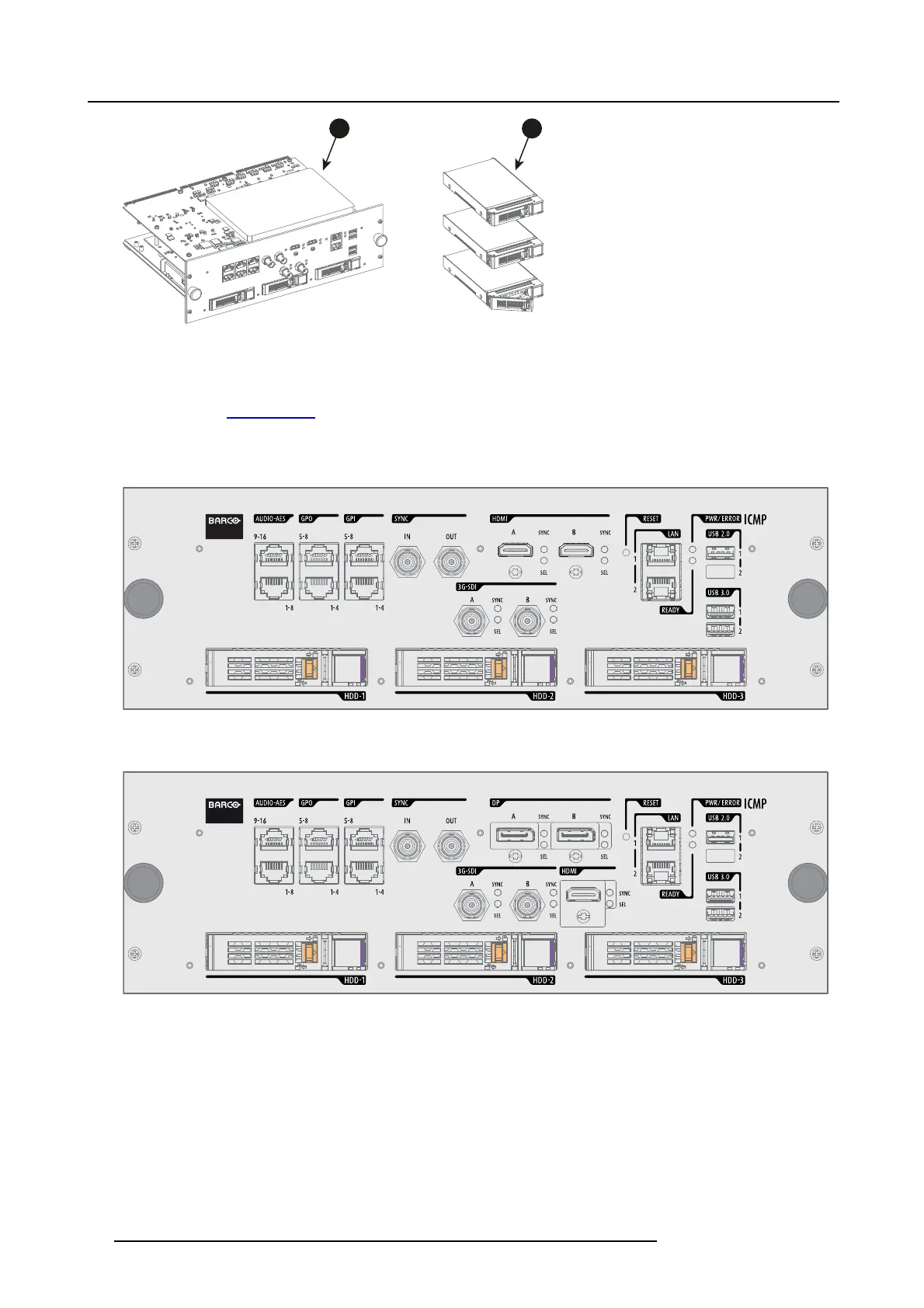

2 HDDs for ICMP
As an integrated com ponent of the projector, installation and maintenance of the ICMP requires the s ame skills and the same pre-
cautions as an intervention on the projector itself.
For o rder info see w
ww.barco.com.
Front face of the ICMP
The last produced model is equipped with two HDMI 2.0 as video source.
Image 5-3
Front face ICMP (with HDMI 2.0).
Some models with DisplayPorts and one HDMI 1.4 (mezzanine) are s till present on the field.
Image 5-4
Front face ICMP (with DisplayPort and HDMI 1.4).
Card Cage slot location
TheCardCagecanbediffer
ent depending the projector type but it always consists of a button module and several removable units.
The ICMP (reference 1) is inserted into the form er ICP slot and IMB slot above the Barco C inem a Controller ( reference 2).
