4. Input & Communication
2

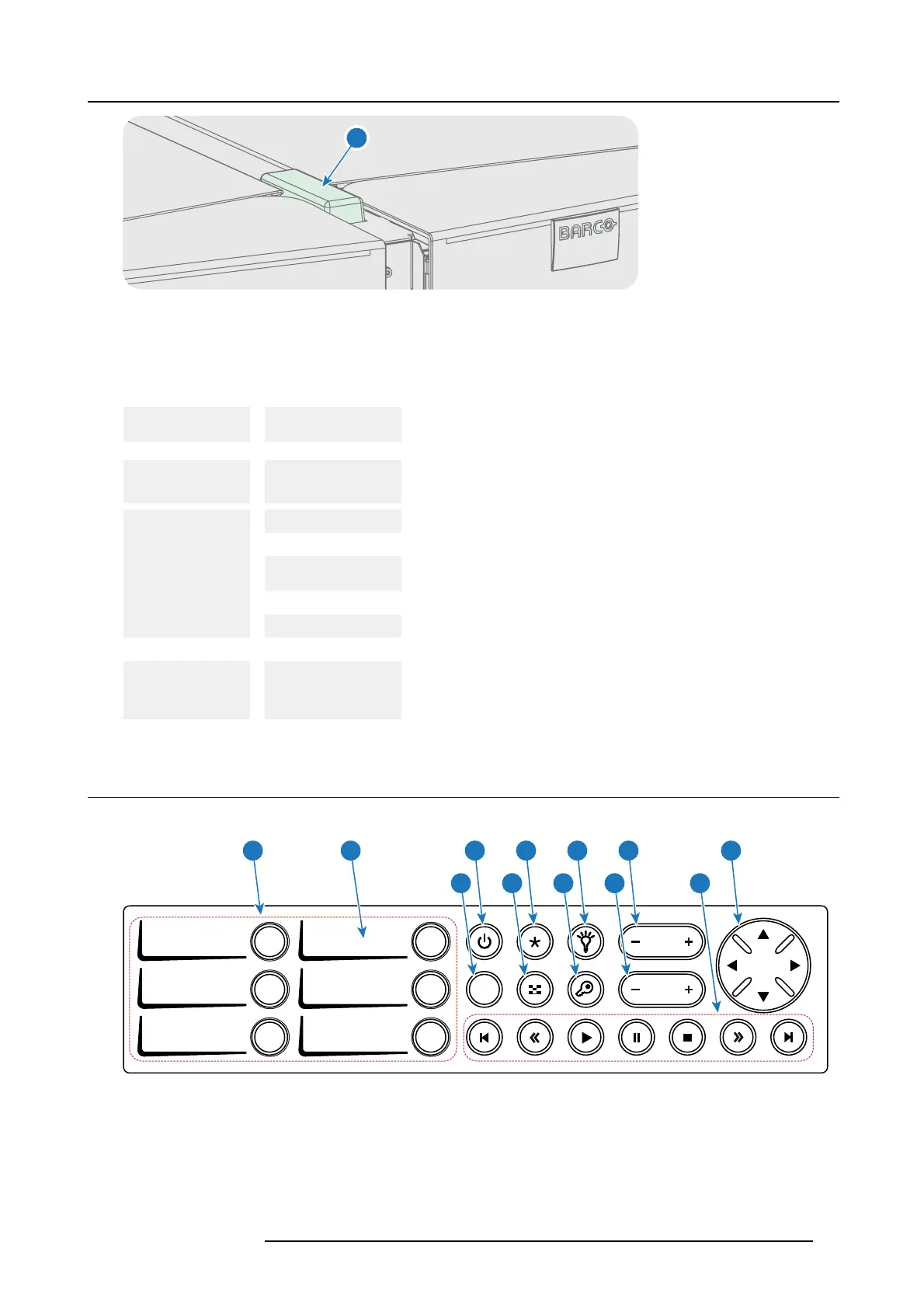

Image 4-3
Status overview
The Laser Status light has only one color: white. The combination of the Laser Status light and th
e backlight of the Power On/Off
button on the Local Keypad indicates a certain condition of the projector. See table below.
Status Light Light Button Meanin g
Off Continuous w hite or off Sealed compartments are DECONDITIONED . La sers are not activated (it
is safe for service personnel to open the com partments).
Blinking
(6 seconds)
Blinking green Indicates the start of the CONDITIONING p rocess. A fter six seconds the
status light will light up continuously.
Blinking green Ongoing CONDITIONING process. Lasers are tested
Continuous green Sealed compartments are fully CONDITIONED. Lasers are activated for
image projection.
On
Blinking white Ongoing DE C ONDITIO N ING pro cess. Lasers ca n be active on low p o w er.
Slow blinking Continuous white
or red
Not safe to open the sealed c ompartm ents due to risk of condens ation.
The external dew point of the boot area is too high.
Wait until the status light turns off and remains off.
4.4 Local Keypad
Identification of the buttons
DOWSER
1 4
2 5
3 6
ZOOM
FOCUS
SHIFT
21 3 4 5 6 7
8 9 10 11 12
Image 4-4
R5906787 THOR 26/01/2018 25
