5. ICMP
Status overview PW R/ERROR a nd READY LEDs:
1 2
PWR/ERROR
READY
ICMP Status
Off Off Turned off
Red Off Board reset or FIPS error
Blinking Green Off
Boot loader
Blinking Green Blinking Or ange Operating System s tart u p
Blinking Green Orange Security Manager - Image Integrity tests
Blinking Green
Blinking Yellow
Security Manager - Self Test
Blinking Green
Yellow
Security Manager - FPGA self-test
Green Blinking Green Starting Applications
Green Green Applications started in normal mo de
Green Orange
Applications started in degraded mode
Blinking Red
Off FIPS error
Green Blinking Orange Update ongoing
Orange Orange
Update done

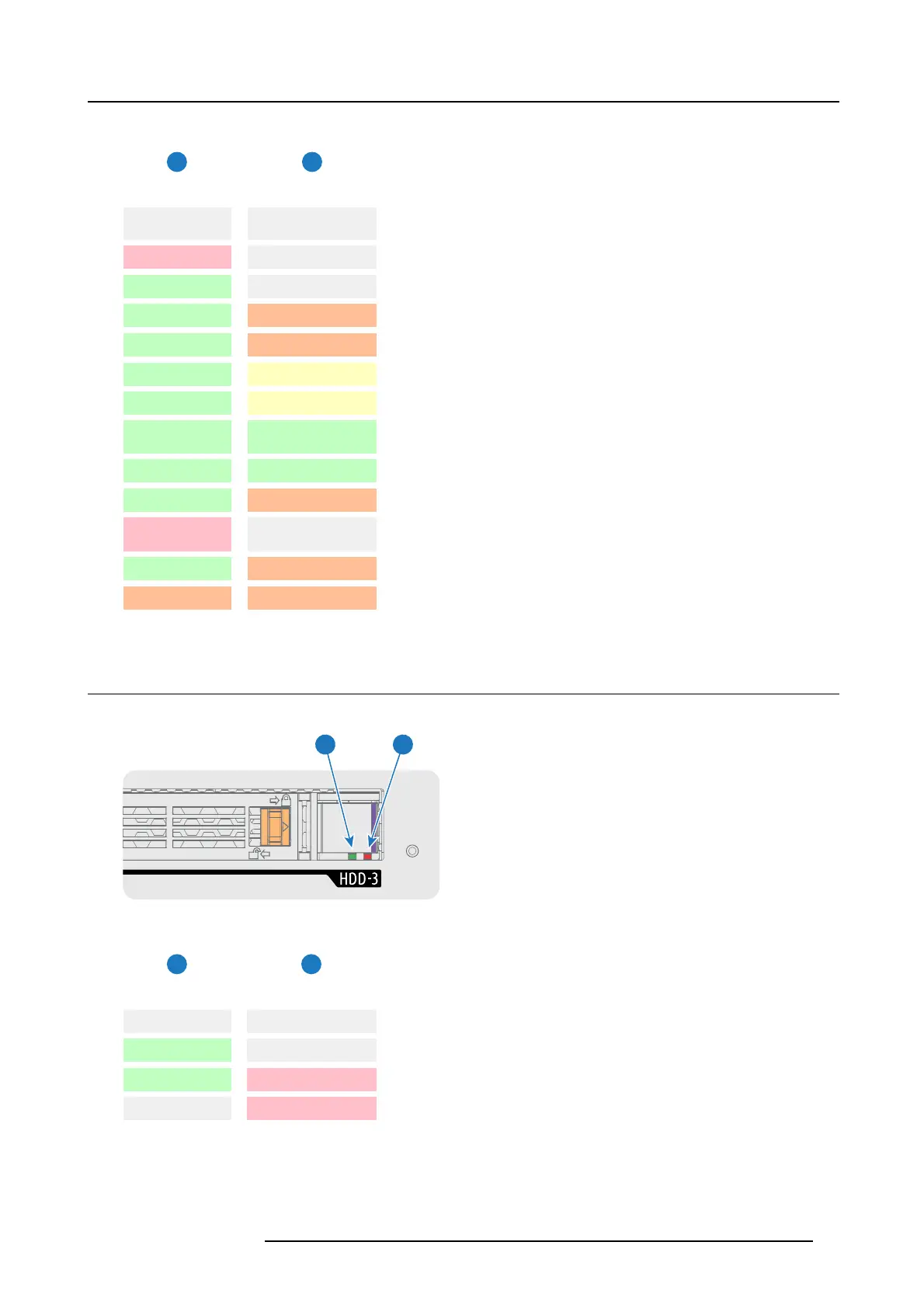

5.10 ICM P HDD status LEDs
ICMP HDD status LEDs
54
Image 5-11
Status overview PW R/ERROR a nd READY LEDs:
4 5
HDD I/O
RAID
ICMP HDD Status
Off Off HDD idle / Disk in RAID O K.
Blinking Green Off HDD I/O activity / Disk in R AID OK.
Blinking Green
Blinking Red
HDD I/O activity / R AID rebuilding.
Off
Red
HDD idle / Disk error. See troubleshooting table below for curative actions.
R5906787 THOR 26/01/2018
