BAS 100B/W - Page 17

2-6
Stands, and the other two are for the BAS Controlled Growth Mercury Electrode
(CGME) - one for the SMDE mode (
SMDE
) and one for the CGME mode
(
CGME
). The
SMDE
configuration can also be used with the PARC 303A
SMDE.
BAS C2/C3 Cell Stand
The purging and stirring functions on the BAS C3 Cell Stand can be controlled
manually or through the BAS 100B/W. The REMOTE port on the rear of the Cell
Stand is connected via a 25 pin ribbon cable to the CELL STAND port on the rear
panel of the Analyzer.
CGME
The purge and stir functions on the BAS Controlled Growth Mercury Electrode
(CGME) can be controlled manually or through the BAS 100B/W. In addition,
the knock and dispense routines required for the SMDE and CGME modes are
controlled by the BAS 100B/W, and the
Cell Stand
option in the
Setup
dialog
box must be set appropriately. The jumper on the back panel board for Line 22 of
the control cable must be in the connected position (Figure 2-5).

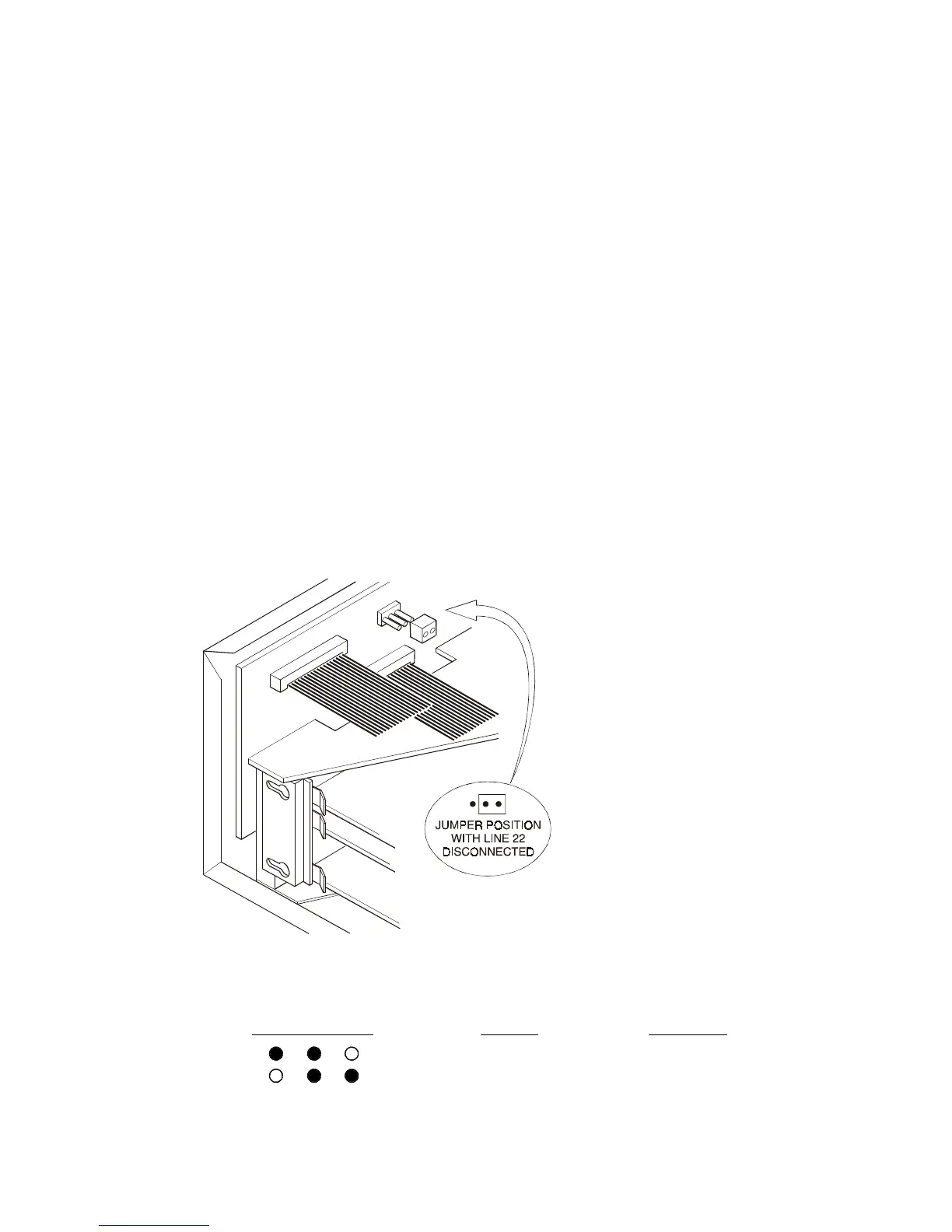

Figure 2-5.
Line 22 of the Cell Stand control cable must be disconnected via a jumper on the back
panel board of the BASI100B.
Jumper Position Line 22 Cell Stand
Connected CGME
Disconnected PAR 303A
