Installing a GigE Camera AW00061111000
14 Installation and Setup Guide for ace CL, aviator, beat, pilot, racer, runner, and scout Cameras (Windows)
However, if you use a dedicated network card, Basler recommends also disabling firewall
protection for all other profiles.
4. Select the Public Profile tab.
5. Click Customize in the State group.
The Protected Network Connections for the Public Profile window opens listing connections
where a firewall is enabled.
6. Uncheck the connections where cameras are attached to disable their firewall protections.

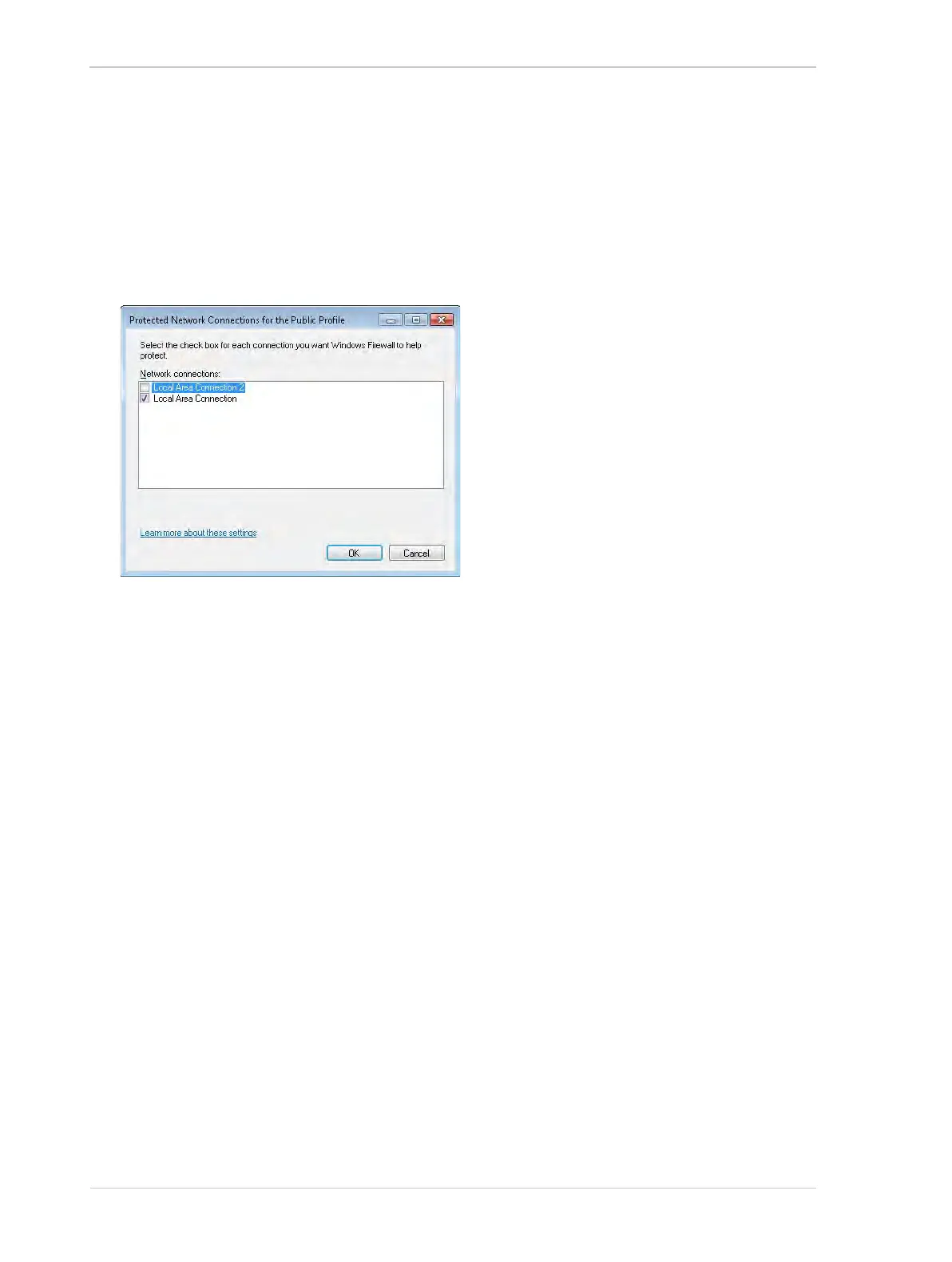

In the figure below, the firewall is disabled for Local Area Connection 2 as an example.
7. Click OK.
8. If you use a dedicated network card, also select the other tabs of in the Windows Firewall
with Advanced Security on Local Computer Properties... window and carry out steps 6 and
7 for each tab.
9. Click OK in the Windows Firewall with Advanced Security on Local Computer
Properties... window.
10. Click OK in the Windows Firewall with Advanced Security window.
The firewall is disabled where necessary.
4.3.2.3 Disabling the Windows Firewall via the netsh Command Line
Utility
1. Open the command shell window:
Windows 7: Click Start > All Programs > Accessories, right click Command Prompt and
click Run as administrator in the context menu. This will run the command shell as an
administrator shell.
Windows 8 or higher: Right-click on the bottom-left corner of the screen, then click
Command Prompt (Admin). This will run the command shell as an administrator shell.
2. Enter netsh advfirewall set allprofiles state off
3. Press the Enter key.
The firewall is disabled for all profiles. It is not possible to use netsh for disabling the firewall for
selected connections only.
