Basler GigE VISION CAMERAS User Manual

Acquisition Control AW00118303000
96 Basler racer GigE

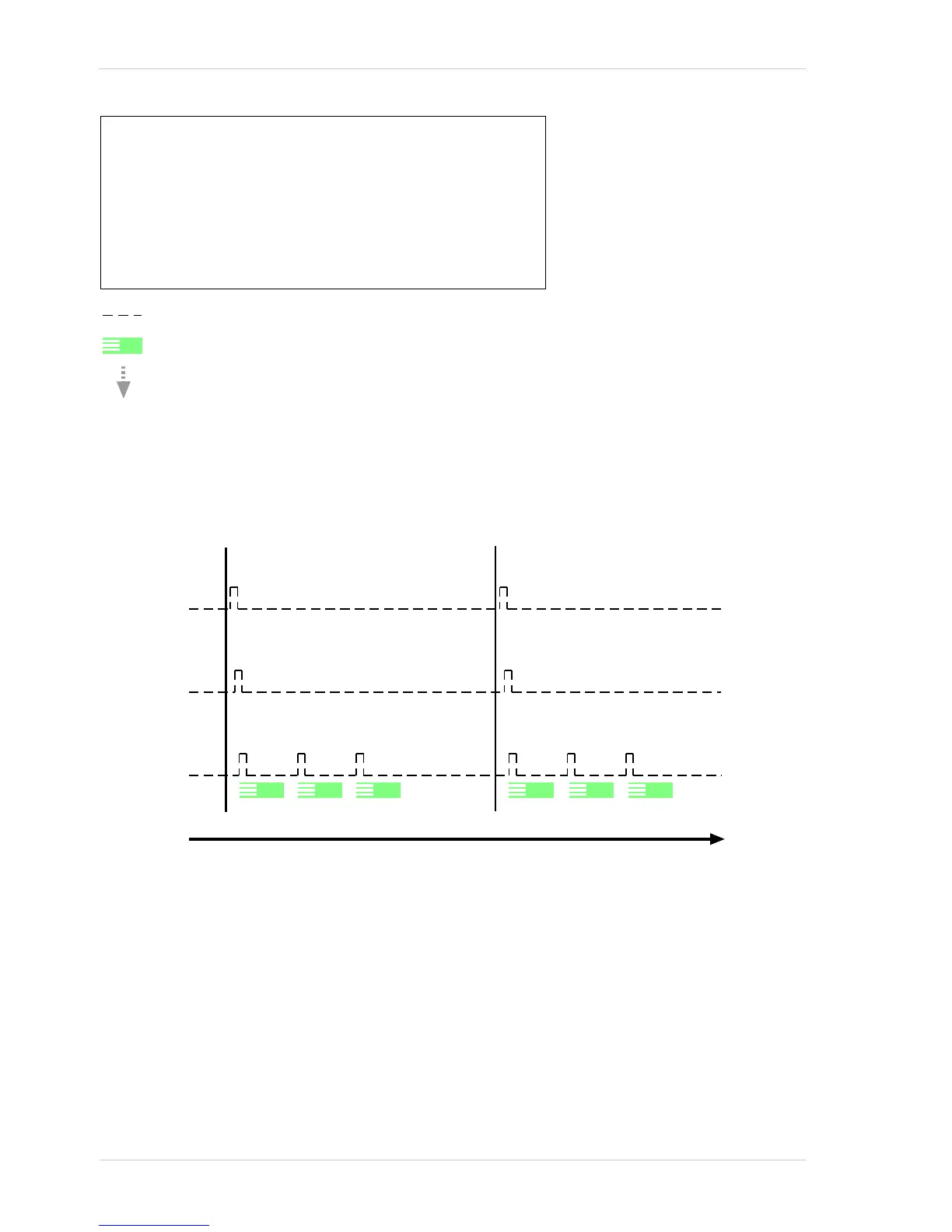

Fig. 28: Use Case 1 - Single Frame Mode with Acquisition Start, Frame Start, and Line Start Triggering
Set to Off
Time
Acquisition
start
command
Acquisition
start
command
Acquisition start
trigger signal
Frame start
trigger signal
Line start
trigger signal
Settings:
Acquisition Mode = Single Frame
Acquisition Start Trigger Mode = Off
Frame Start Trigger Mode = Off
Lines Per Frame (Height) = 3
Line Start Trigger Mode = Off
= trigger signal internally generated by the camera; trigger wait signal is not available
= line exposure and readout; white horizontal ruling: period used for exposure and exposure overhead
= frame transmitted
