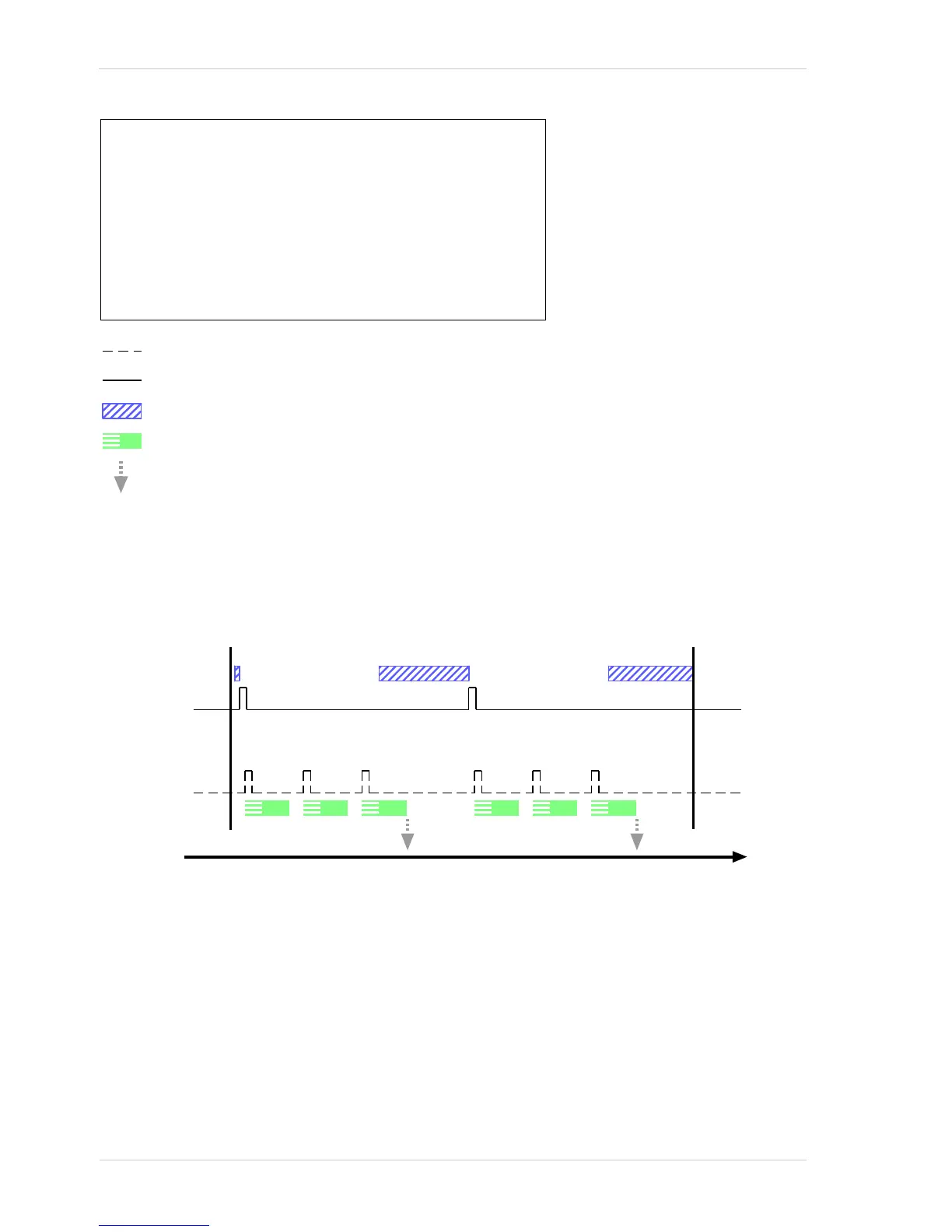

Fig. 30: Use Case 3 - Continuous Frame Mode with Acquisition Start and Line Start Triggering Set to Off and Frame
Start Triggering Set to On
Time
Acquisition
start
command
Acquisition
stop
command
Frame start
trigger signal
Line start
trigger signal
Settings:
Acquisition Mode = Continuous Frame
Acquisition Start Trigger Mode = Off
Frame Start Trigger Mode = On
Frame Start Trigger Source = Line 2
Frame Start Trigger Activation = Rising Edge
Lines Per Frame (Height) = 3
Line Start Trigger Mode = Off
= trigger signal internally generated by the camera; trigger wait signal is not available
= trigger signal applied by the user
= camera is waiting for a frame start trigger signal
= line exposure and readout; white horizontal ruling: period used for exposure and exposure overhead
= frame transmitted
