RPC SERIES OWNER’S MANUAL

CABLING

________________________________________________________________________________

CABLING

RJ-45 CABLES AND ADAPTERS

IMPORTANT:

All RPC models have an RJ-45 port for

connecting to a local EIA-232 device such as a computer terminal

or external modem. Most serial computers do not have RJ-45

connections; therefore, an adapter is provided with this unit to

convert from a DE-9 connector to an RJ-45 connector (BayTech

Part No. 9FRJ45PC-1). An adapter to convert from a DB-25

connector to an RJ-45 connector is also available from BayTech,

upon request (BayTech Part No. 25FRJ45PC-1).

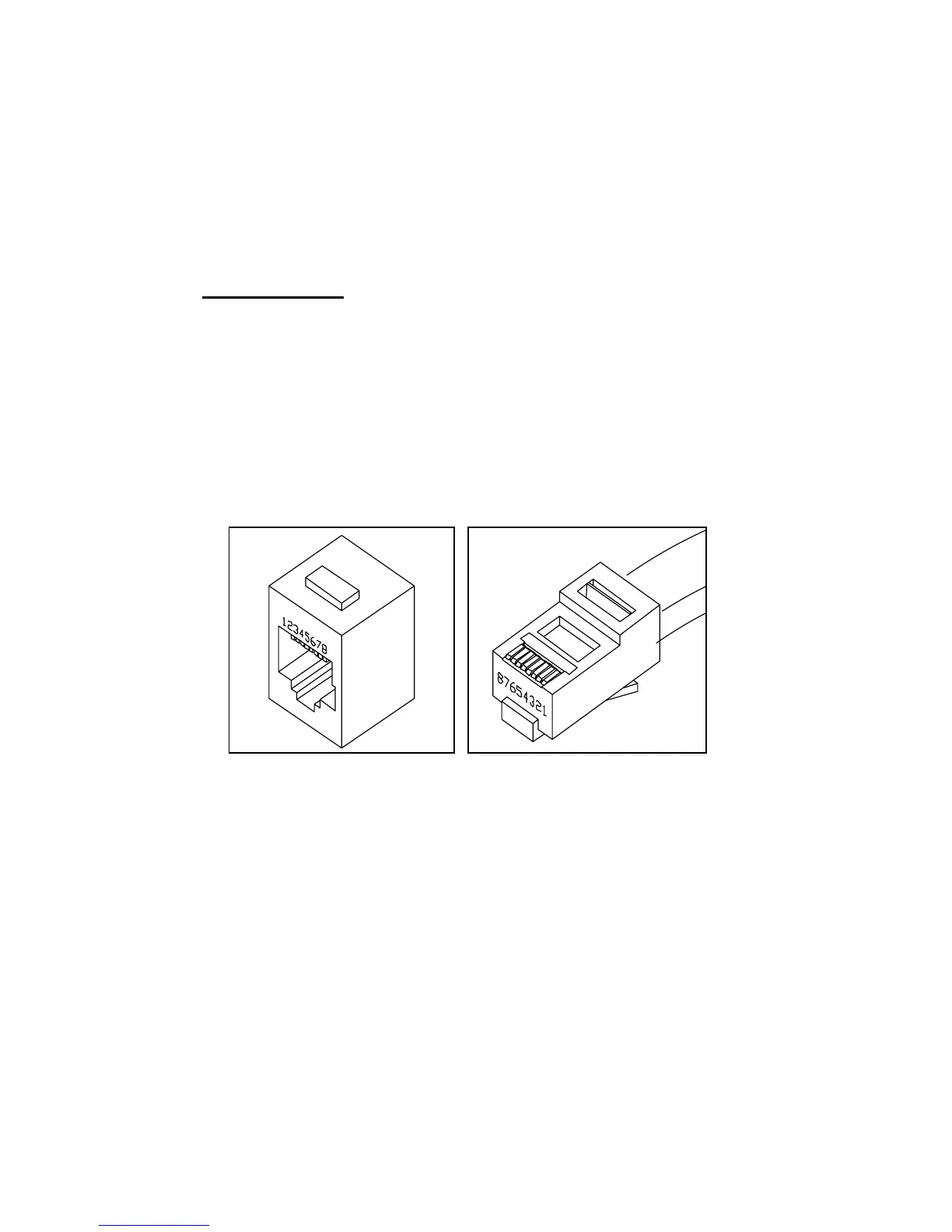

Figure 2: RJ-45 receptacle Figure 3: RJ-45 plug
