RPC SERIES OWNER’S MANUAL
RPC SERIES QUICK START (RPC-2 MD01 AND RPC-2 RDR)
________________________________________________________________________________
5
RPC-2 MD01 AND RPC-2 RDR QUICK START
Local access
Using the 9FRJ45PC-1 adapter and the
using EIA-232 serial
RJ08X007 (8-pin crossed) cable, connect the
connection
serial port of your computer to the RJ-45
port labeled “EIA-232.”
Load serial port communications software.
Set serial communications parameters to
9600 bps, 8 data bits, 1 stop bit, and no
parity.
Remote access
using modem
connections
RPC-2 MD01
Using the RJ04X007 (RJ-11) modular cable,
(Internal Modem)
connect either port labeled “LINE” on the
RPC unit to the telco wall jack. Proceed to
“Accessing Main Menu via Modem.”
RPC-2 RDR
Plug the modem’s power supply into
(External Modem)
receptacle number six on the RPC. See
figure 1 below.

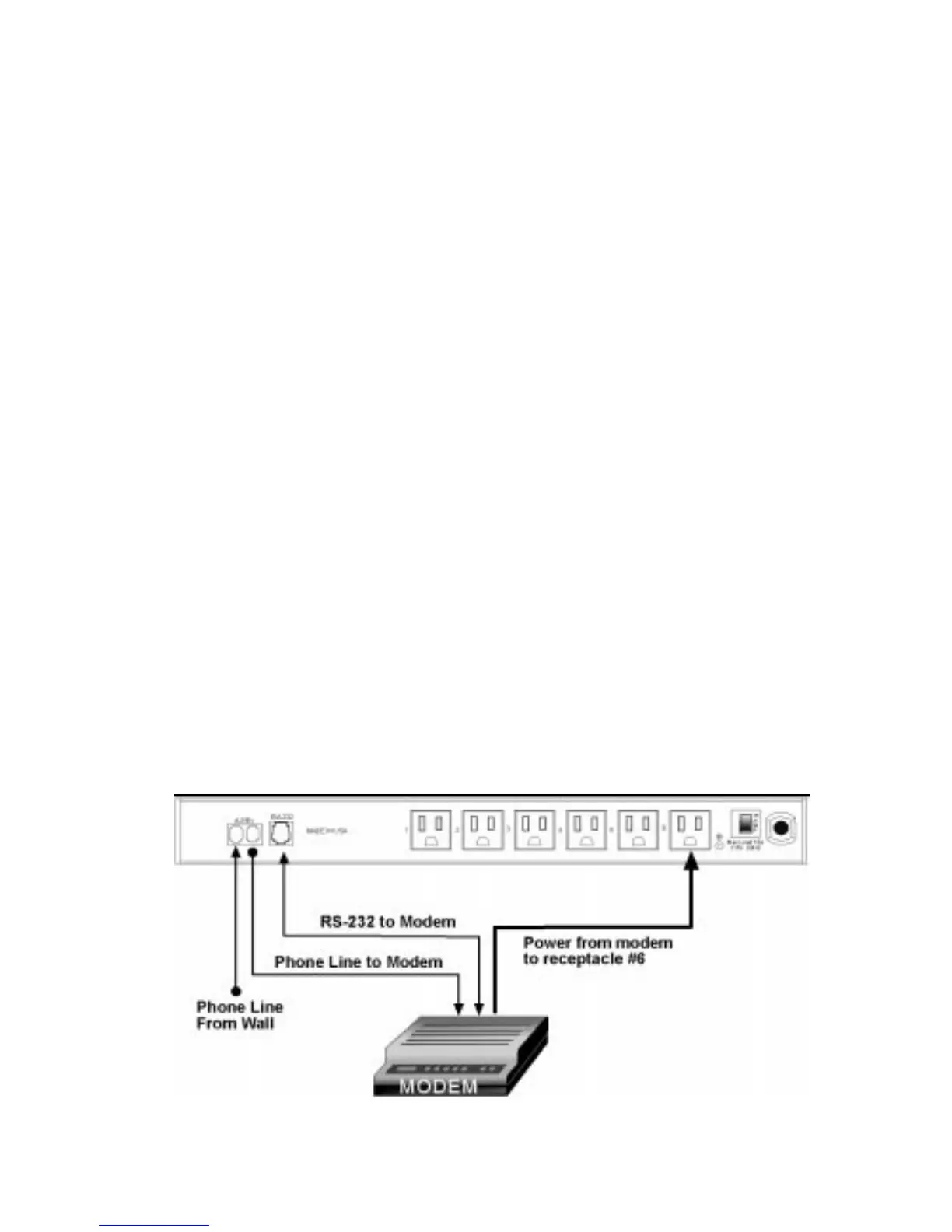

Figure 1: RPC-2 RDR to modem connection
To Next Page
