110 BD FACSCanto Flow Cytometer Reference Manual

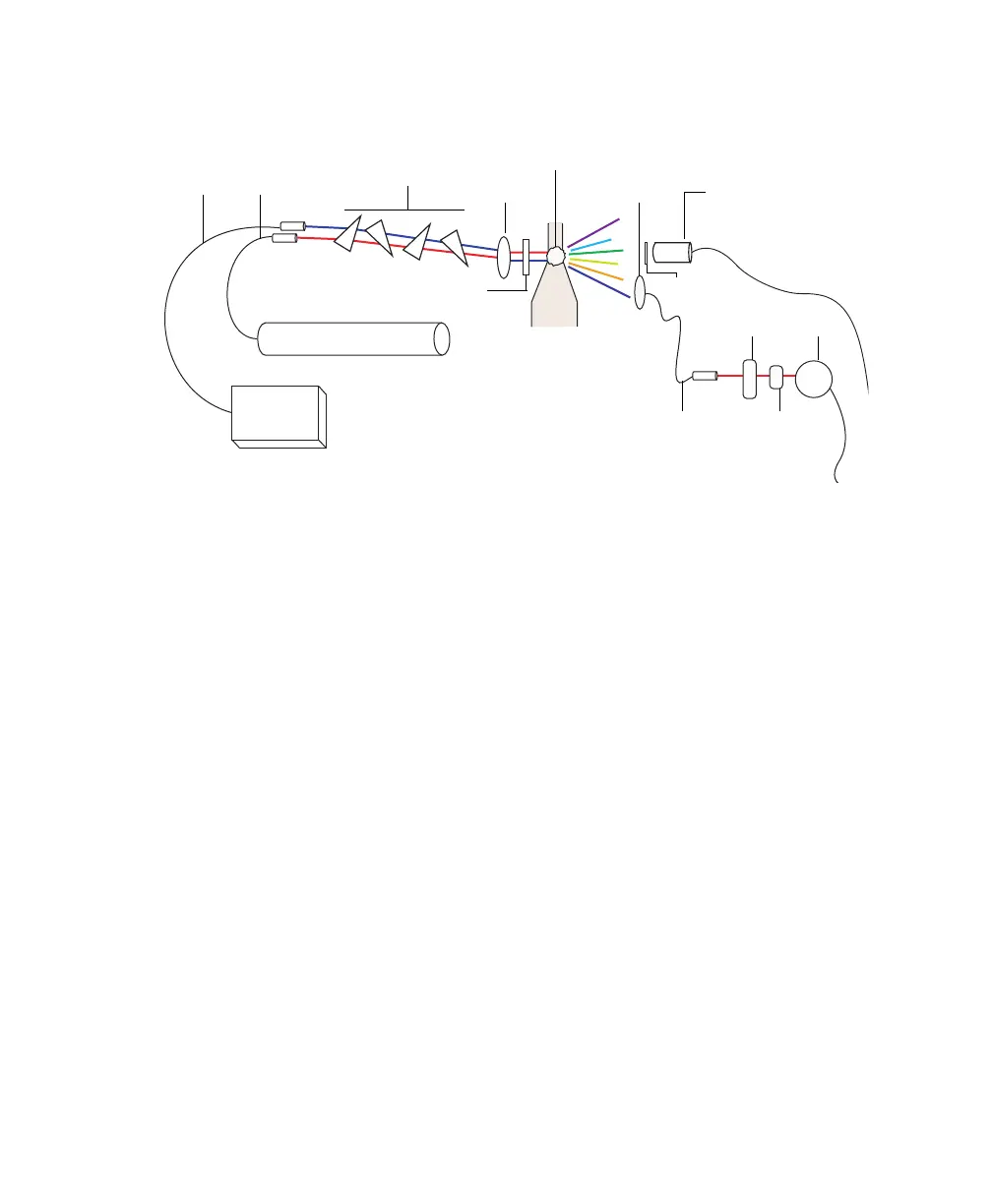

Figure A-3 Light pathway through the BD FACSCanto flow cytometer
fiber optic cables
prisms
steering plate
red laser
blue laser
flow cell
fiber optic
cable
BP
filter
LP
mirror
PMT
detector
obscuration
bar
collecting
lens
forward scatter
diode detector
stained
particle
focusing
lens
