40 BD FACSCanto Flow Cytometer Reference Manual

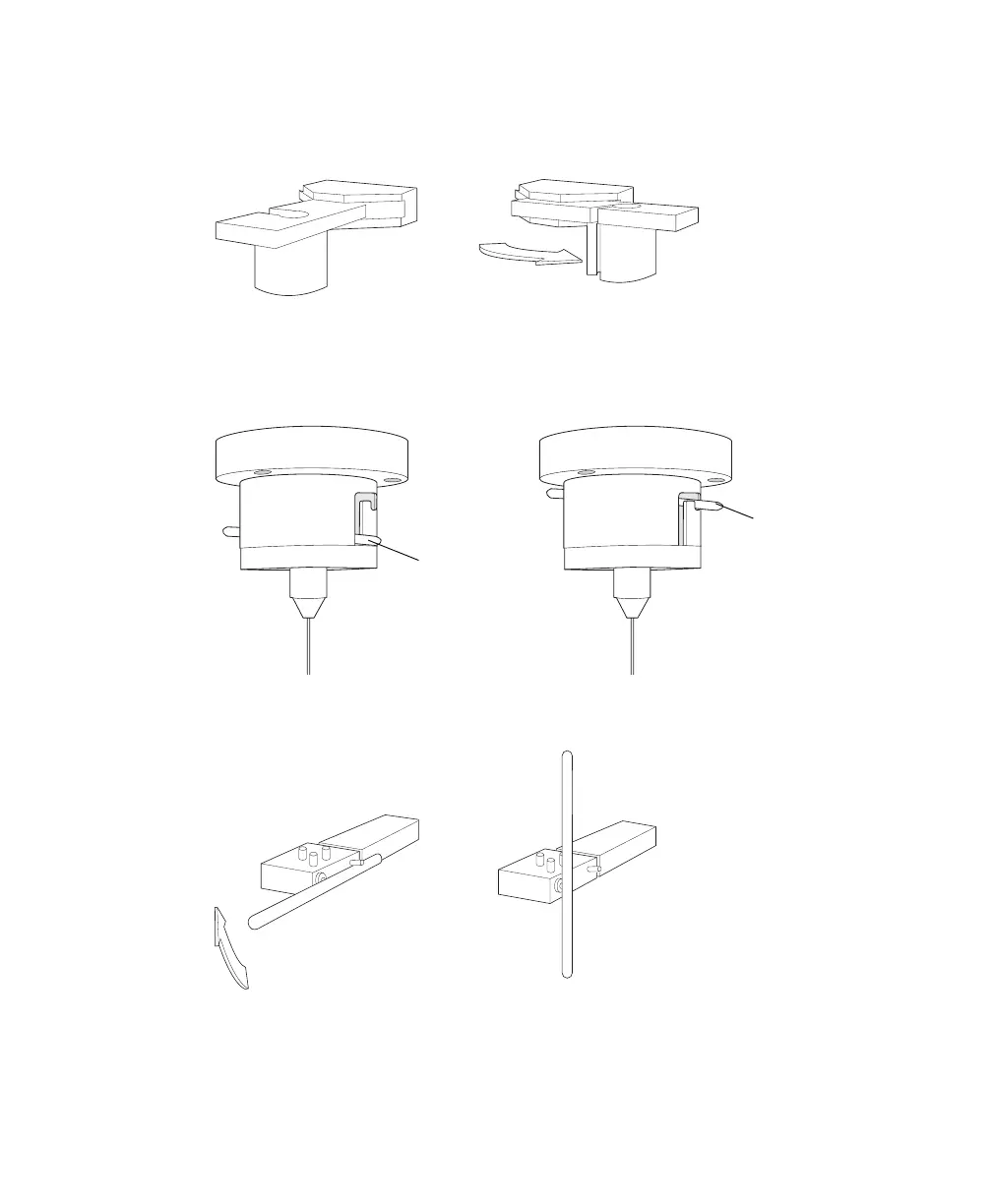

4 Move the tube guide arm all the way back and away from you (in manual
mode, you do not need the tube guide arm).
5 Lift the adapter lever and rotate it into the highest position, as shown in the
following figure.
6 (Optional) Rotate the aspirator arm bar vertically.
You are ready to load tubes manually.
automatic mode
manual mode
adapter lever,
automatic mode
adapter lever,
manual mode
automatic mode manual mode
