Type Plate
The device type is specified by the type plate (on the housing):
Example:

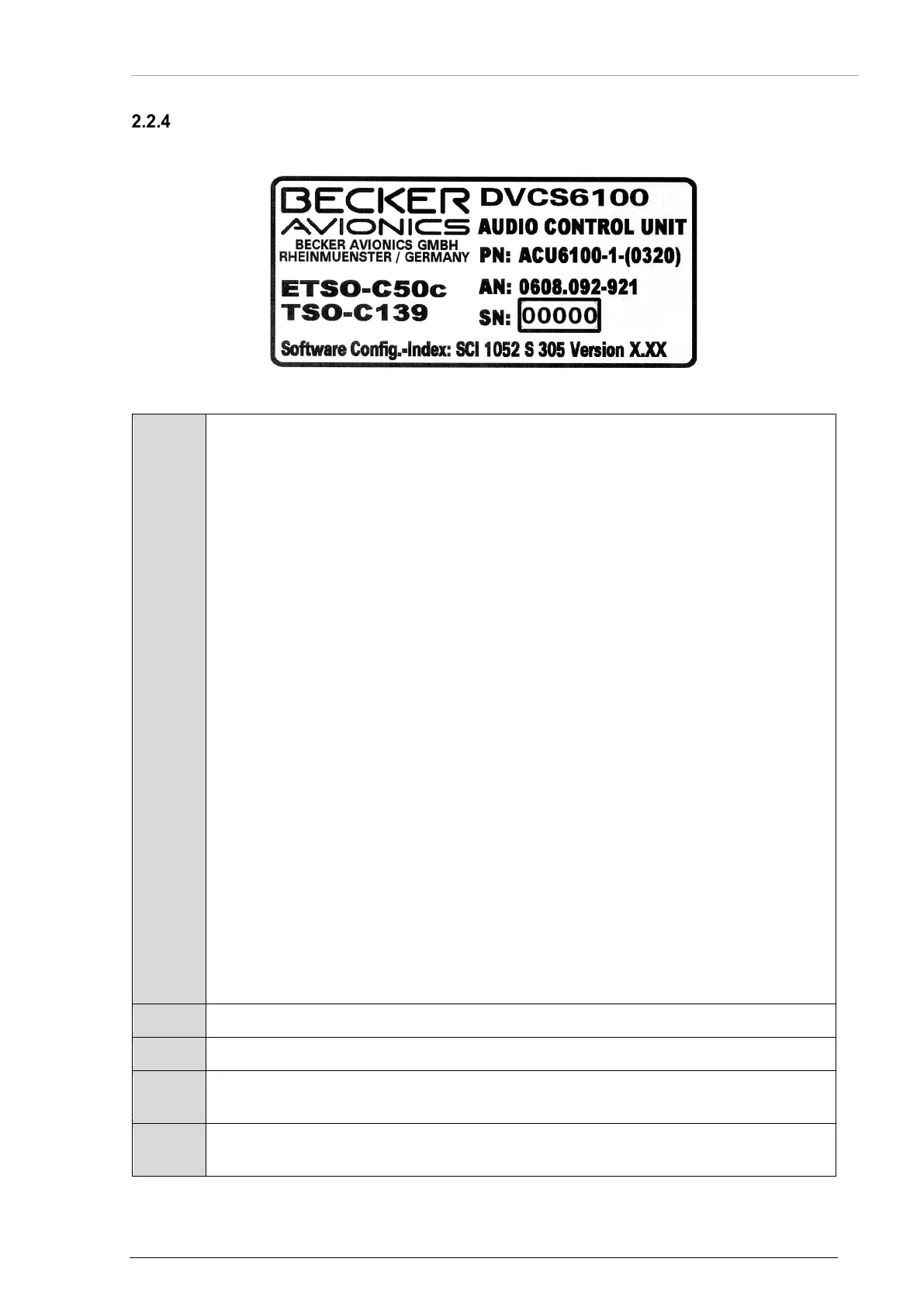

Figure 5: Type plate (example)
Explanation:
PN:
Type designation:
ACU6100 = Single Block Audio Control Unit
Options:
-1-: Not NVIS compliant
-2-: NVIS compliant
(0XXX): Black panel
(1XXX): Black panel, NVIS friendly
(2XXX): Grey panel
(3XXX): Grey panel, blue status LEDs
(5XXX): Black panel, NVIS compliant
(6XXX): Black panel, blue status LEDs
(AXXX): Vertical black panel
(BXXX): Vertical black panel, NVIS friendly,
(CXXX): Vertical grey panel
(X2XX): Standard panel inlay
(X3XX): Blank panel inlay
(X9XX): Blank panel inlay, RX only
(XX0X): Dimming 0...28 V, green
(XX1X): Dimming 0...5 V, green
(XX2X): Dimming 0...28 V, blue white
(XX3X): Dimming 0...5 V, blue white
(XX4X): Dimming 0...28 V, warm white
(XX5X): Dimming 0...5 V, warm white
(XXX0): IC keying on panel
(XXX5): Fixed wing options
SN:
Unique number of the particular device
AN:
Article number
Software:
Refer to the version on the device type plate
Compliance and Certifications:
Refer to the text and logos on the device type plate
