DV64440.03 Issue 09 November 2019 ACU6100 31
2.4 Dimensions
ACU6100
Dimensions mm (inch)

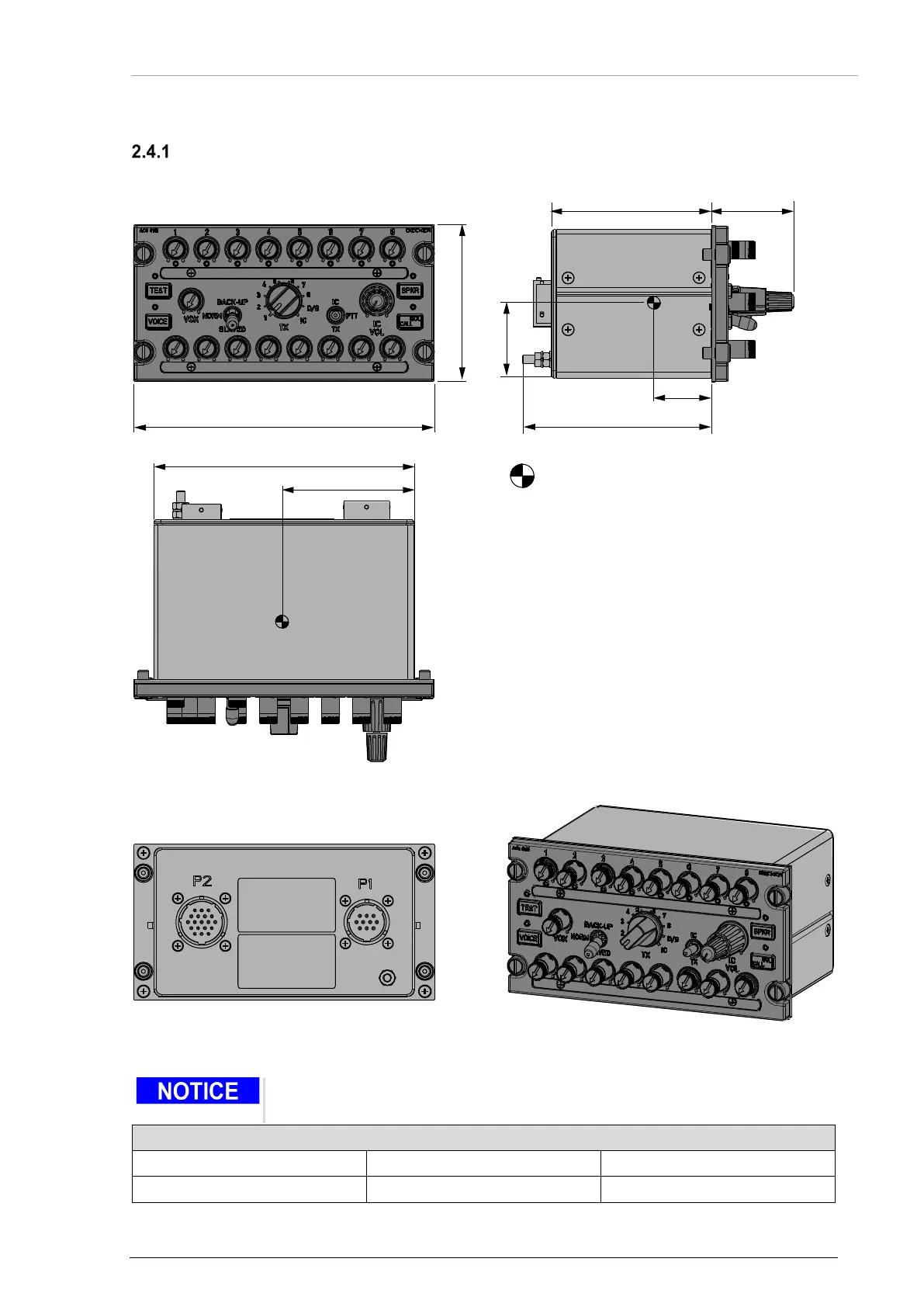

Figure 8: Dimensions ACU6100
"Center of Gravity" for ACU6100 without other connections.
Tolerance: ± 5 mm.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GRAVITY
145.8 (5.7)
126.2 (5)
64 (2.5)
Label
Label
rear side
91.5 (3.6)
28
(1.1)
77.5 (3)
75.8 (3)
36 (1.4)
39.8
(1.6)
