Becker ACU6100 - Control Elements

Operation
Becker Avionics
Device Description
46 ACU6100 DV64440.03 Issue 09 November 2019
Description
Main Function
BACK-UP
Toggle switch (3 locking
positions)
or
Used for the selection of the operation mode:
BACK-UP: Emergency operation.
NORM: Normal operation.
SLAVED: Slaved operation.
Toggle switch (2 locking
positions)
BACK-UP: Emergency operation.
NORM: Normal operation.
M
VOX
Push knob
Used to set VOX function on/off and to set the individual
VOX threshold level.
N
VOICE
key
Used to set the ident filter on/off for the configured
RX-channels.
O
VOICE LED
Status LED (green)
LED on: Voice filter is started.
LED off: Voice filter is off.
P
depends on variant
TEST
Key
or
Used to start the IBIT.
MKR MUTE
Key
Used to start the marker mute function.
Q
Test LED
Status LED (yellow)
LED on: Self-test in progress.
LED flashes: An error was found.

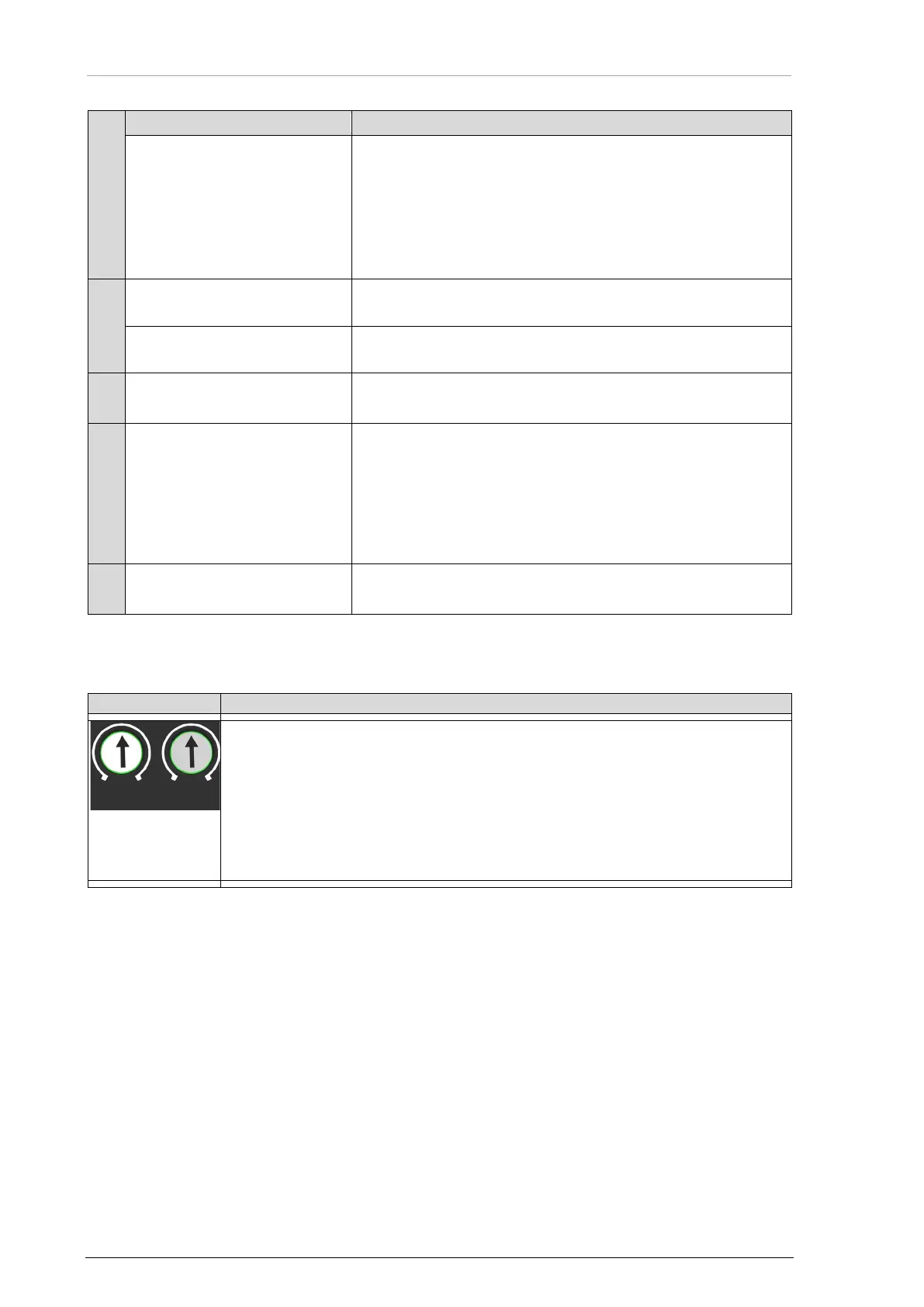

3.2.6.1 Control Elements
Push knobs:
released - locked
Push knobs
• A knob/channel is released when it is in the upper position and can be
turned.
o The knob is illuminated.
• The knob/channel is out of function when it is in the lower position.
• An arrow on top of each knob helps the user to adjust the volume of the
channels.
