Installation and Operation
DV64440.03 Issue 09 November 2019 ACU6100 29
ACU6100 - Gravo Plate Installation

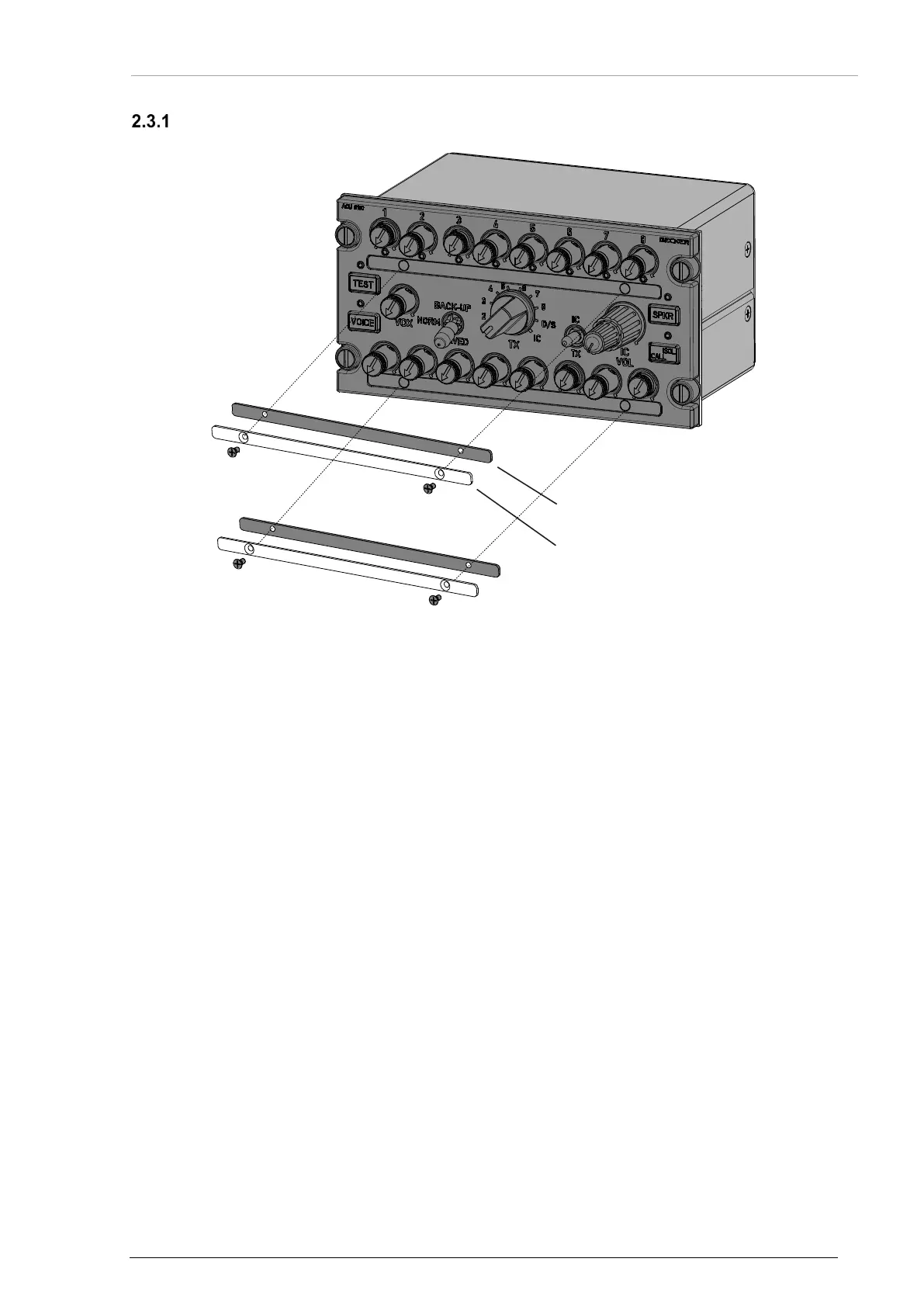

Figure 6: ACU6100 - Gravo Plate Installation
Notice:
The gravo plates which identify the function of TX and RX knobs are prepared for customer individual
configuration, therefore they must be bought separate from the ACU6100.
The ACU6100 comes with installed blank plates covered by transparent plastic strips. Before installation
of an ACU6100 the blank plates must be replaced by the customized gravo plates.
Procedure:
• Remove the left and right screw from each plate.
• Replace the blank plates by the customized gravo plates.
• Tighten carefully the left and right screws on both plates.
o Note: Do not exceed a torque of 0.18 Nm.
• Each variant of the gravo plate has an individual part number for identification.
• For information of available predefined gravo plates, or new gravo plates, please contact
Becker Avionics. For department and addresses, please see contact info page 2.
Gravo plate
T
ransparent strip
