CUBE® CONTROLLER
1MANUL964 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 3-1

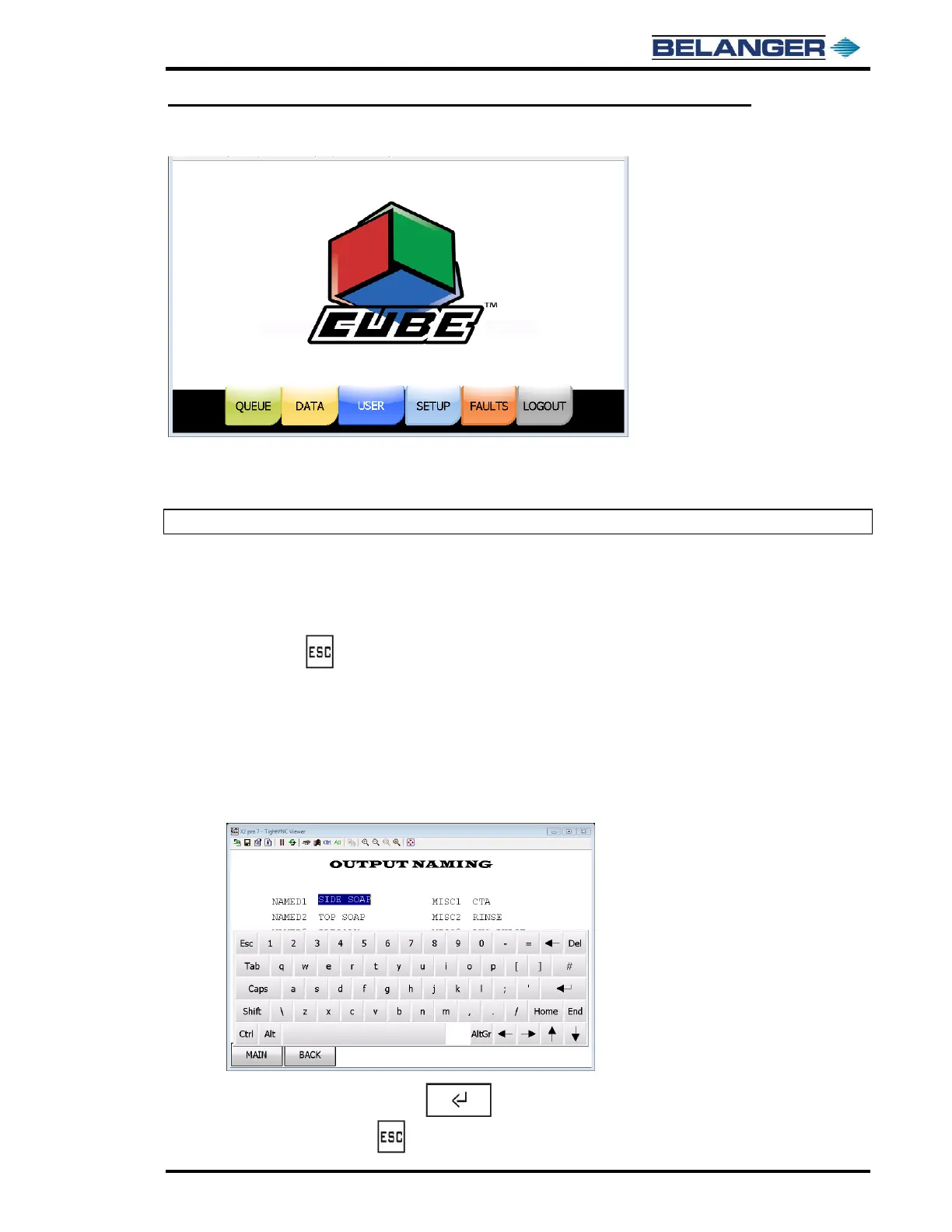

Chapter 3 General Methods of Using Operator Interfaces
X2 PRO
The X2 PRO is an Operator interface that utilizes “Touch-Screen” technology. User makes selections and enters data by
touching the appropriate positions on the screen. Due to the ease in which a stylus can be misplaced, we recommend that
you use the back end of an ink pen or a stylus.
Note: It is not recommended that the screen be operated with metal objects such as keys or screwdrivers.
Fields encountered on this unit are as follows:
Screen Navigation
The Screen Navigation fields are typically located at the bottom of the screen. These fields typically have frames
(boxes) around words. Pressing these fields will change current screen to the corresponding screen. Some screens
require pressing to return to the previous screen.
Toggles
These fields toggle between two values when pressed. Typical data in these fields is YES/NO, ENABLED/DISABLED
and choosing between two different numbers. These fields may be just the changeable value or the entire line.
Numeric
When a field is selected that is Numeric the following Data Entry Screen will appear.
When done entering the data, press to return to the original screen. To leave the Data Entry screens
without changing data, press .
